Repair Procedures
Replacement 1.
Disconnect negative (-) battery terminal.
2.

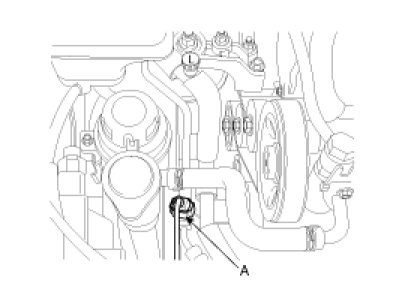

Disconnect A/C pressure transducer connector(A) (3P) from wiring harness.
3.
Remove the A/C pressure transducer.
CAUTION: Take care that liquid suction pipe is not bent.
4.
Installation is the reverse order of removal.
Tightening torques :10 - 12 N.m (1.02 - 1.22 kgf.m, 7.4 - 8.8 lb-ft)
