Axle Shaft

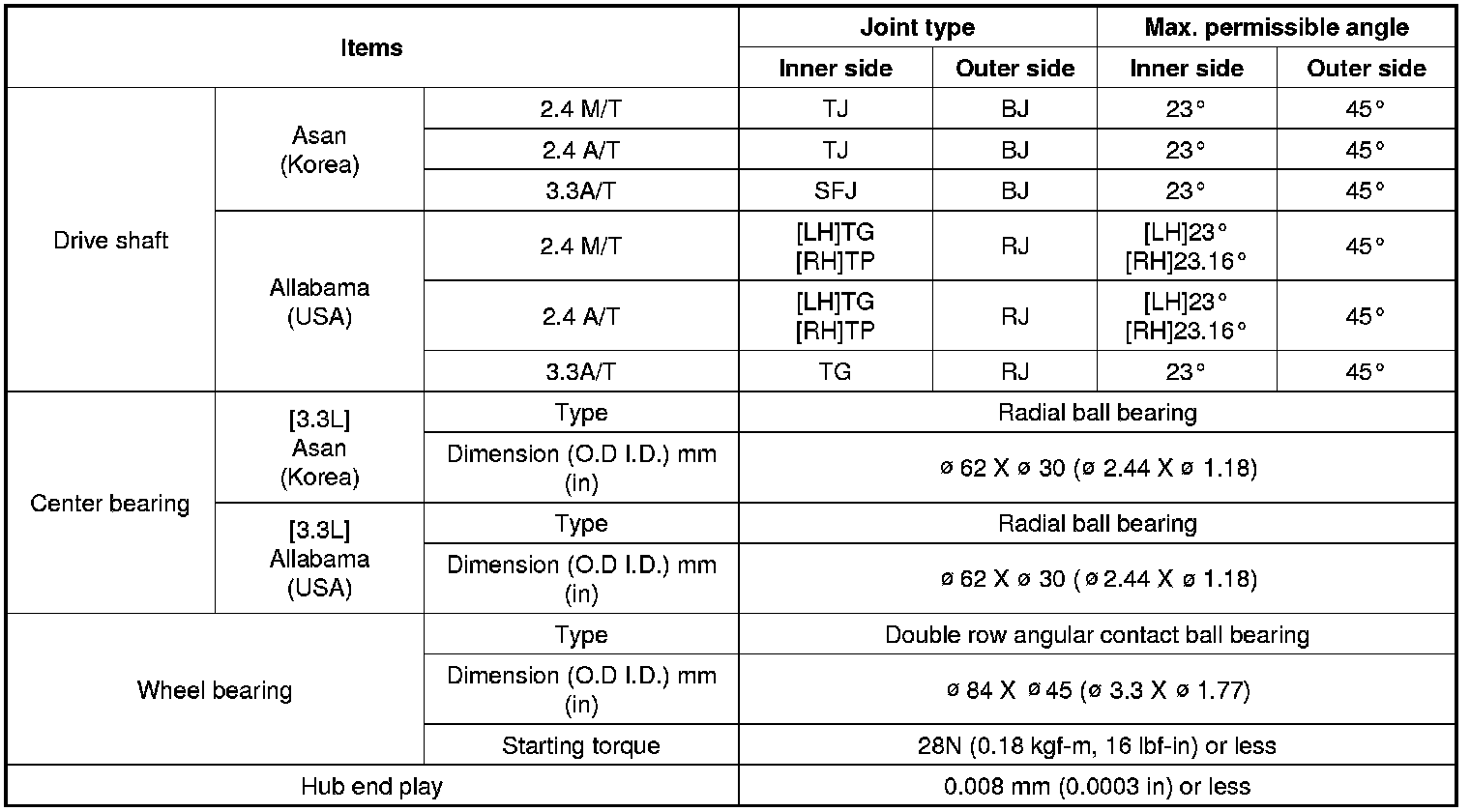

SpecificationsDriveshaft-BJ : Birfield Joint (Asan)
-TJ : Tripod Joint (Asan)
-RJ : Rzeppa Joint (Alabama)
-SFJ : Shudderless Free ring Joint (Asan)
-TP : Tripod Joint (Alabama)
-TG : Tri Glide Joint (Alabama)

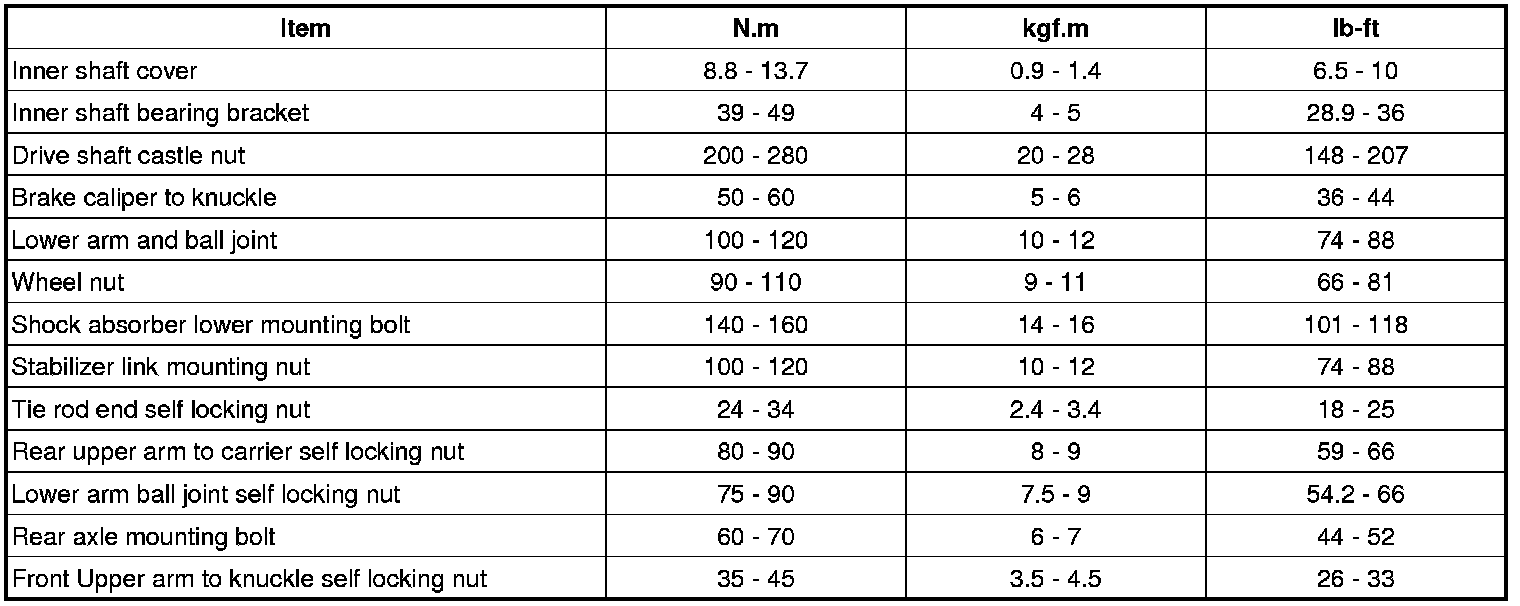

Tightening TorquesCAUTION:Replace self-locking nuts with new ones after removal.
