Cover Replacement
Cover ReplacementNOTE: -
When prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
-
Take care not to scratch the crash pad, body and other related parts.
-
Put on gloves to protect your hands.

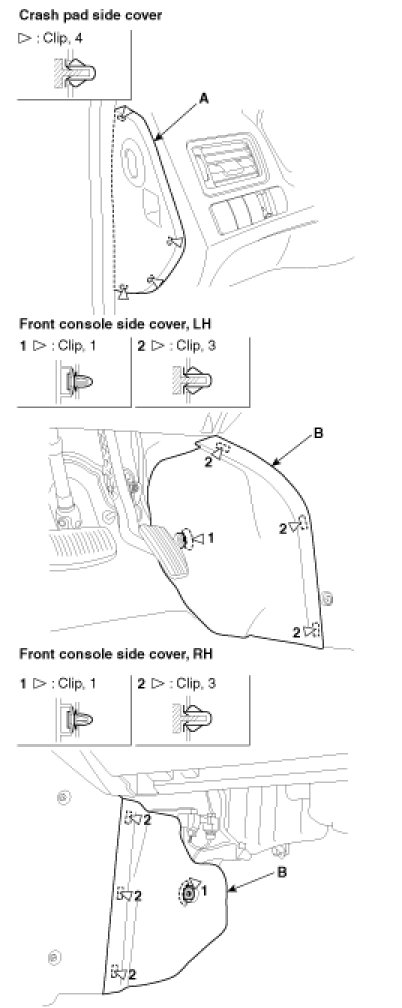

Remove the crash pad side cover (A), front
console side cover (B).
