Power Door Lock Switch

Inspection

Driver's Door Lock Switch Inspection
1. Remove the driver's door trim panel. (see BD group - front door)
2. Disconnect the 14P connector from the door lock switch assembly.




3. Check for continuity between the terminals in each switch position according to the table.





Passenger's Door Lock Switch Inspection
1. Remove the assist door trim panel. (see BD group - front door)

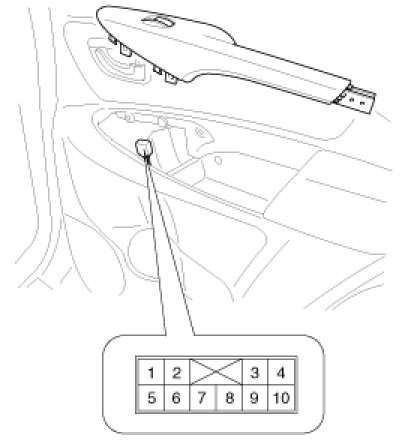

2. Disconnect the 10P connector from the door lock switch assembly.




3. Check for continuity between the terminals in each switch position according to the table.
