Front Seat





Seat Back Frame Replacement
1. Remove the seat back panel .
2. Remove the headrest guide .
3. Remove the seat back cover and pad from the frame.

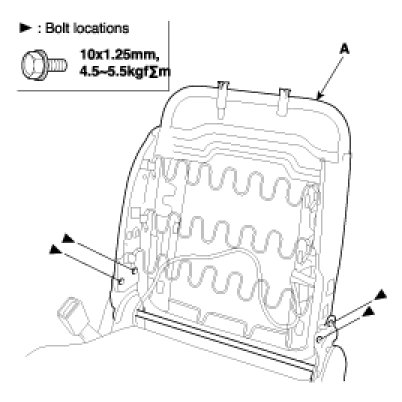

4. Loosen the mounting bolts,then remove the seat back frame(A).

NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Before service, be fully aware of precautions and service procedure relevant to air bag
.





5. Installation is the reverse of removal.

NOTE:
- Be sure to perform PODS re-zero with Hi-Scan (pro) after replacing parts(passenger's)
