Fuel Pump: Service and Repair





Removal

WARNING:
When lifting up or down vehicle, be sure to place blocks between vehicle and lifter to prevent fuel tank from being damaged.




1. Preparation
(1) Remove the rear seat cushion .
(2) Open the service cover (A).




(3) Disconnect the fuel pump connector (A).




(4) Start the engine and wait until fuel in fuel line is exhausted.
(5) After engine stalls, turn the ignition switch to OFF position.

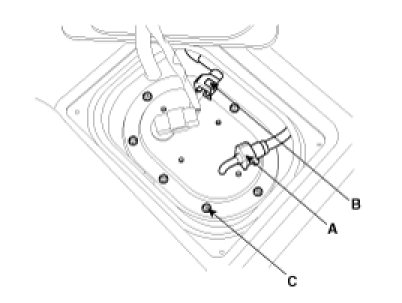

2. Disconnect the fuel feed tube quick-connector (A), and the suction tube quick-connector (B).




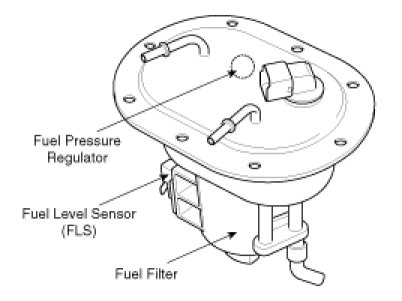

3. Remove the fuel pump installation bolts (C) and remove the fuel pump assembly.






Installation

Installation is reverse of removal.

Fuel pump installation bolts:
2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft)


CAUTION:
When installing the fuel pump module, be careful not to get the seal-ring entangled.
