Replacement
Replacement 1.

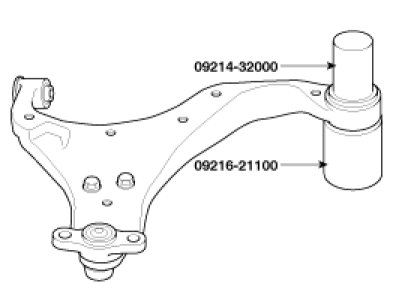

Using the special tools(09214-32000 & 09216-211000), remove the bushing from the lower arm.
2.
Apply soap solution to the following parts.
A.
Outer surface of the bushing.
B.
Inner surface of the lower bushing mounting part.
3.
Using the special tools(09214-32000 & 09216-21100), install the bushing on the lower arm.

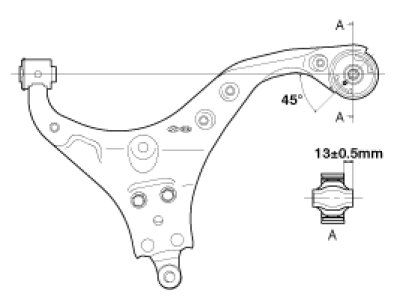

CAUTION: Insert bush in the orientation shown.
Separation force is over 800Kg
