Repair Procedures





Removal

1. Drain the differential gear oil.
2. Remove the rear drive shaft.
3. Remove the propeller shaft.

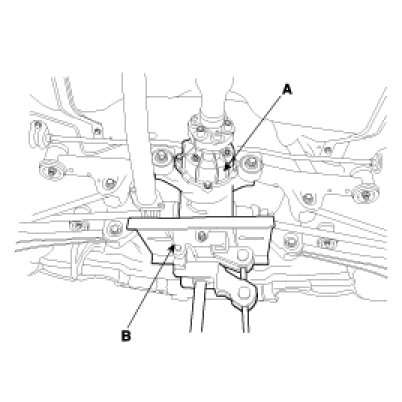

4. Support the differential assembly(B) with the jack(A).

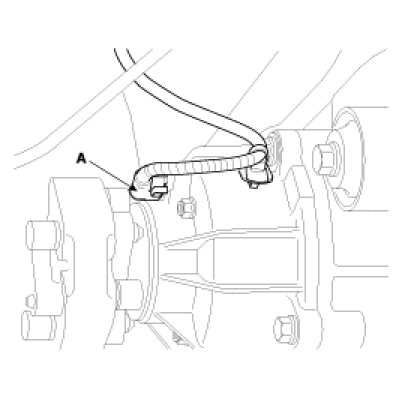

5. Disconnect the coupling control connector(A).

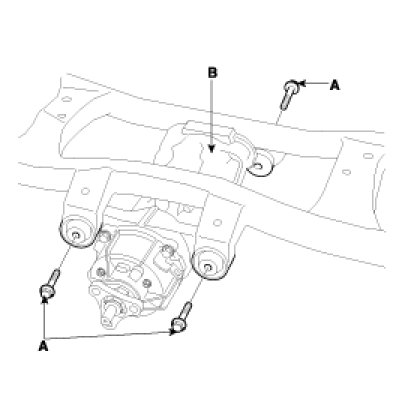

6. After loosening the differential mounting bolts(A), remove the differential(B).

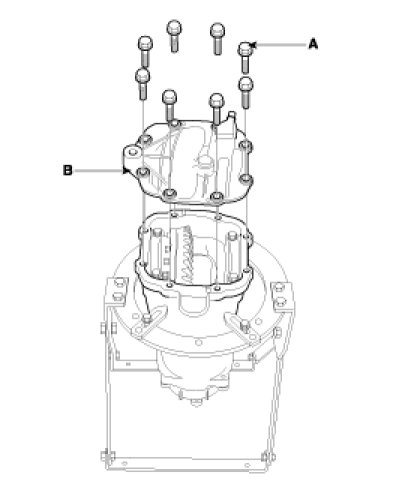

7. After loosening the cover bolts(A), remove the differential cover(B).





Installation

1. After applying liquid gasket, install the differential cover(B), and install the mounting bolts(A).

Tightening torque
40 - 50Nm (400 - 500Kgf-cm, 29.5 - 36.9lbf-ft)





2. After installing the differential(B), install the mounting bolts(A).

Tightening torque
90 - 120Nm (900 - 1200Kgf-cm, 66.4 - 88.5lbf-ft)





3. Using the transaxle jack(B), install the differential assembly(A).




4. Connect the coupling control connector(A).




5. Install the propeller shaft.
6. Install the rear drive shaft.
7. Fill the gear oil.

Specified lubricant
Hypoid gear oil (GL-5, SAE 80W/90)

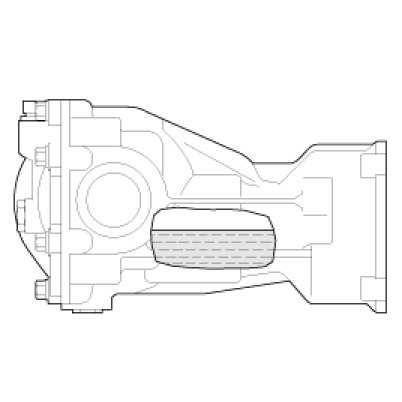

Oil quantity : Fill the reservoir to the plug hole
(About 0.75 - 0.80L)
