Repair Procedures (M5GF1)

Removal

1. Remove the 4WD coupling bolts (A-3EA) mounted to the rear propeller shaft(B).




2. Using a flat tool(A), separate the propeller shaft(C) from 4WD coupling(B).








3. Remove the rear axle (B-Differential carrier) bolts mounted to the 4WD coupling(A) by a socket(C).

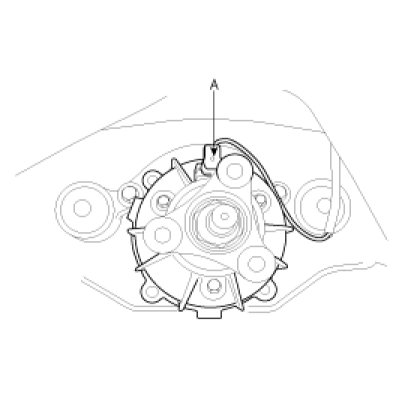

4. Remove the electric magnetic clutch connector(A).




5. Using a flat tool(A), separate the 4WD coupling assembly(B) from the rear differential carrier(C).

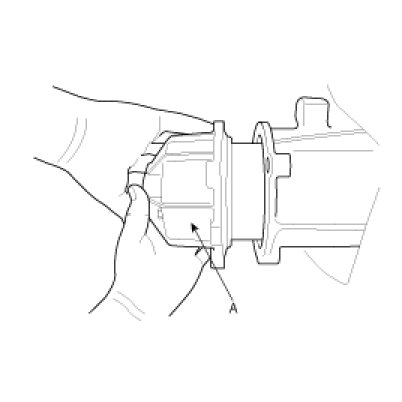

6. Remove the 4WD coupling assembly(A).






Installation

Installation is the reverse of the removal.
