Rear Door
Power Window Motor Replacement 1.
Remove the rear door trim .
2.

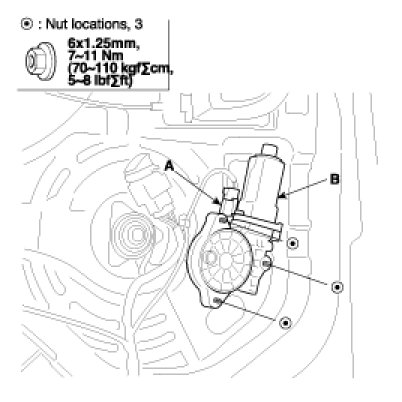

Disconnect the
power window motor connector (A).
3.
After loosening the mounting nut, remove the
power window motor (B).
4.
Installation is the reverse of removal.
NOTE: -
Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
-
Adjust the position of the glass as necessary.
