Rear Wiper Motor

Removal

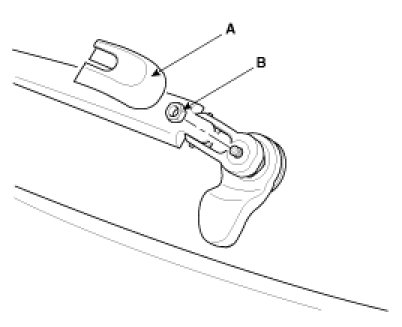

1. Detach the wiper cap(A), then remove the rear wiper arm after removing a nut(B).





Tightening torque
Nut(B) : 14 - 17 Nm (140 - 170 kgf-cm, 10.1 - 12.3 lbf-ft)


2. Remove the handle(B) after removing a nut(A).





Tightening torque
Nut(A) : 10 - 13 Nm (100 - 130 kgf-cm, 7.2 - 9.4 lbf-ft)

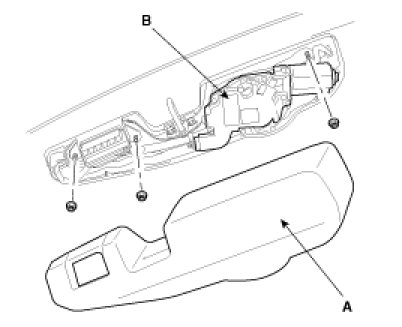

3. Open the tailgate glass then remove the rear wiper motor cover(A).
4. Disconnect the rear wiper motor connector then remove the rear wiper motor(B) after removing 3 nuts.





Tightening torque
Nut : 14 - 17 Nm (140 - 170 kgf-cm, 10.1 - 12.3 lbf-ft)


5. Installation is the reverse of removal.

Installation

1. Install the rear wiper arm and blade to the specified position.





** Specified position : The first deicer line from bottom of the rear window.

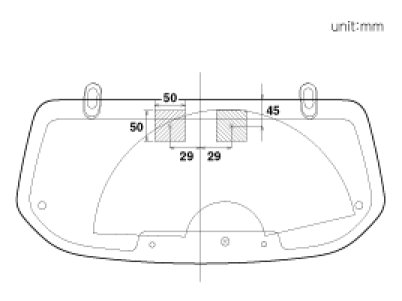

2. Set the rear washer nozzle on the specified spray position.
