Cabin Air Filter / Purifier: Service and Repair

Replacement

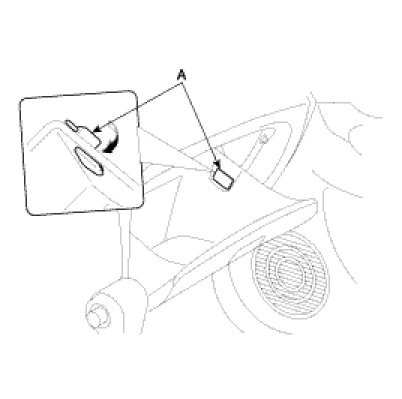

1. Open the glove box, remove the glove box stopper(A) in the lower crash pad(assist seat side), and completely lower the glove box.

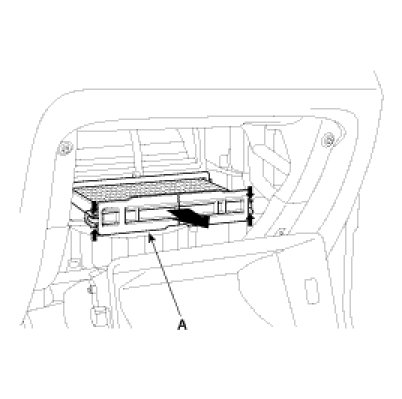

2. Remove the A/C air filter assembly(A).

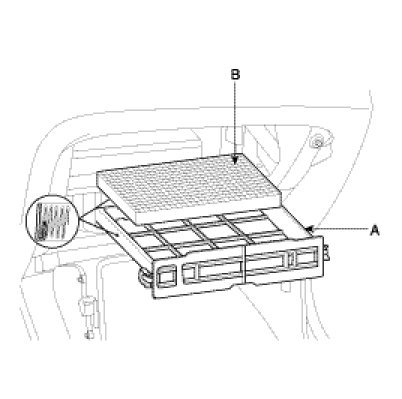

3. Remove the A/C air filter(B) from the filter housing(A).
Replace the A/C air filter according to the maintenance schedule.

4. Install in the reverse order of removal.
Make sure that there is no air leaking out of the blower unit.
