Pinout Values and Diagnostic Parameters

ENGINE CONTROL MODULE (ECM)

ECM HARNESS CONNECTOR

ECM Harness Connector:

ECM TERMINAL FUNCTION

ECM Terminal Function - Connector (C30-1):

ECM Terminal Function - Connector (C30-2) (Part 1):

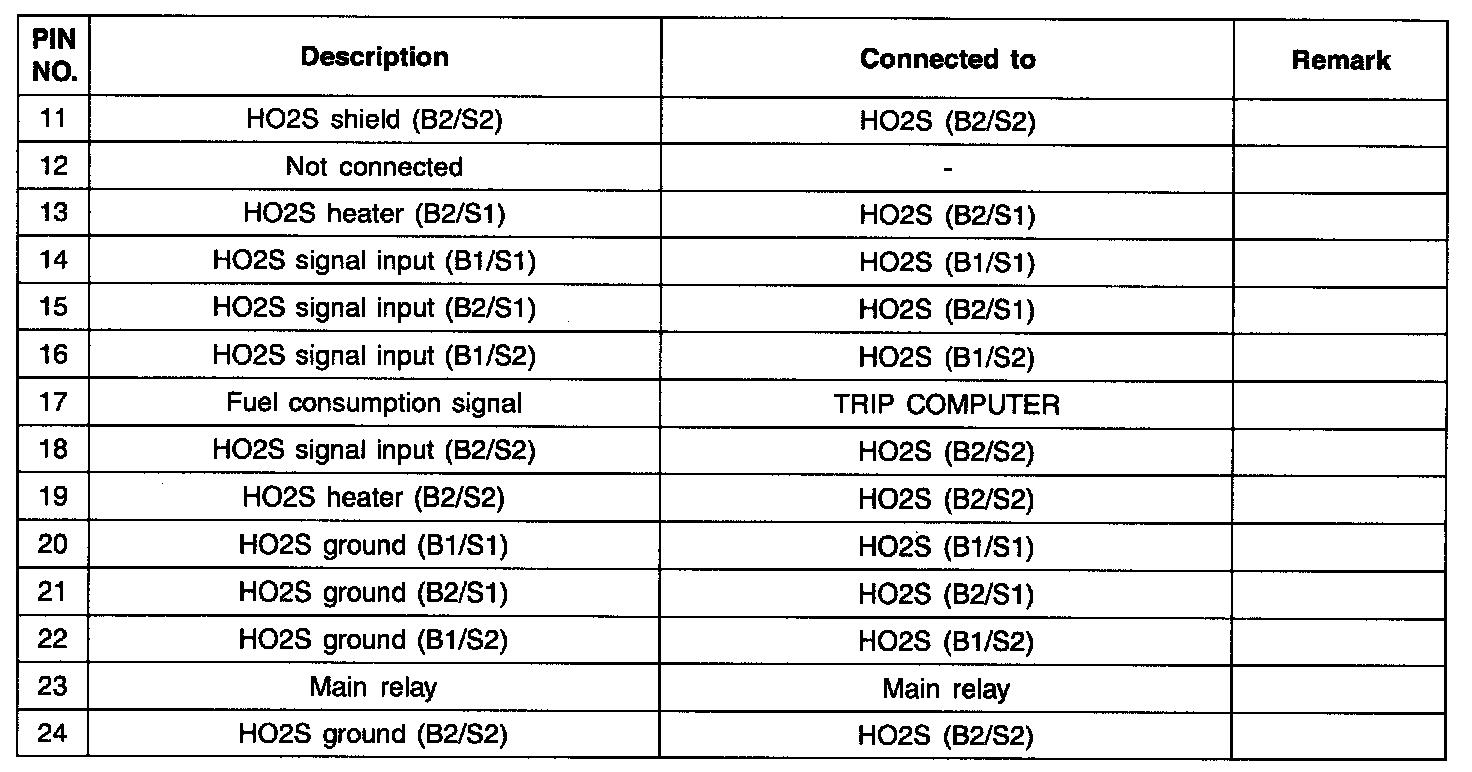

ECM Terminal Function - Connector (C30-2) (Part 2):

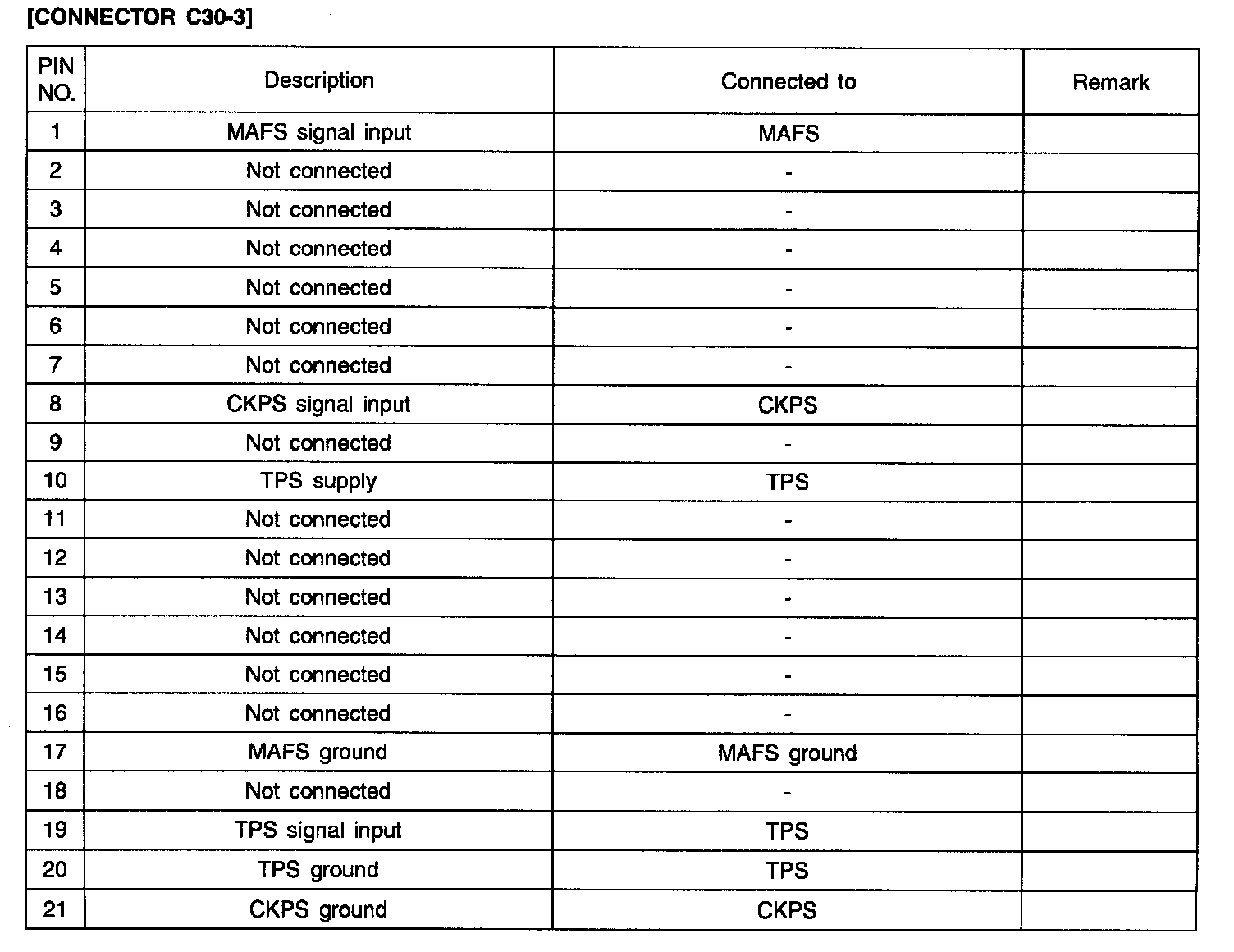

ECM Terminal Function - Connector (C30-3) (Part 1):

ECM Terminal Function - Connector (C30-3) (Part 2):

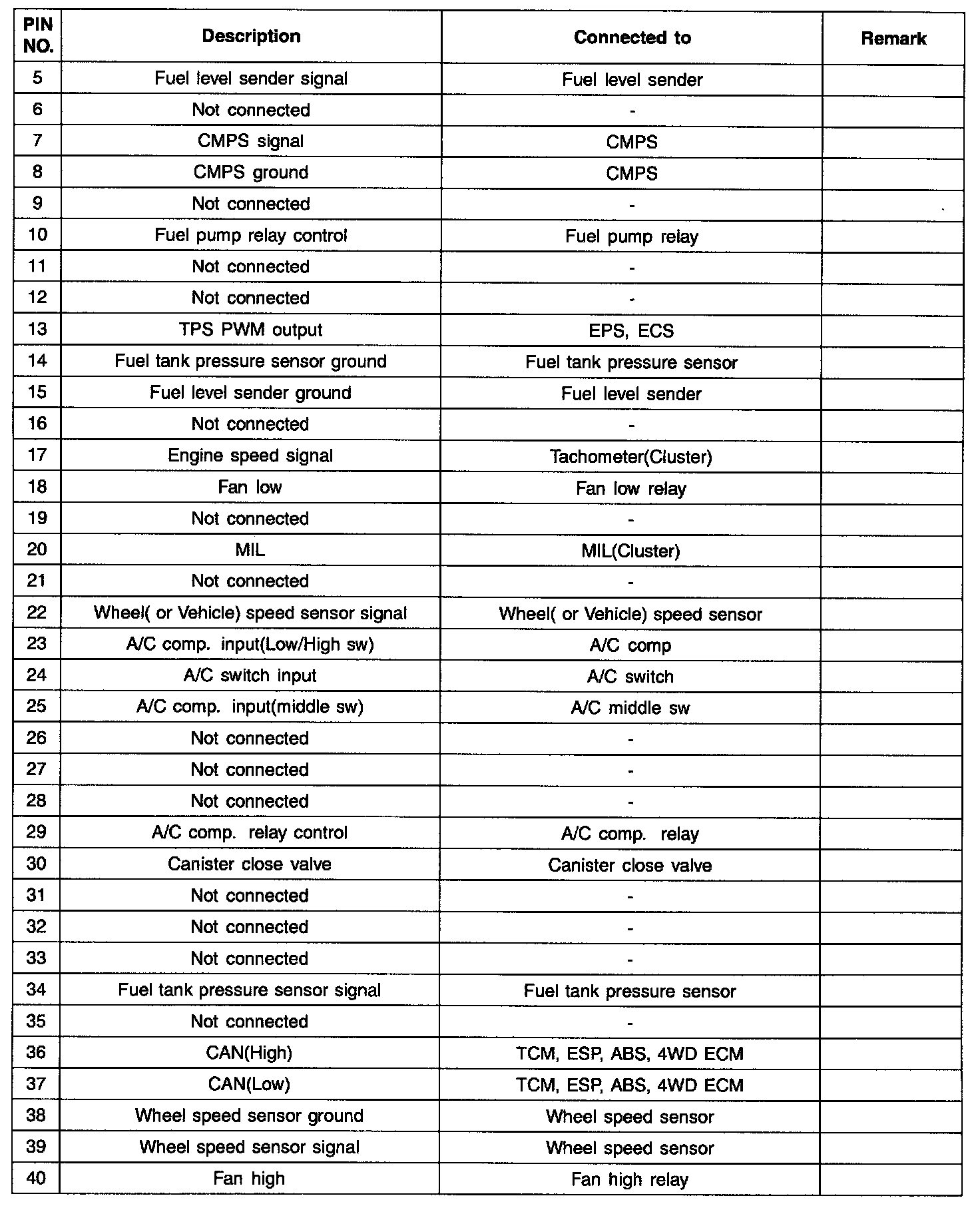

ECM Terminal Function - Connector (C30-4) (Part 1):

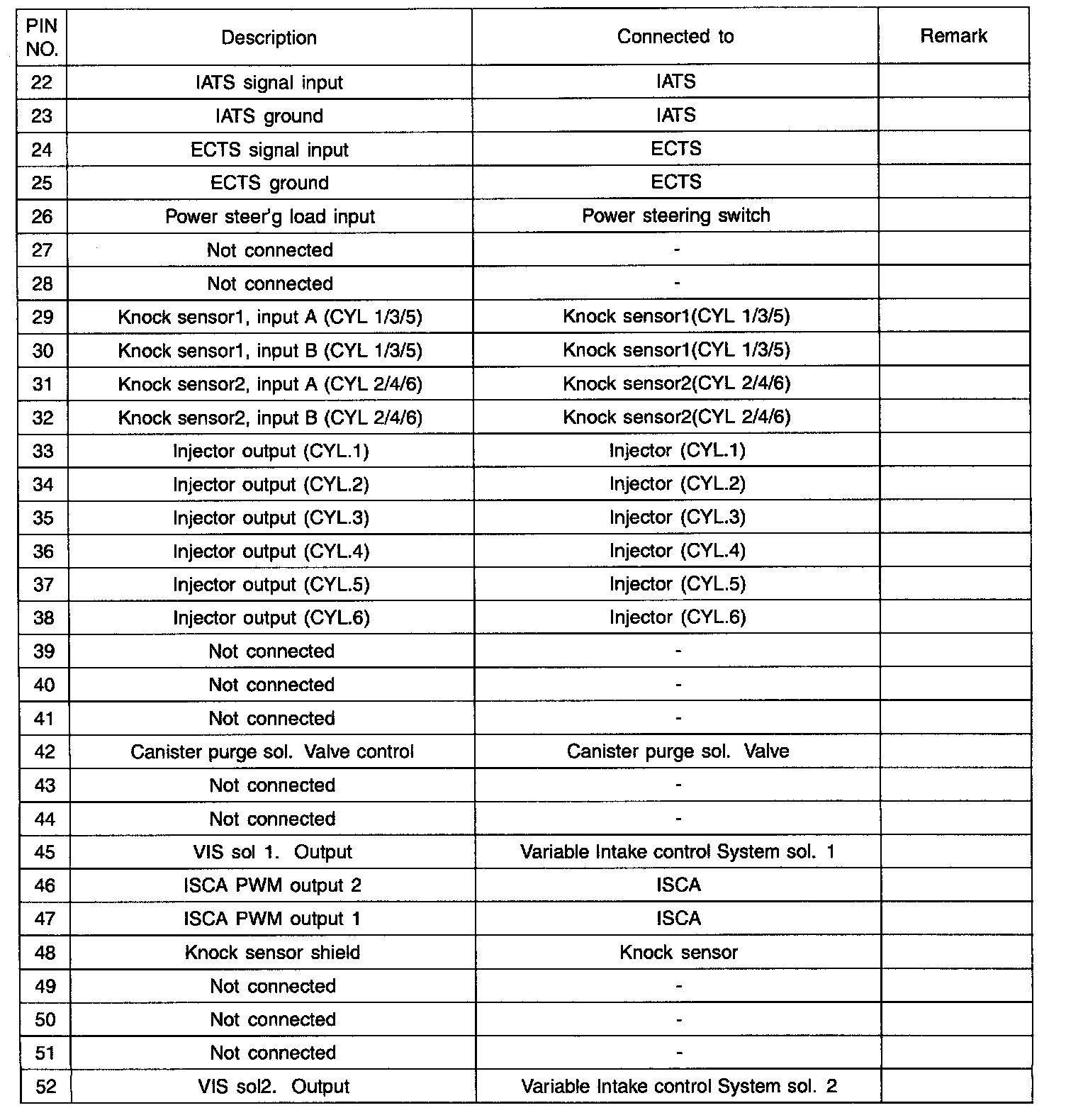

ECM Terminal Function - Connector (C30-4) (Part 2):

ECM Terminal Function - Connector (C30-5):

ECM TERMINAL INPUT/OUTPUT SIGNAL

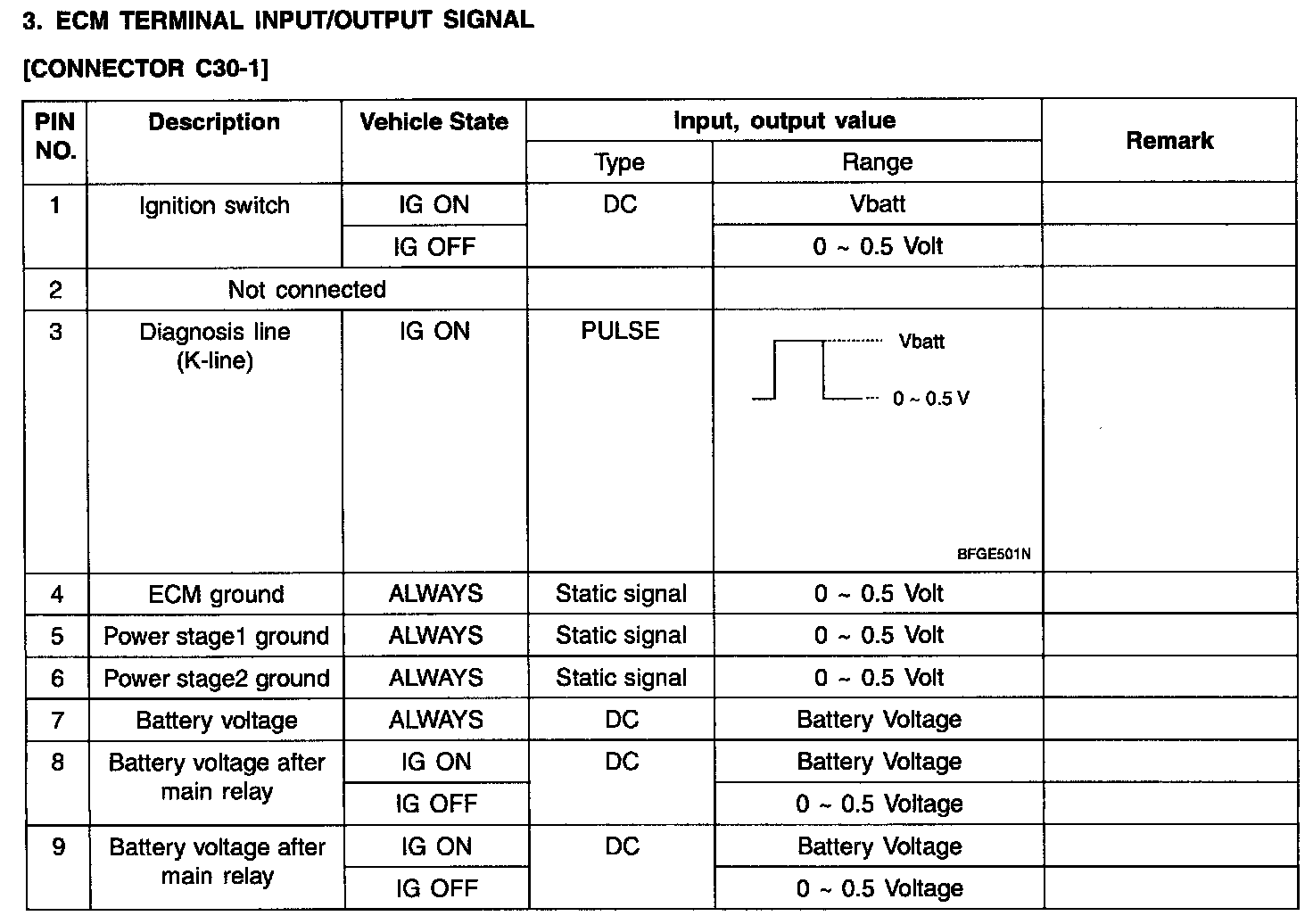

ECM Terminal Input/Output Signal - Connector (C30-1):

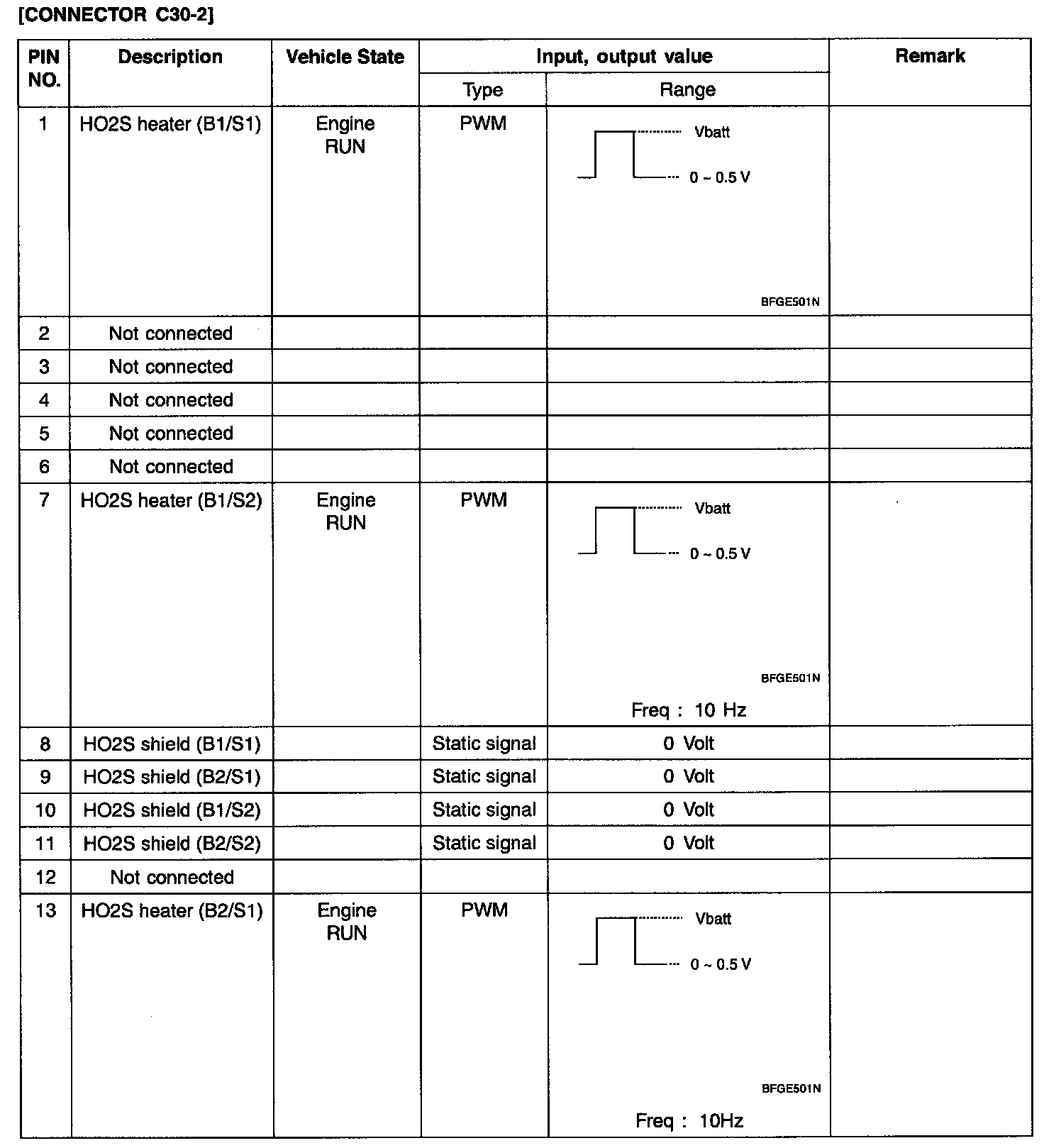

ECM Terminal Input/Output Signal Connector C30-2 (Part 1):

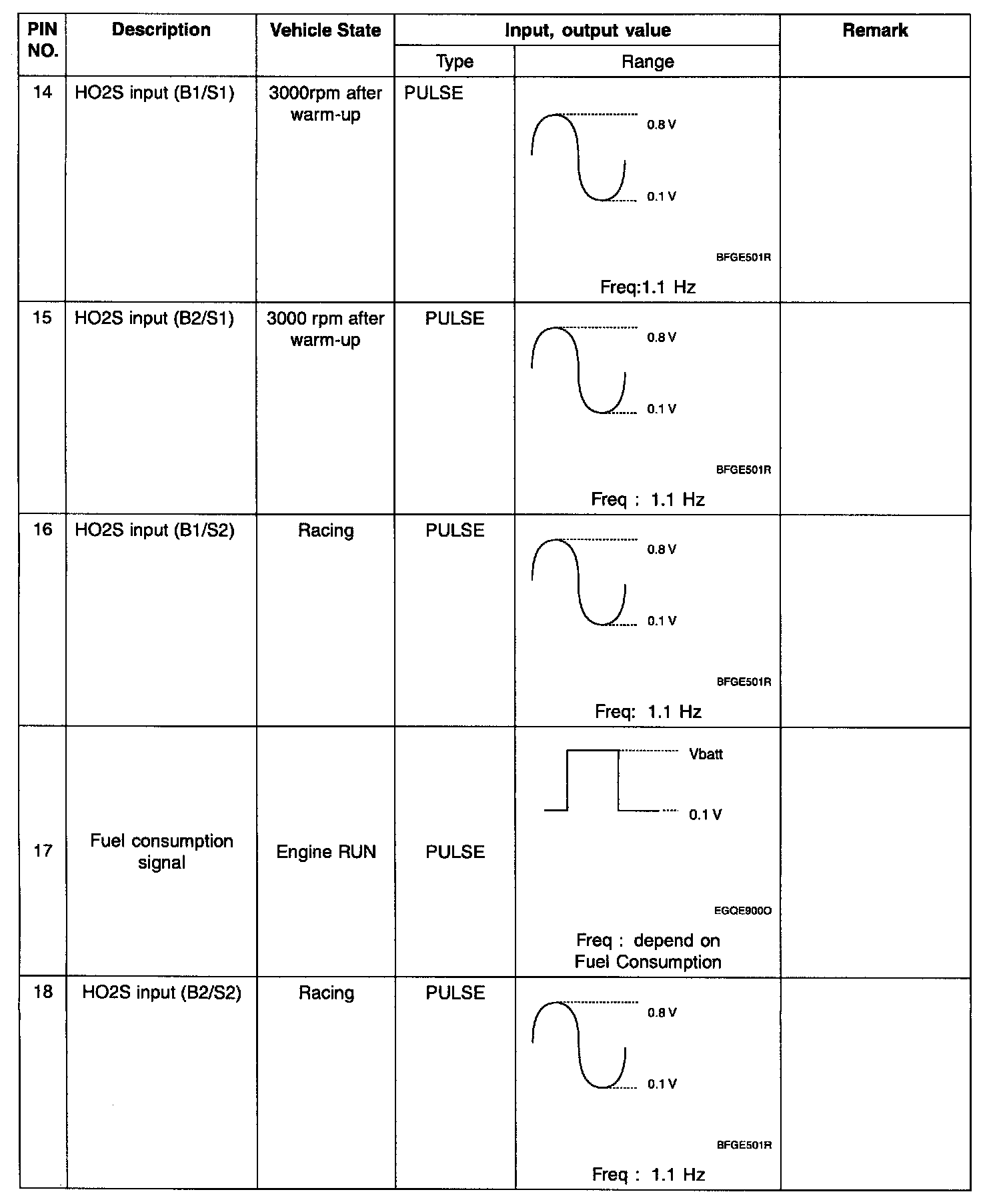

ECM Terminal Input/Output Signal Connector C30-2 (Part 2):

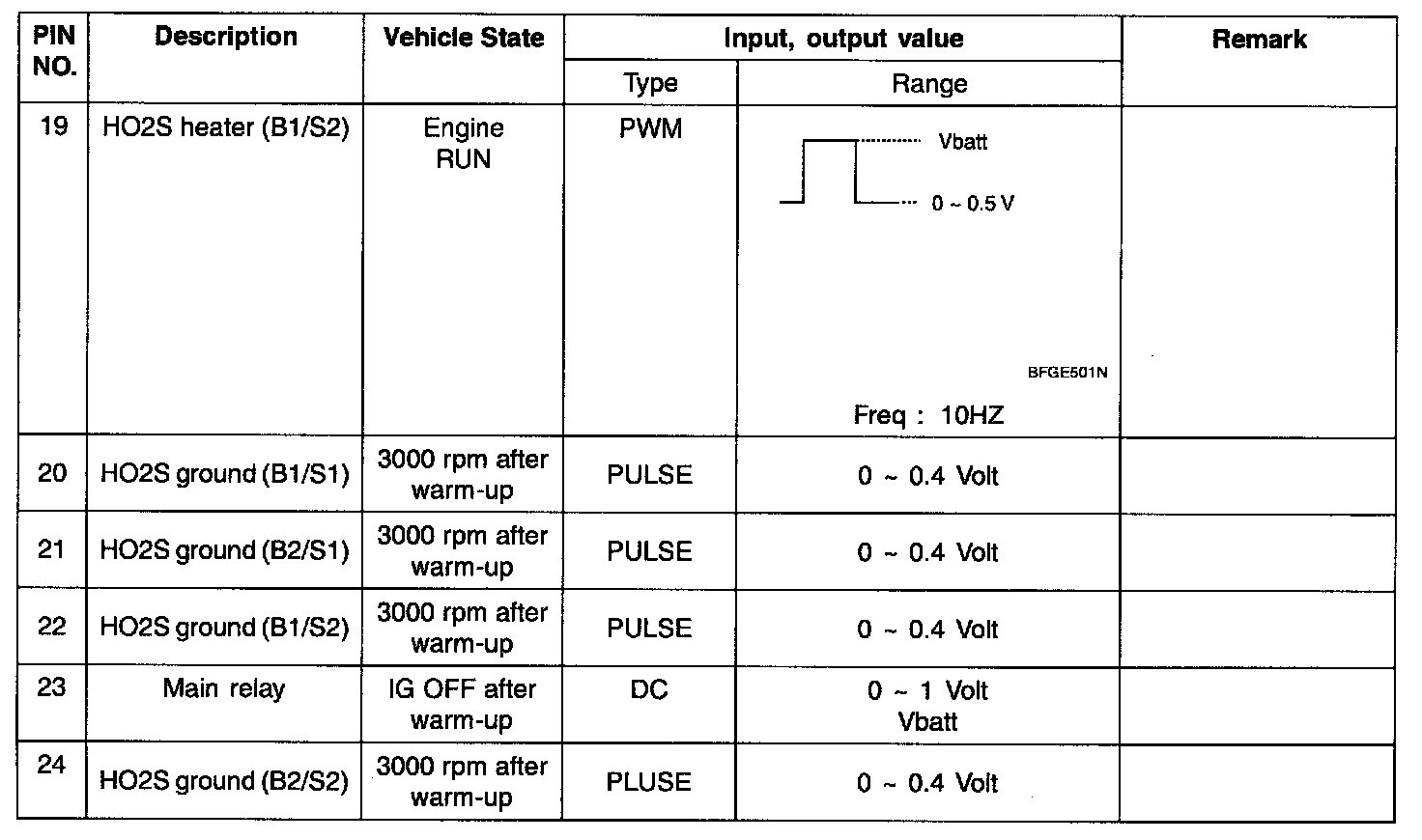

ECM Terminal Input/Output Signal Connector C30-2 (Part 3):

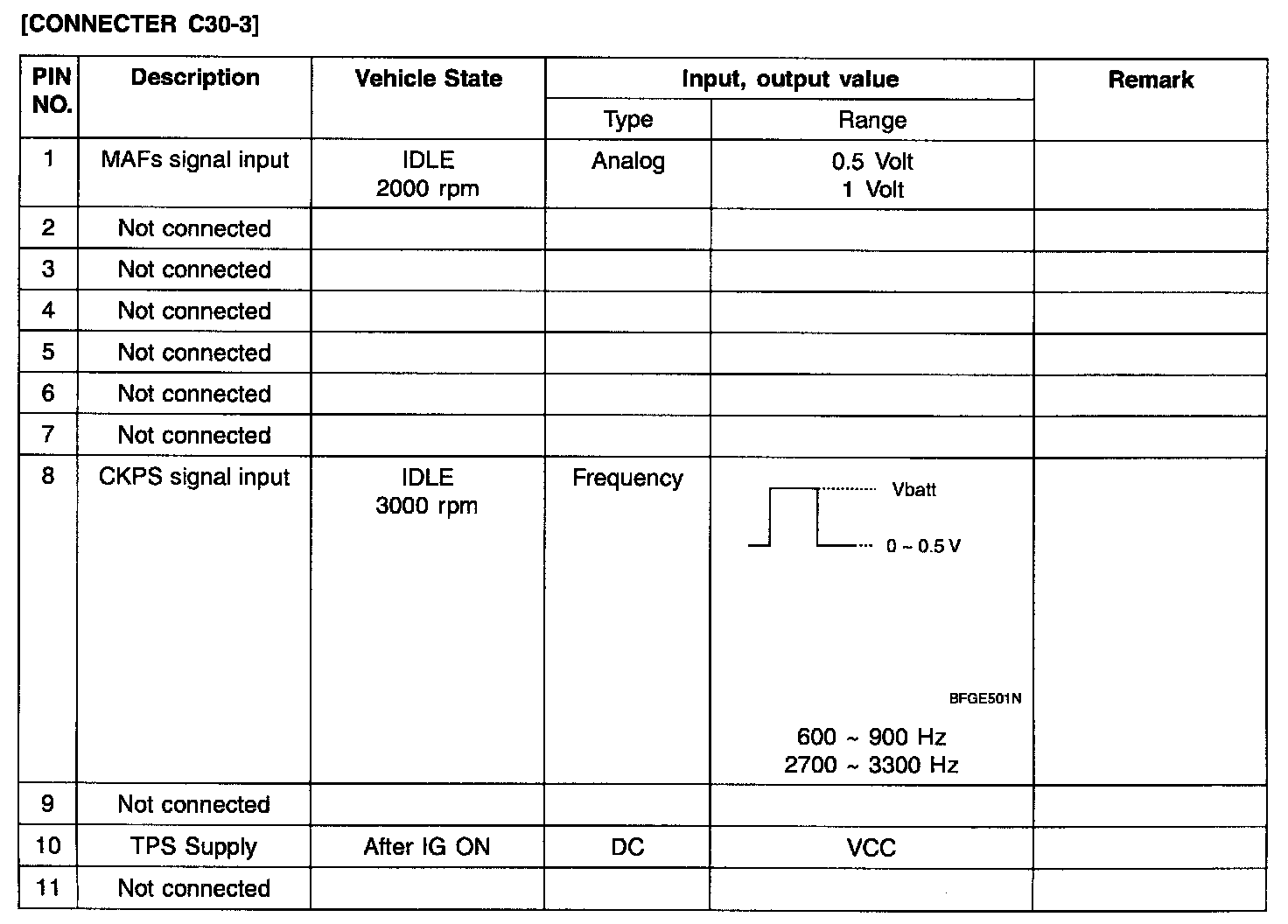

ECM Terminal Input/Output Signal Connector C30-3 (Part 1):

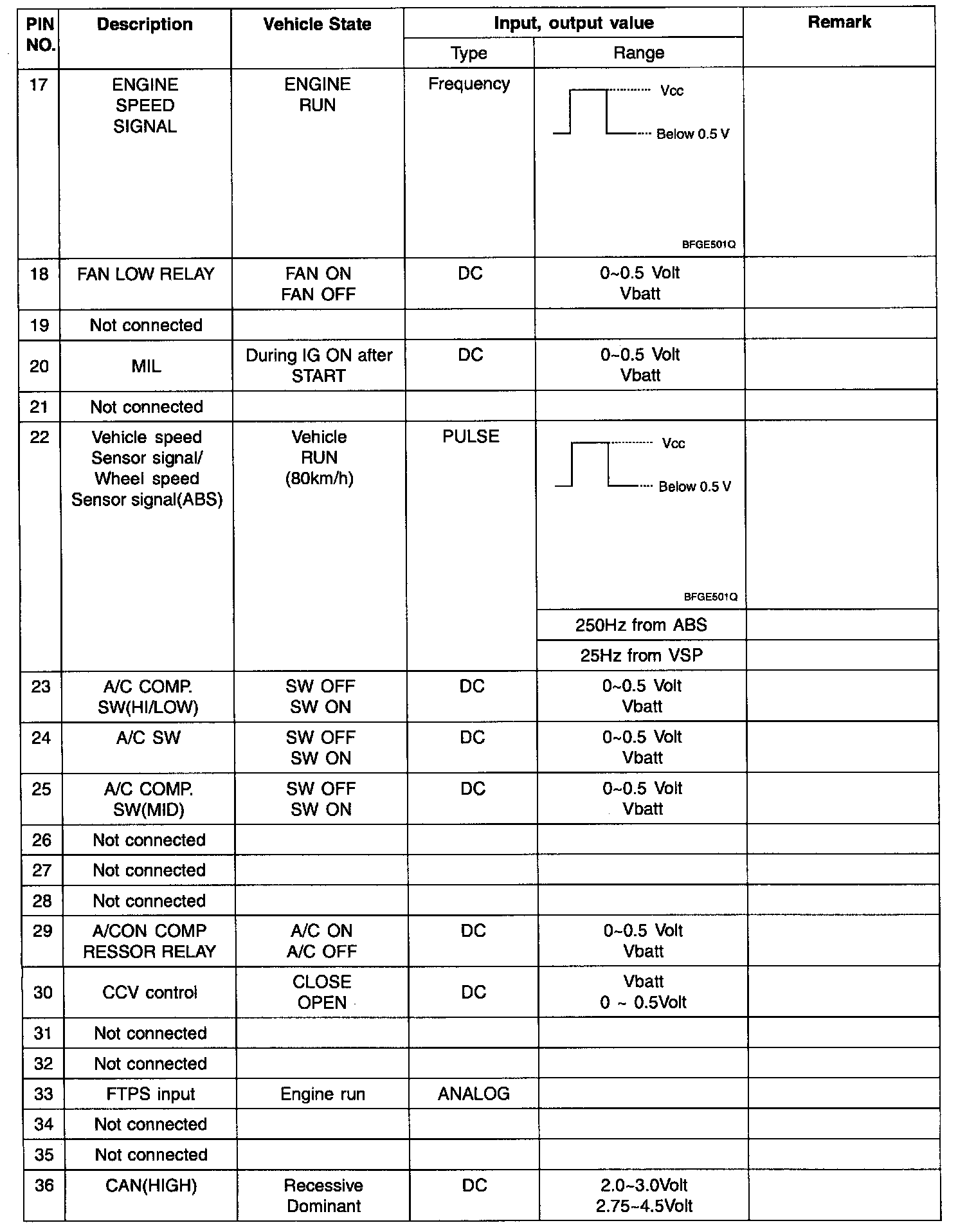

ECM Terminal Input/Output Signal Connector C30-3 (Part 2):

ECM Terminal Input/Output Signal Connector C30-3 (Part 3):

ECM Terminal Input/Output Signal Connector C30-3 (Part 4):

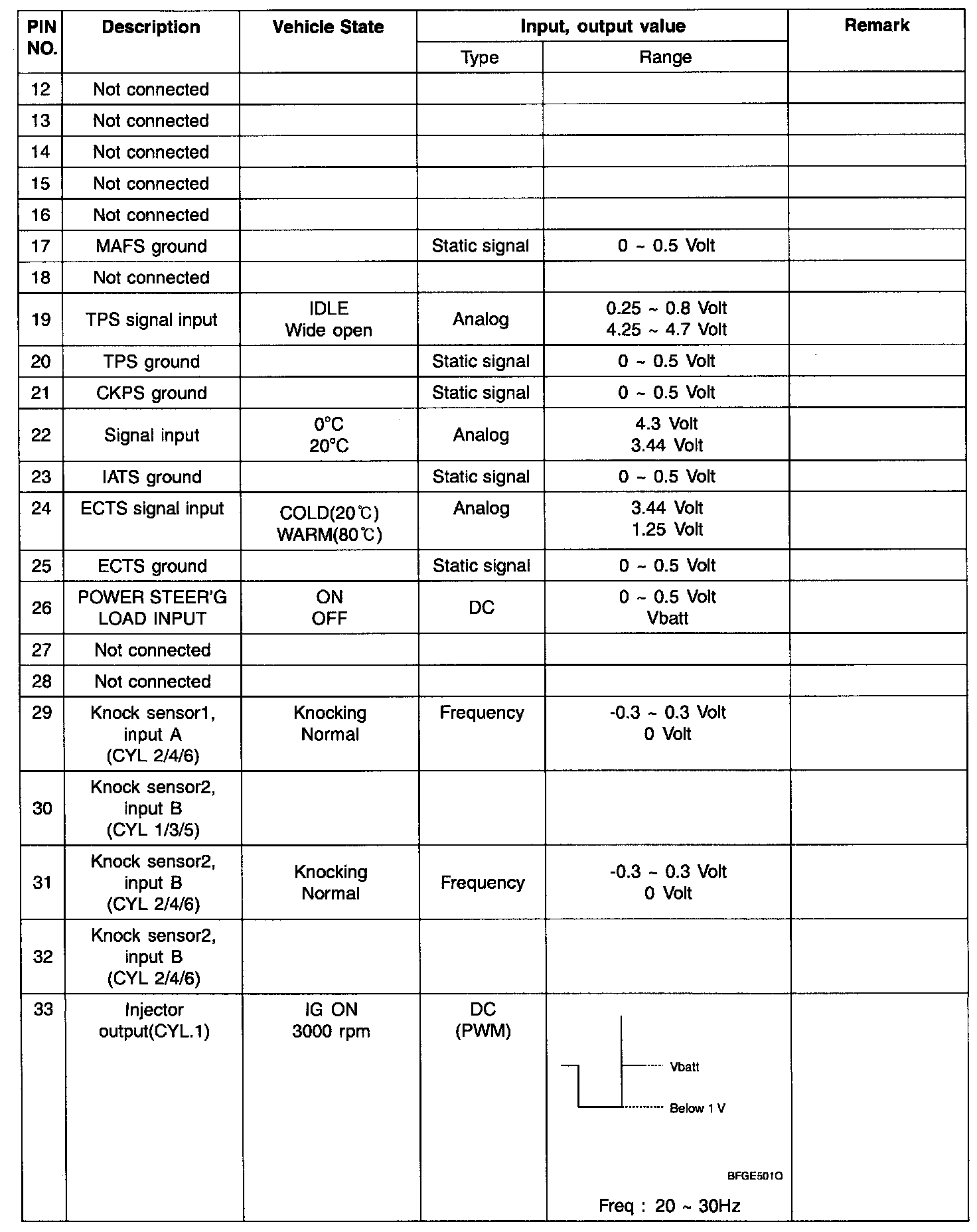

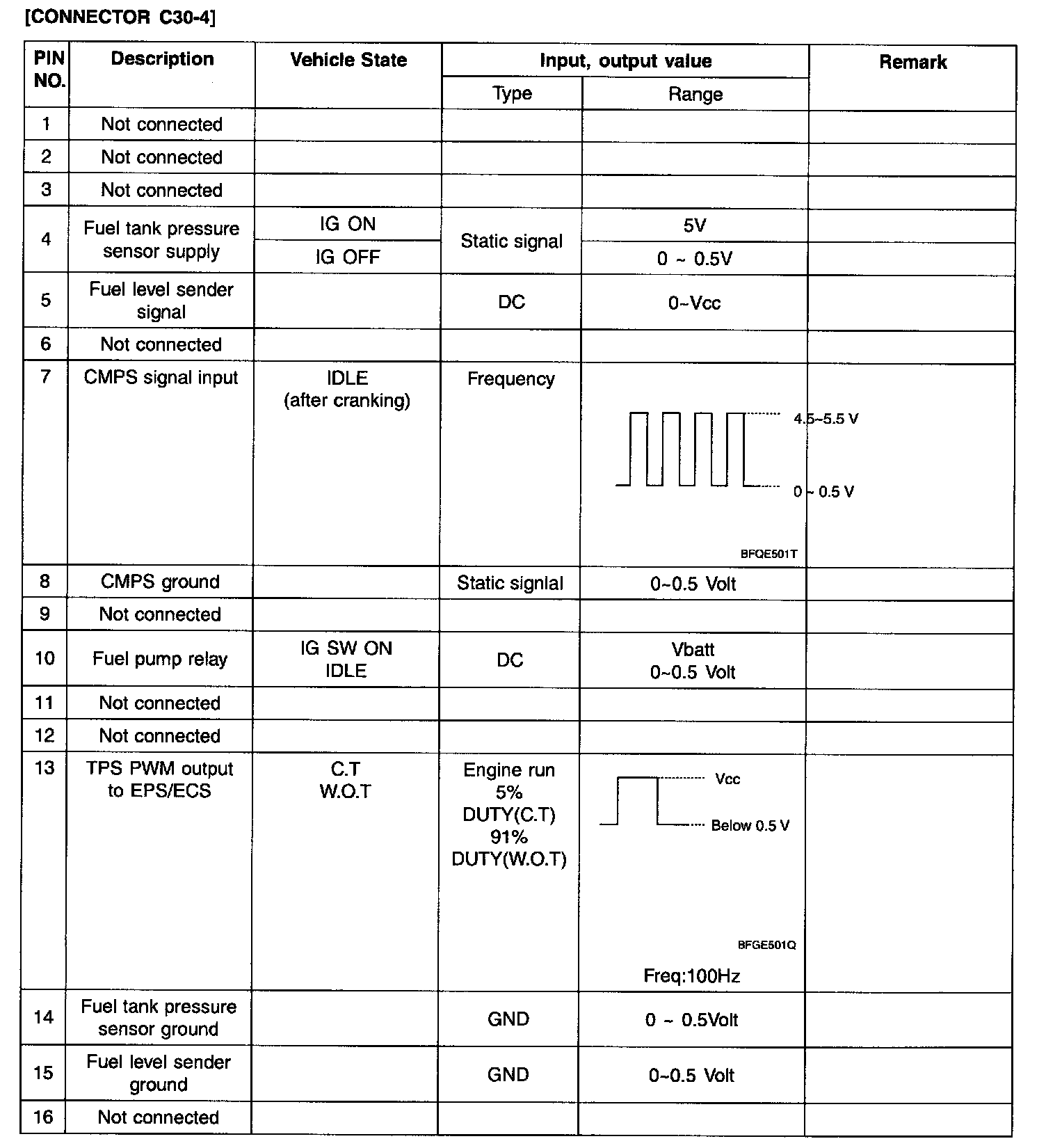

ECM Terminal Input/Output Signal Connector C30-4 (Part 1):

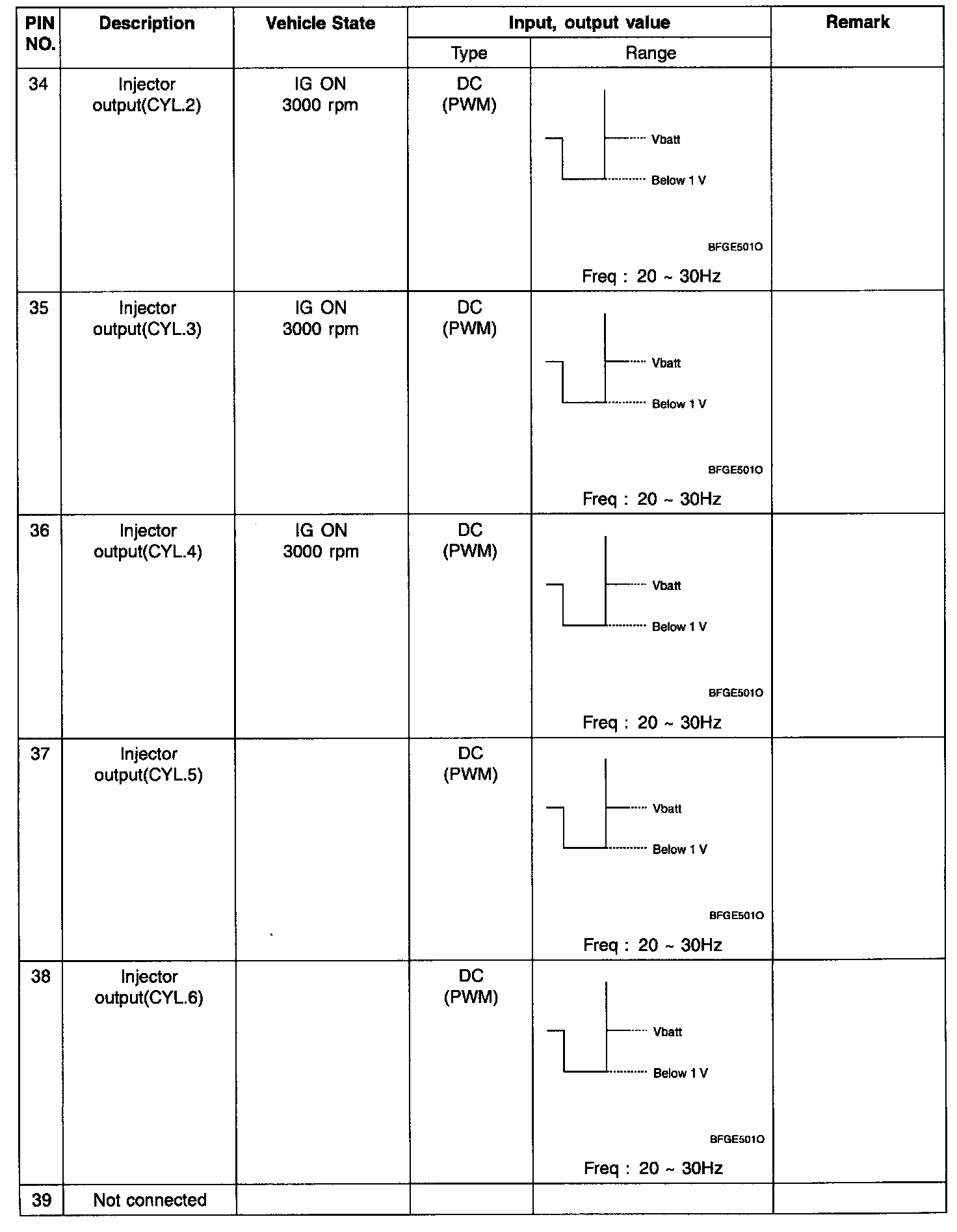

ECM Terminal Input/Output Signal Connector C30-4 (Part 2):

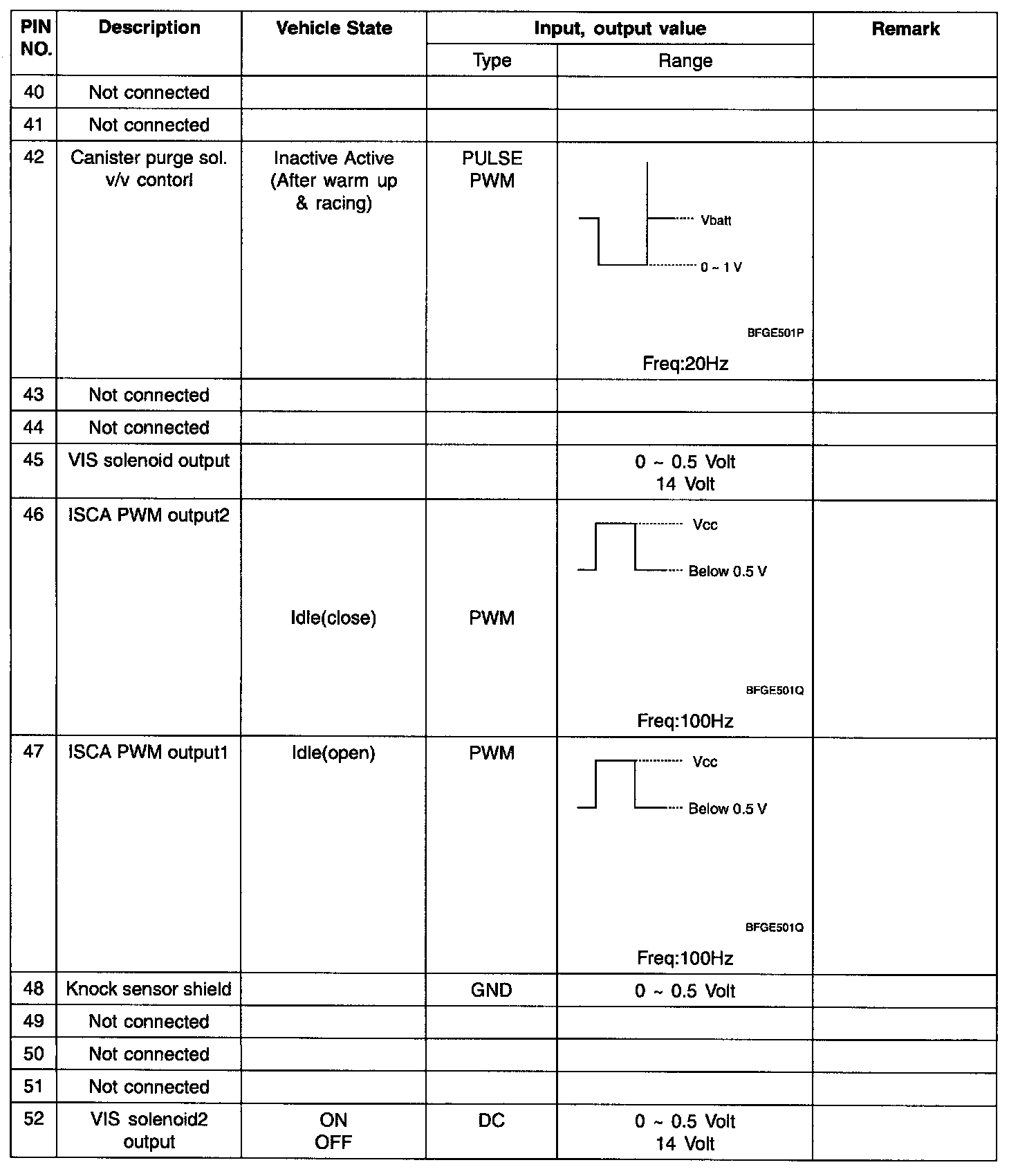

ECM Terminal Input/Output Signal Connector C30-4 (Part 3):

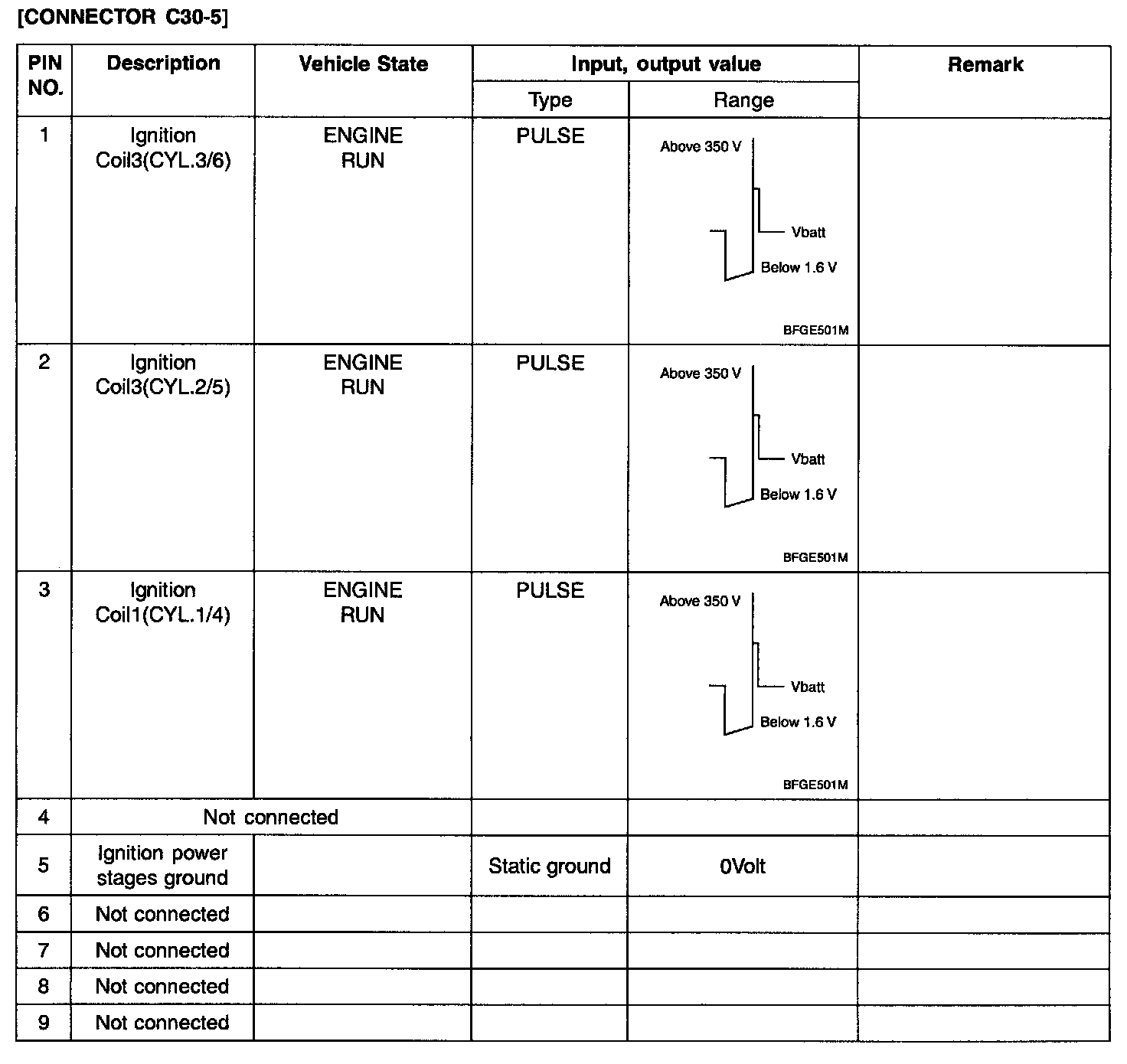

ECM Terminal Input/Output Signal Connector C30-5:
