Oil Pump
Oil PumpInstall oil pump
(1)
Place the inner and outer rotors into front case with the marks facing the oil pump cover side.
(2)

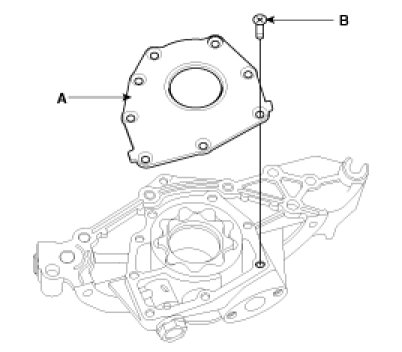

Install the oil pump cover(A) to front case with the 8screws(B).
Tightening torque
8 - 12 Nm (0.8 - 1.2 kgf.m, 6 - 8.8 lb-ft)
