Hood Sensor/Switch (For Alarm): Testing and Inspection





Inspection

Hood Switch
1. Remove the hood latch.

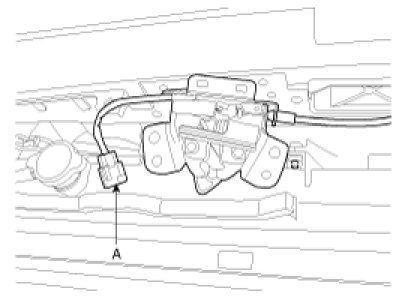

2. Disconnect the connector(A) from the hood switch.




3. Check for continuity between the terminals and ground according to the table.
