Seat Cover: Service and Repair

Replacement

Recliner Cover Replacement
1. Remove the sliding knob, recliner knob, height knob.

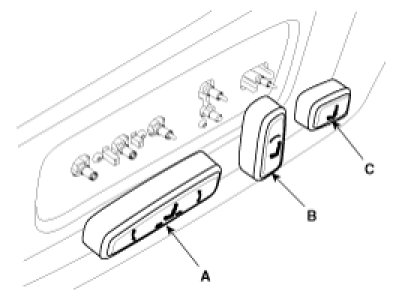

A. Remove the sliding knob (A), recliner knob (B), height knob(C).

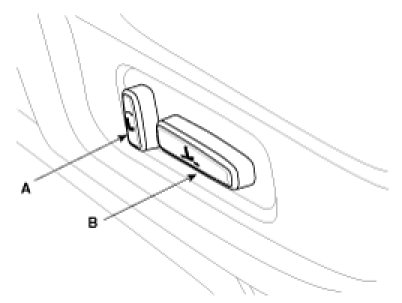

A. Remove the sliding knob (B), recliner knob (A).

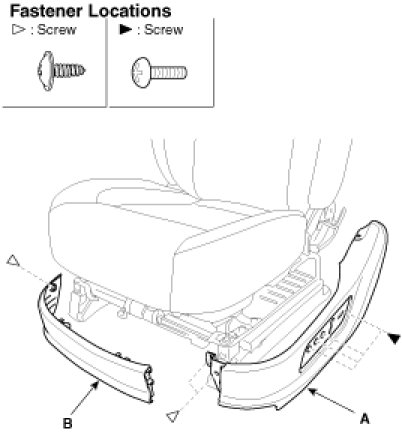

2. Remove the front cover (B).
3. After loosening the mounting screws, then remove the recliner cover (A).

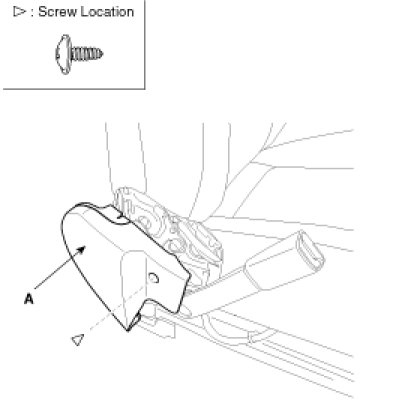

4. Gently detach the hook, remove the recliner cover (A).




5. Installation is the reverse of removal.

NOTE:
- Use Hi-Scan tool to re-zero PODS system after replacing component. (Passenger's)
