Repair Procedures

Removal

1. Remove the lower crash pad.

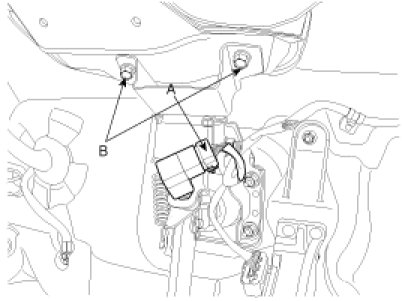

2. Disconnect the stop lamp switch connector (A).




3. Remove the mounting bracket bolts (B).

Tightening torque :
16.7 - 25.5N.m (1.7 - 2.6kgf.m, 12.3 - 18.8lb-ft)

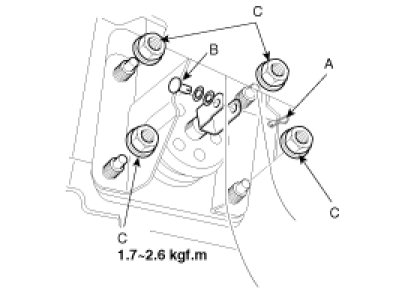

4. Remove the snap pin (A) and joint pin (B).




5. Remove the brake pedal member assembly mounting nuts (C) and then remove the brake pedal assembly.

Tightening torque :
16.7 - 25.5N.m (1.7 - 2.6kgf.m, 12.3 - 18.8lb-ft)


Installation

1. Installation is the reverse of removal.

CAUTION:
- Before installing the pin, apply the grease to the joint pin.
- Use a new snap pin whenever installing.

2. Check the brake pedal operation.
