Scan Tool Testing and Procedures

Inspection

Self Diagnosis With Scan Tool
It will be able to diagnose defects of SMART KEY system with scan tool quickly. Scan tool can operates actuator forcefully, input/output value monitoring and self diagnosis

The following three features will be major problem in SMART KEY system.
1. Problem in SMART KEY unit input.
2. Problem in SMART KEY unit.
3. Problem in SMART KEY unit output.
So the following three diagnosis operates will be the major problem solution process.
1. SMART KEY unit Input problem : switch diagnosis
2. SMART KEY unit problem : communication diagnosis
3. SMART KEY unit Output problem : antenna and switch output diagnosis

Switch Diagnosis
1. Connect the cable of scan tool to the data link connector in driver side crash pad lower panel, turn the power on scan tool.
2. Select the vehicle model and then SMART KEY system.

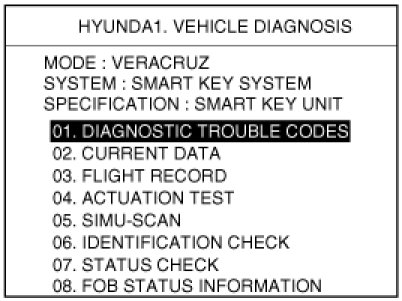

3. Select the "SMART KEY unit".

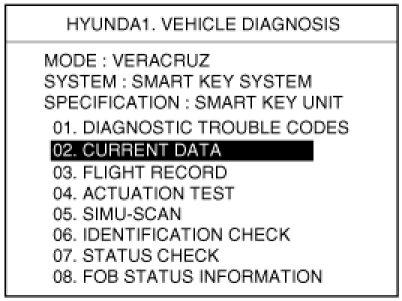

4. After IG ON, select the "Current data".




5. You can see the situation of each switch on scanner after connecting the "current data" process.






Communication Diagnosis With Scan Tool (Self Diagnosis)
1. Communication diagnosis checks that the each linked components operates normal.
2. Connect the cable of scan tool to the data link connector in driver side crash pad lower panel.

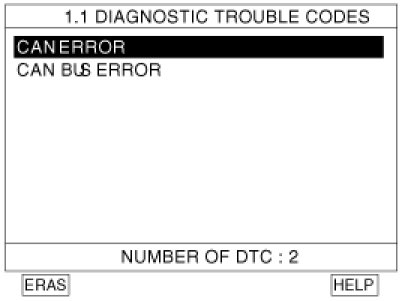

3. After IG ON, select the "SELF DIAGNOSIS".
