Seat Track: Service and Repair
ReplacementSeat Track Replacement 1.
Remove the recliner cover.
2.
Remove the seat cushion cover.
3.

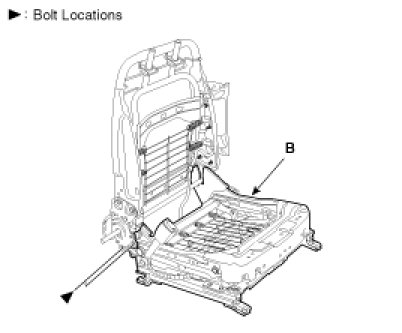

Remove the track (B).

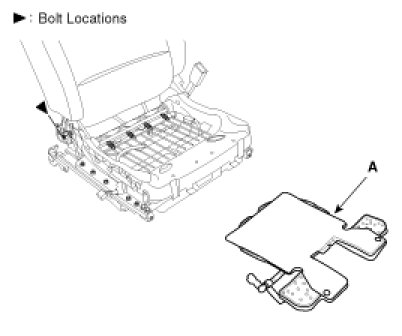

DRIVE'SPASSENGER'S - Remove the PODS(A).
4.
Installation is the reverse of removal.
NOTE: -
Be sure to perform PODS re-zero with Hi-scan (pro) after replacing parts (Passenger's)
