Coolant Temperature Sensor / Switch HVAC: Testing and Inspection
Inspection 1.
Ignition "ON"
2.

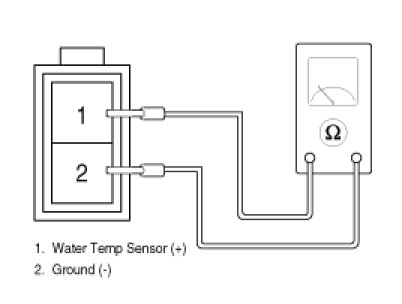

Using the multi-tester, Measure resistance between terminal "1" and "2" of water temperature sensor.

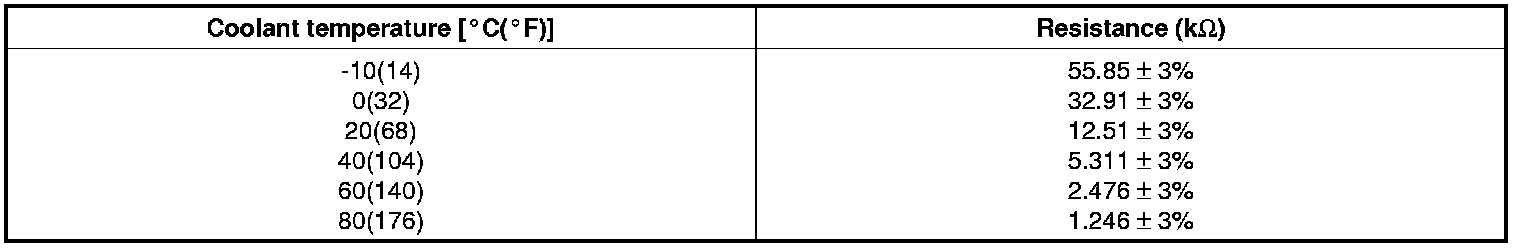

Specification NOTE: Negative type thermistor that resistance will rise with lower temperature, and reduce with higher temperature.
