Fog/Driving Lamp: Testing and Inspection
InspectionFront Fog Lamp Relay 1.

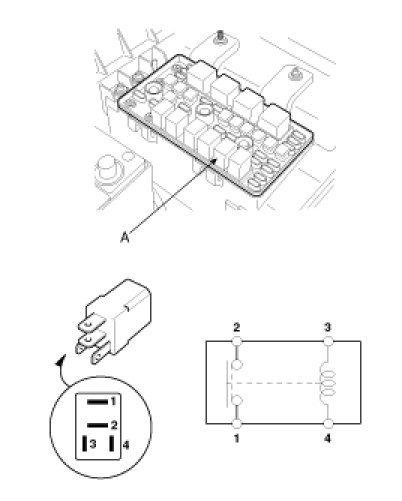

Pull out the front fog lamp (A) relay from the engine compartment relay box.
2.
Check for continuity between terminals. There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.4 terminals.
3.
There should be no continuity between the No.1 and No.2 terminals when power is disconnected.
