Pinout Values and Diagnostic Parameters
Powertrain Control Module (PCM)

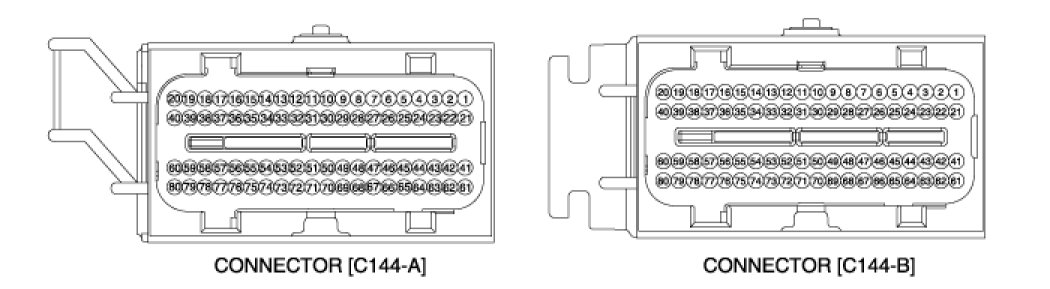

1. PCM Harness Connector
2. PCM Terminal Function

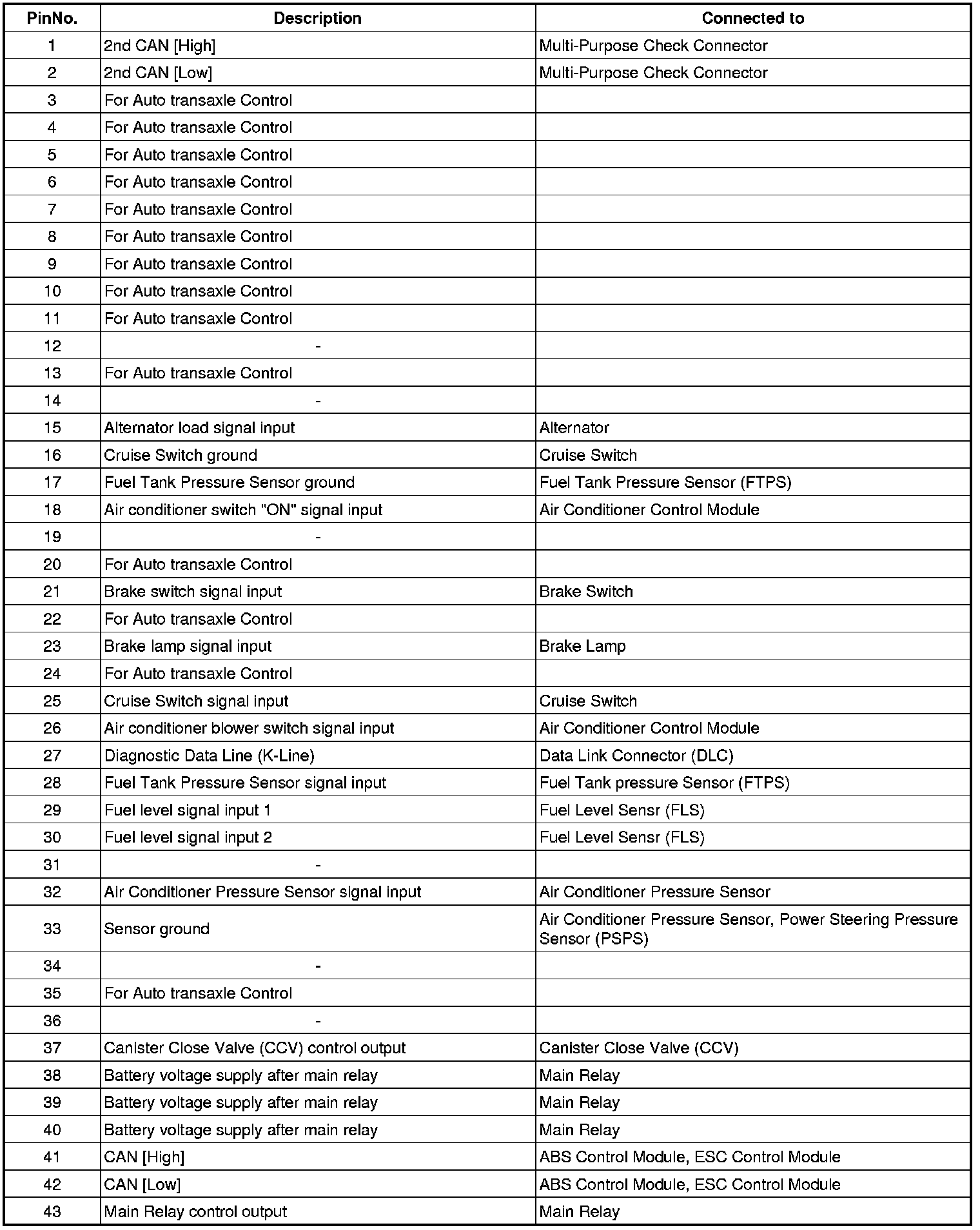

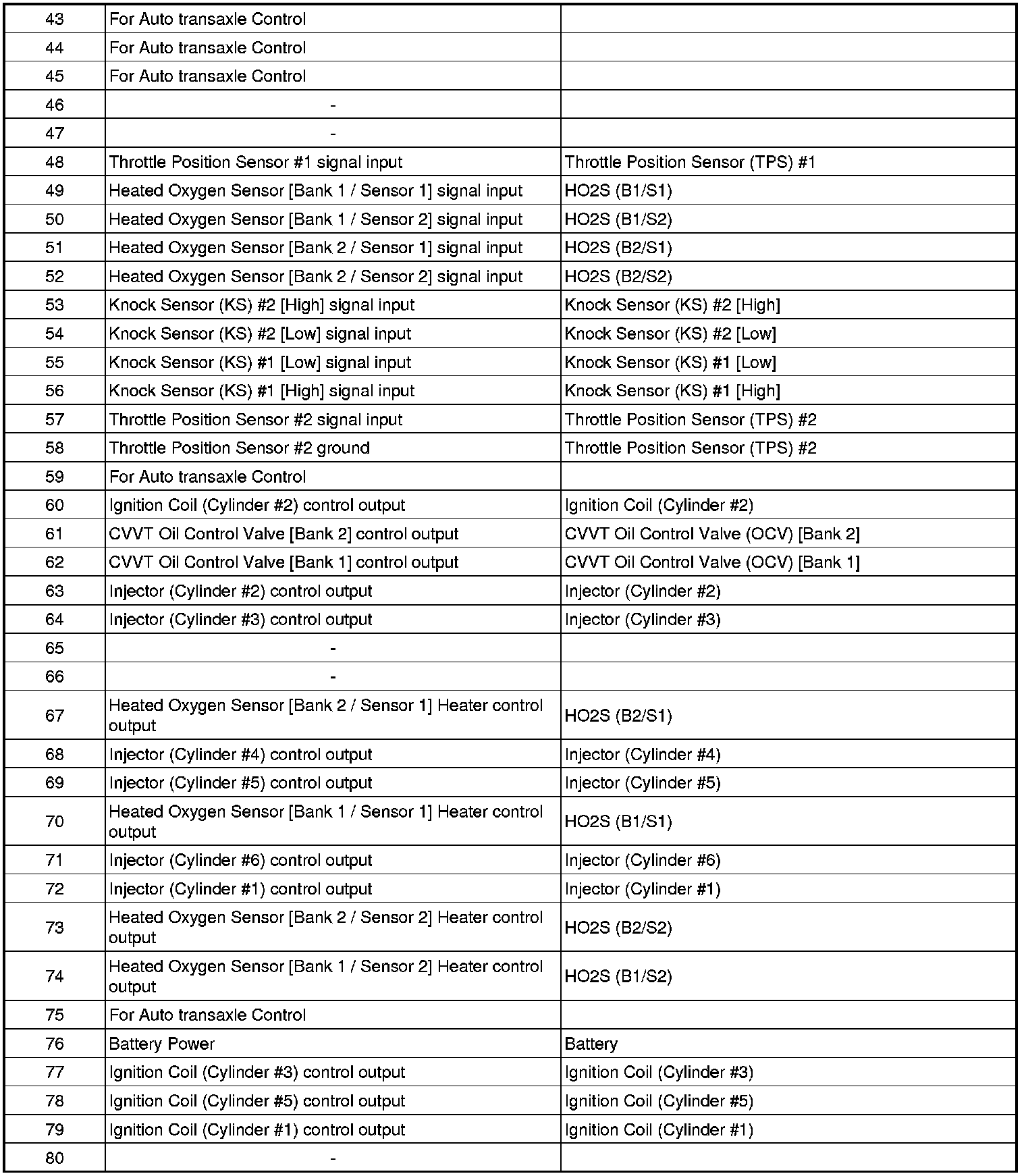

Connector [C144-A]

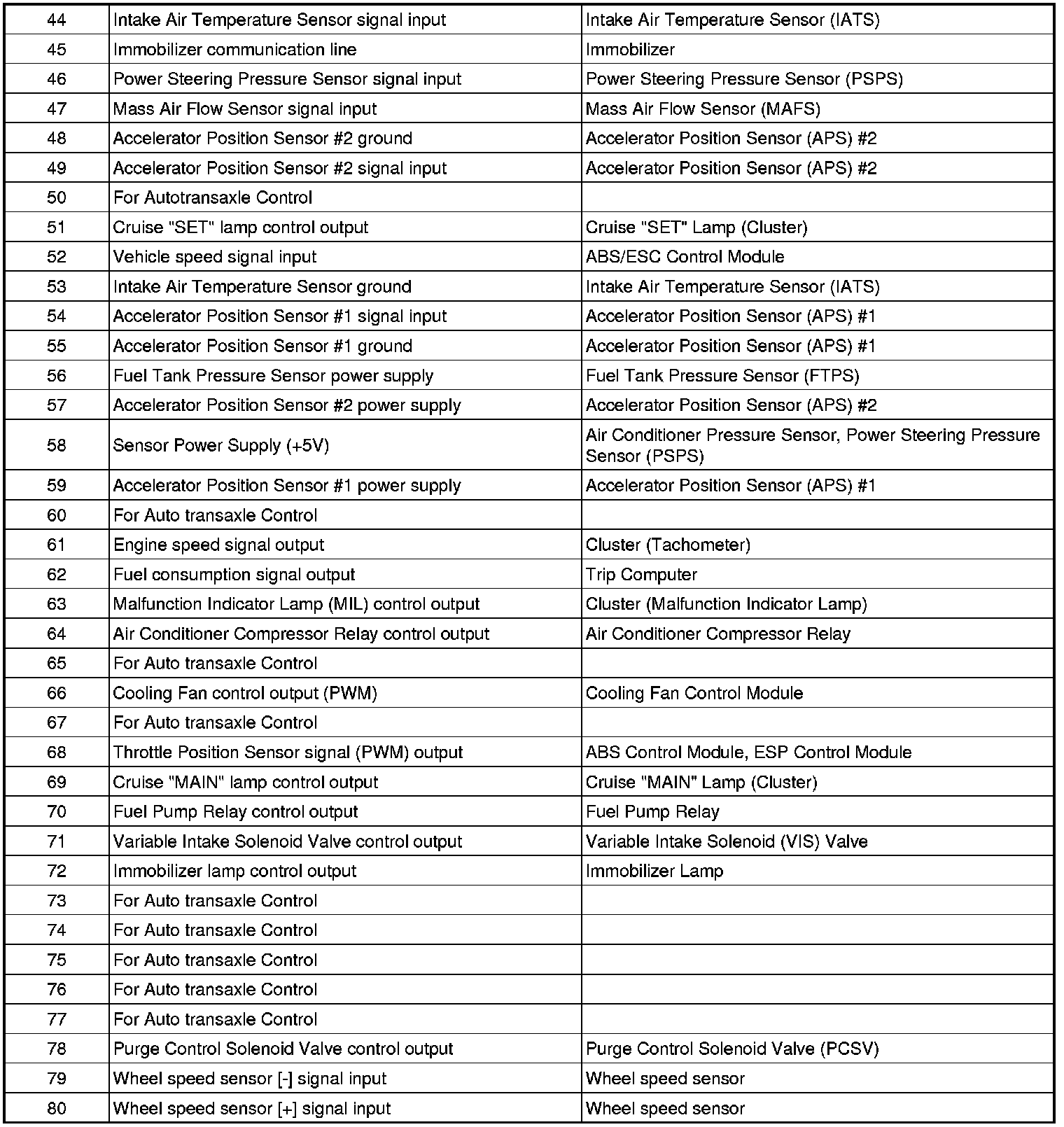

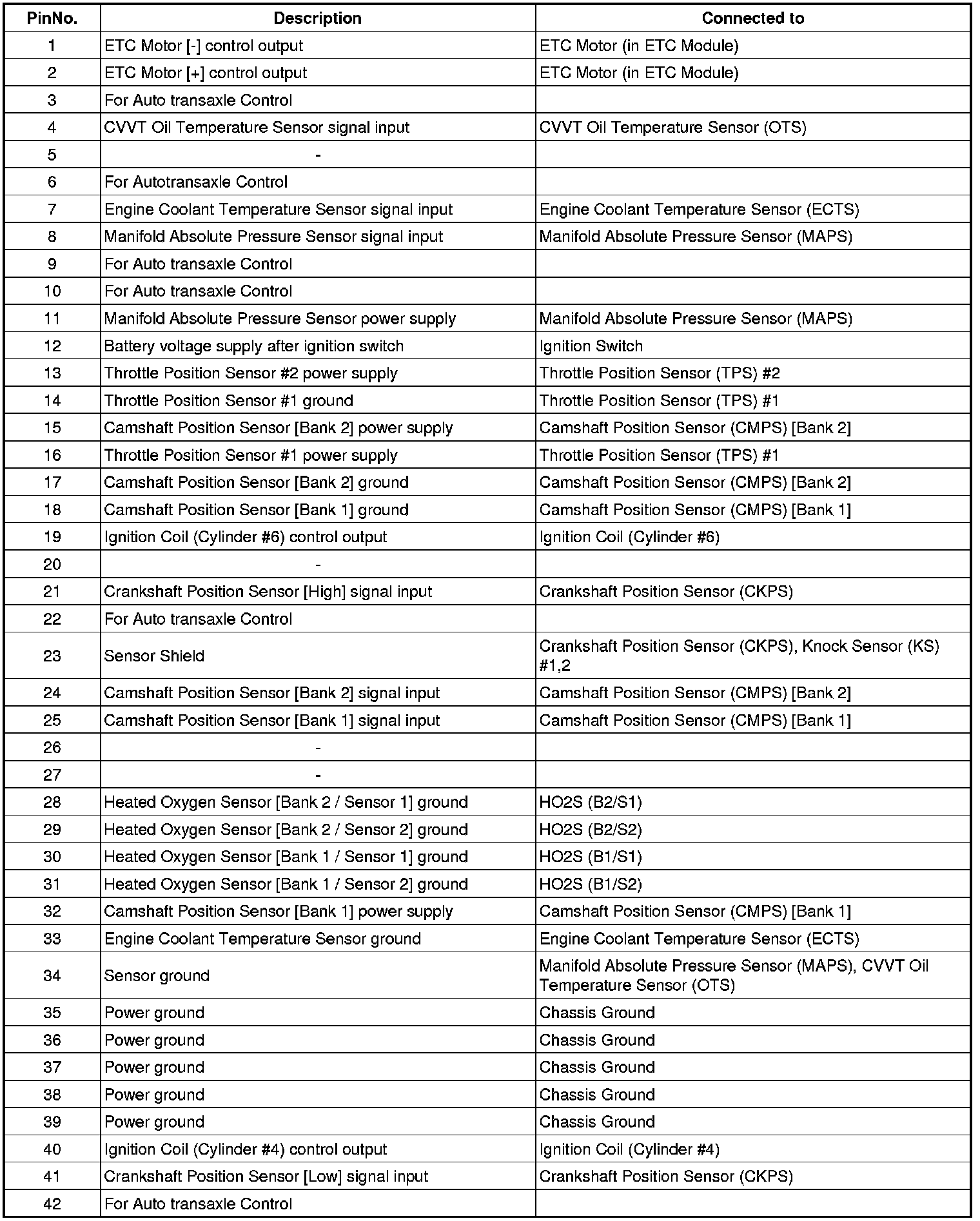

Connector [C144-B]
3. PCM Terminal Input/output Signal

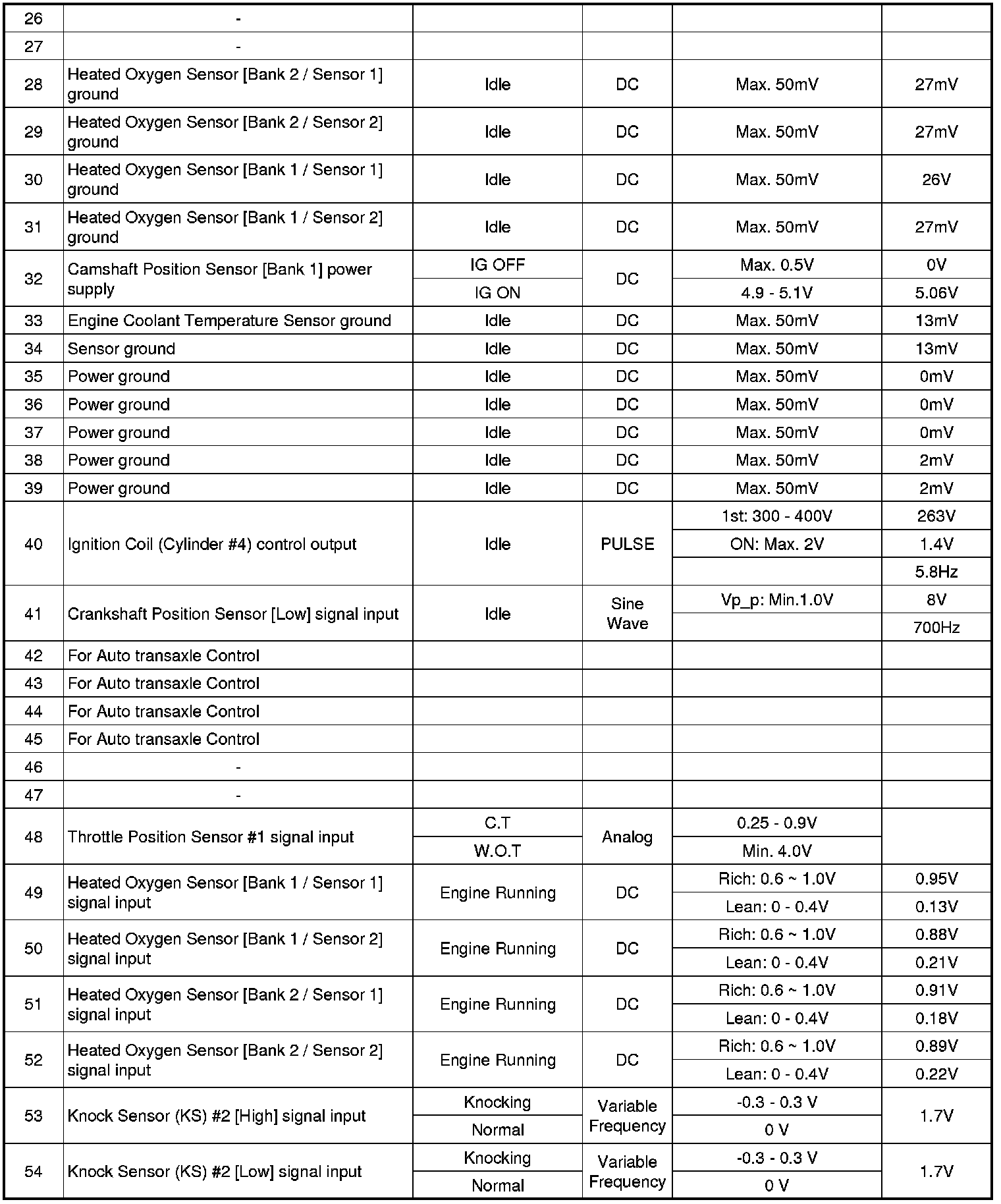

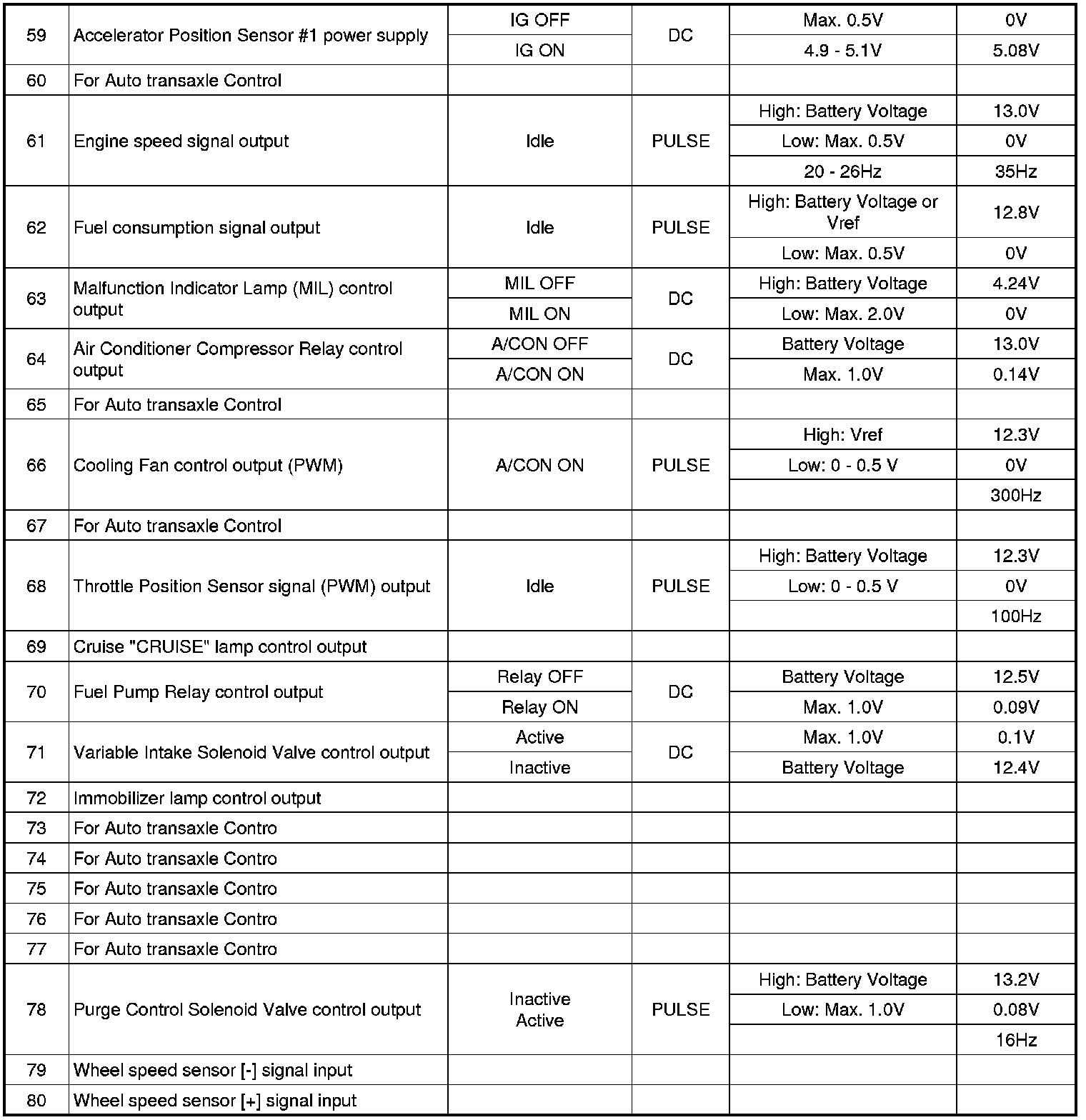

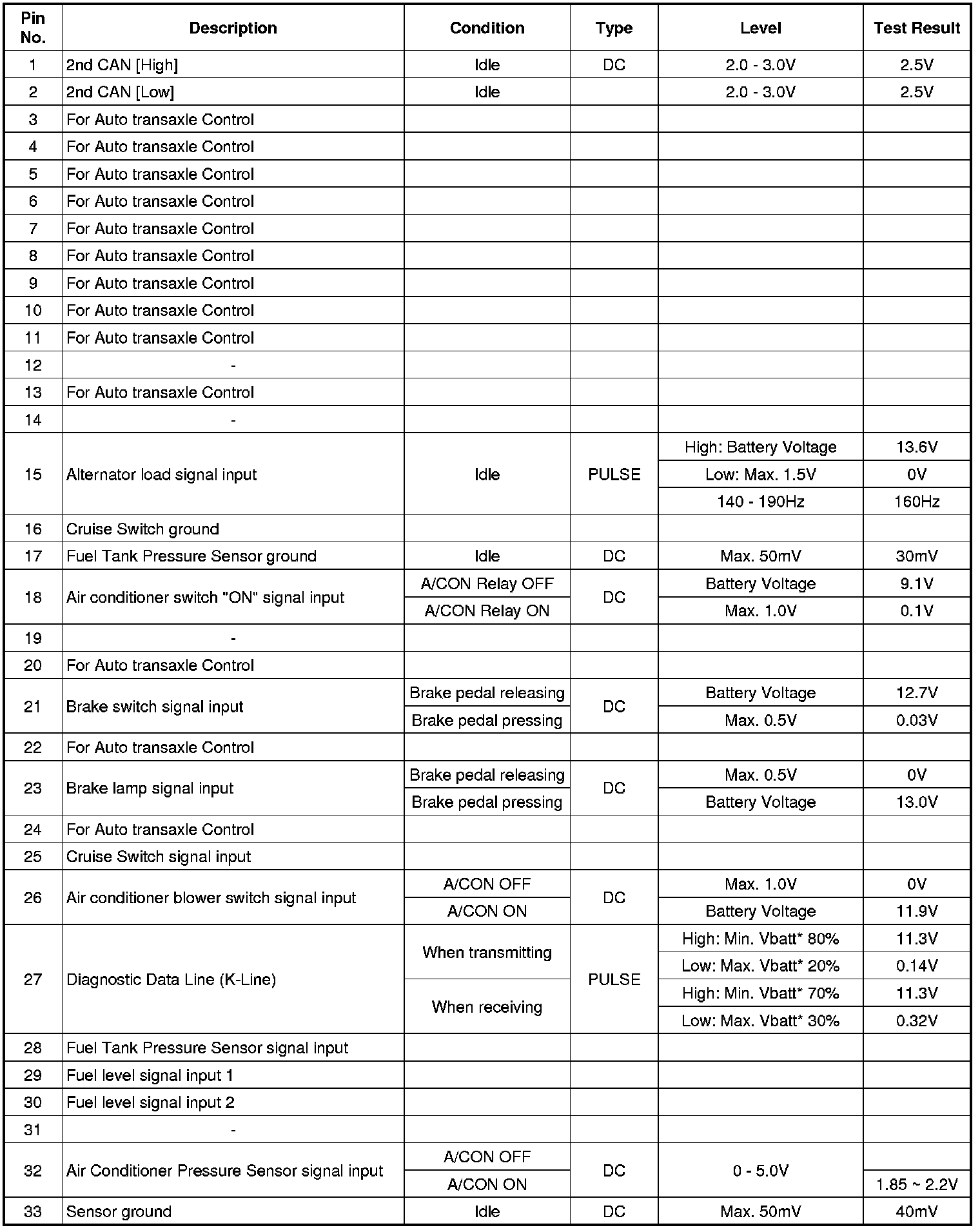

Connector [C144-A]

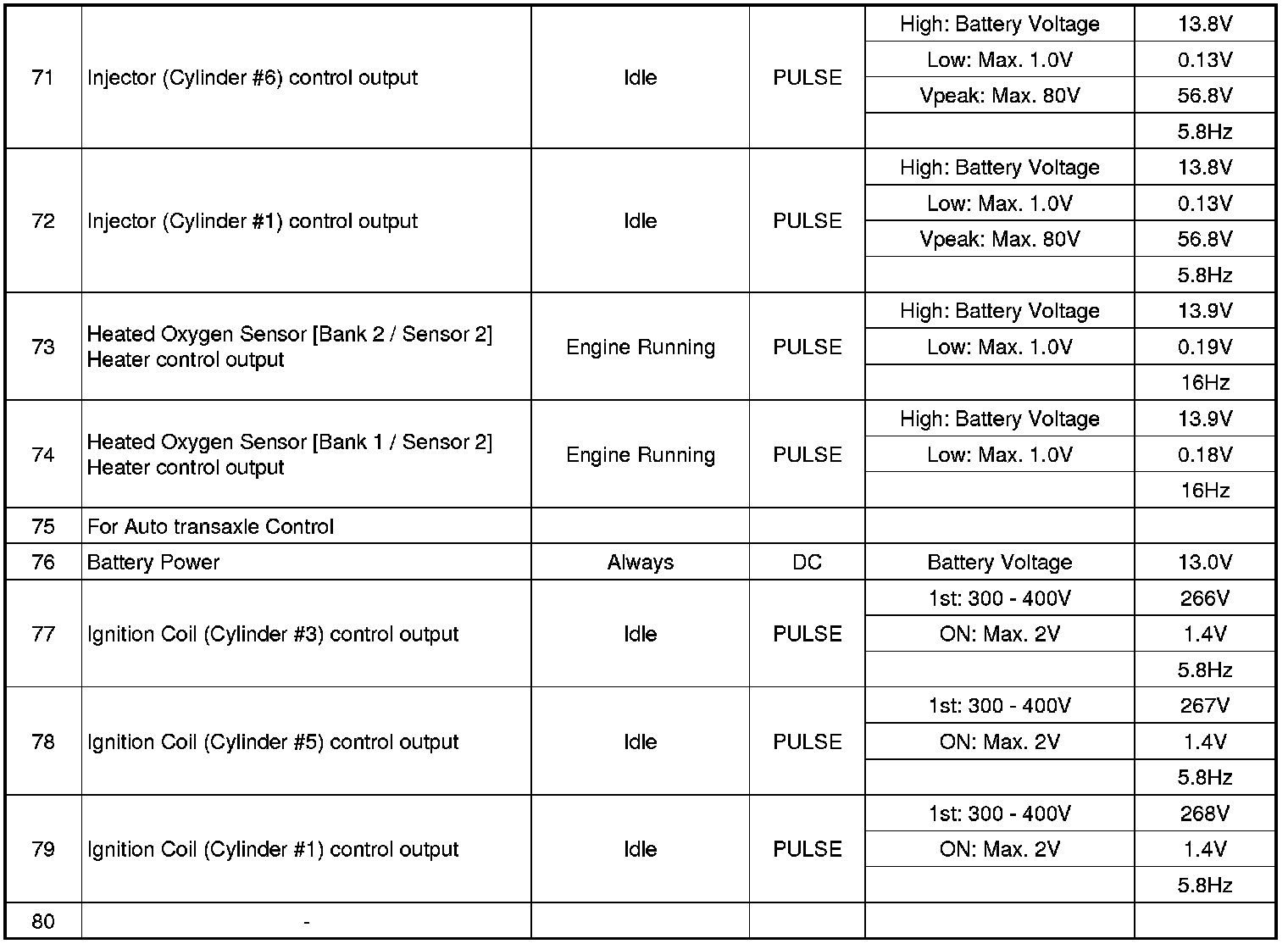

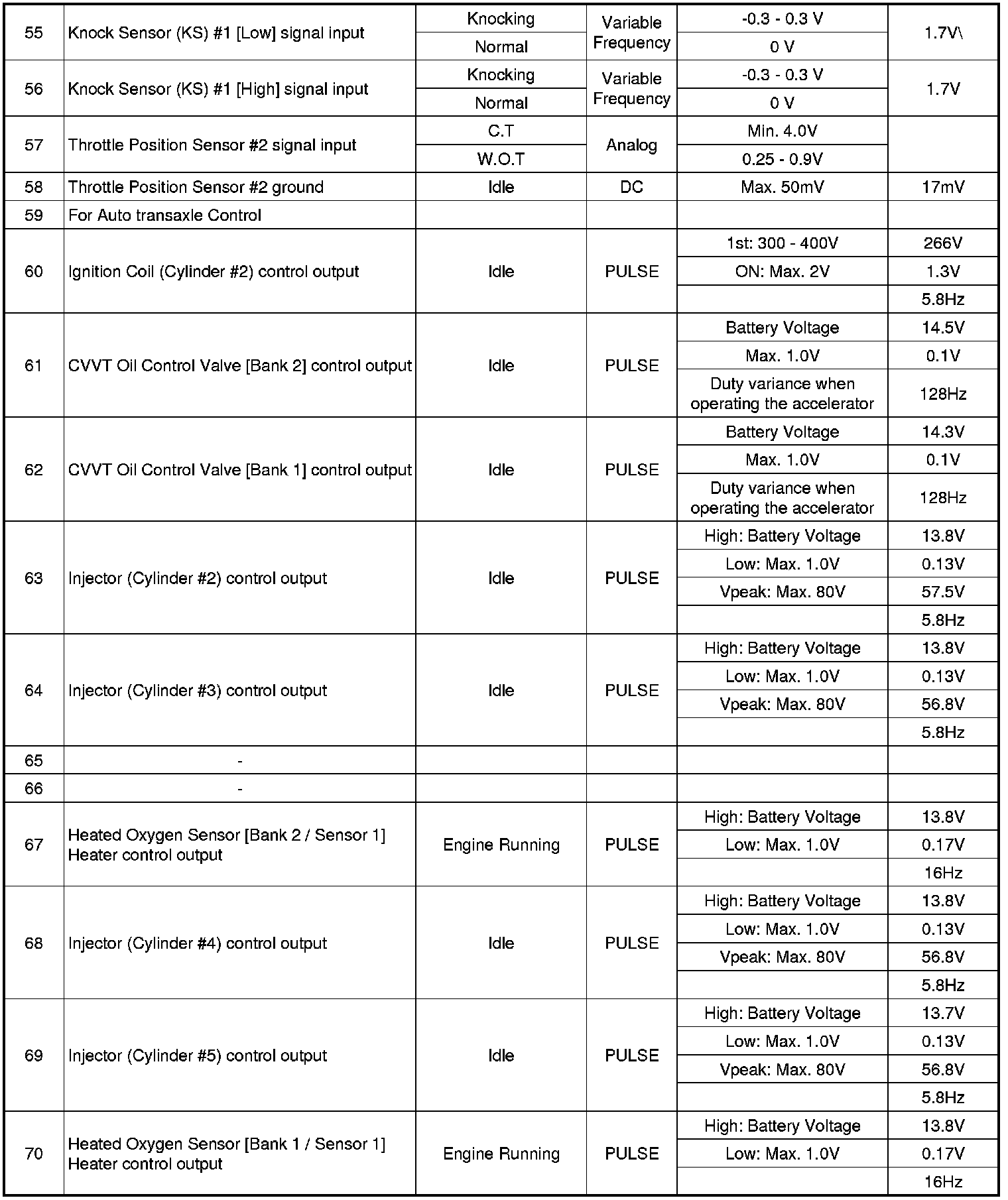

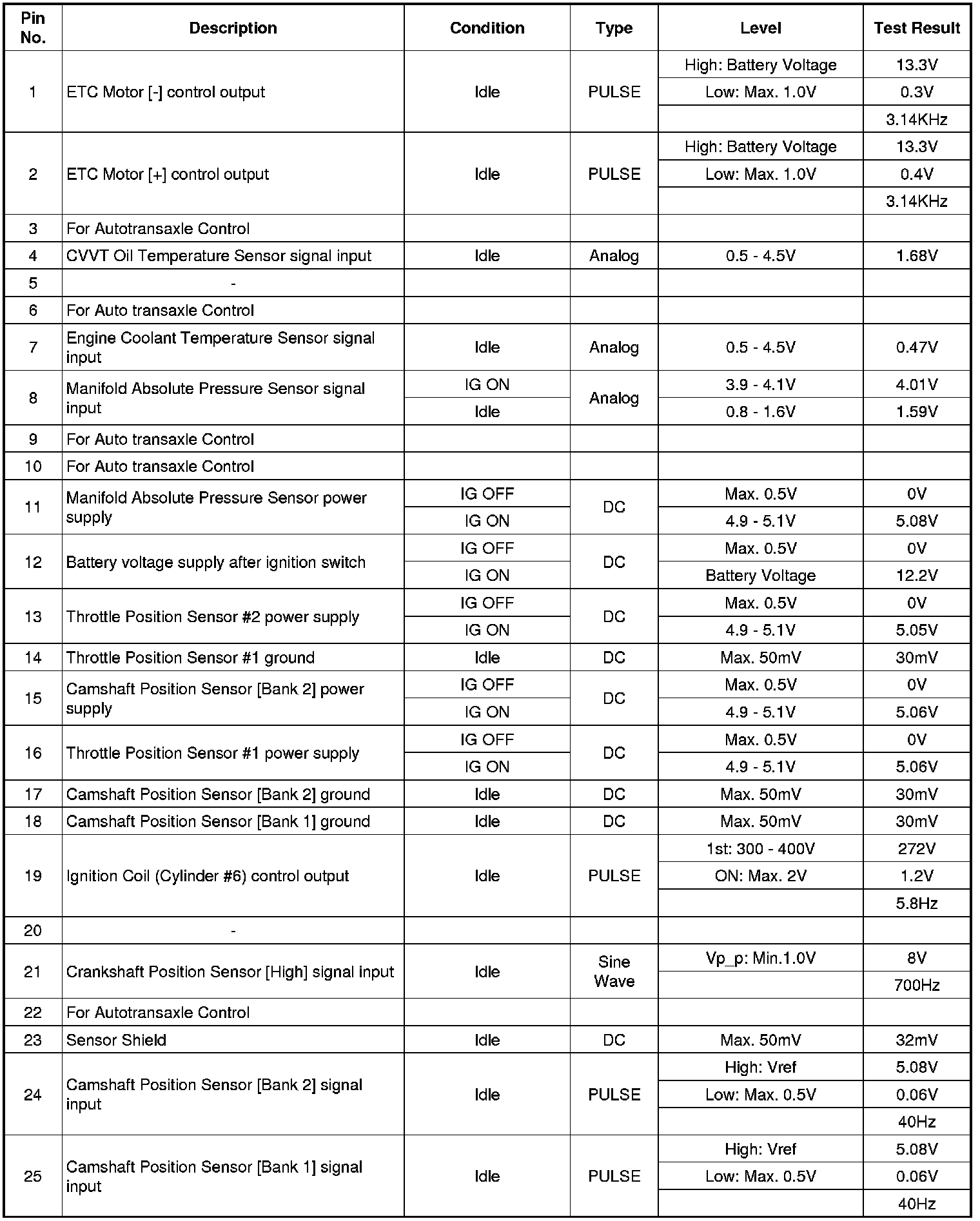

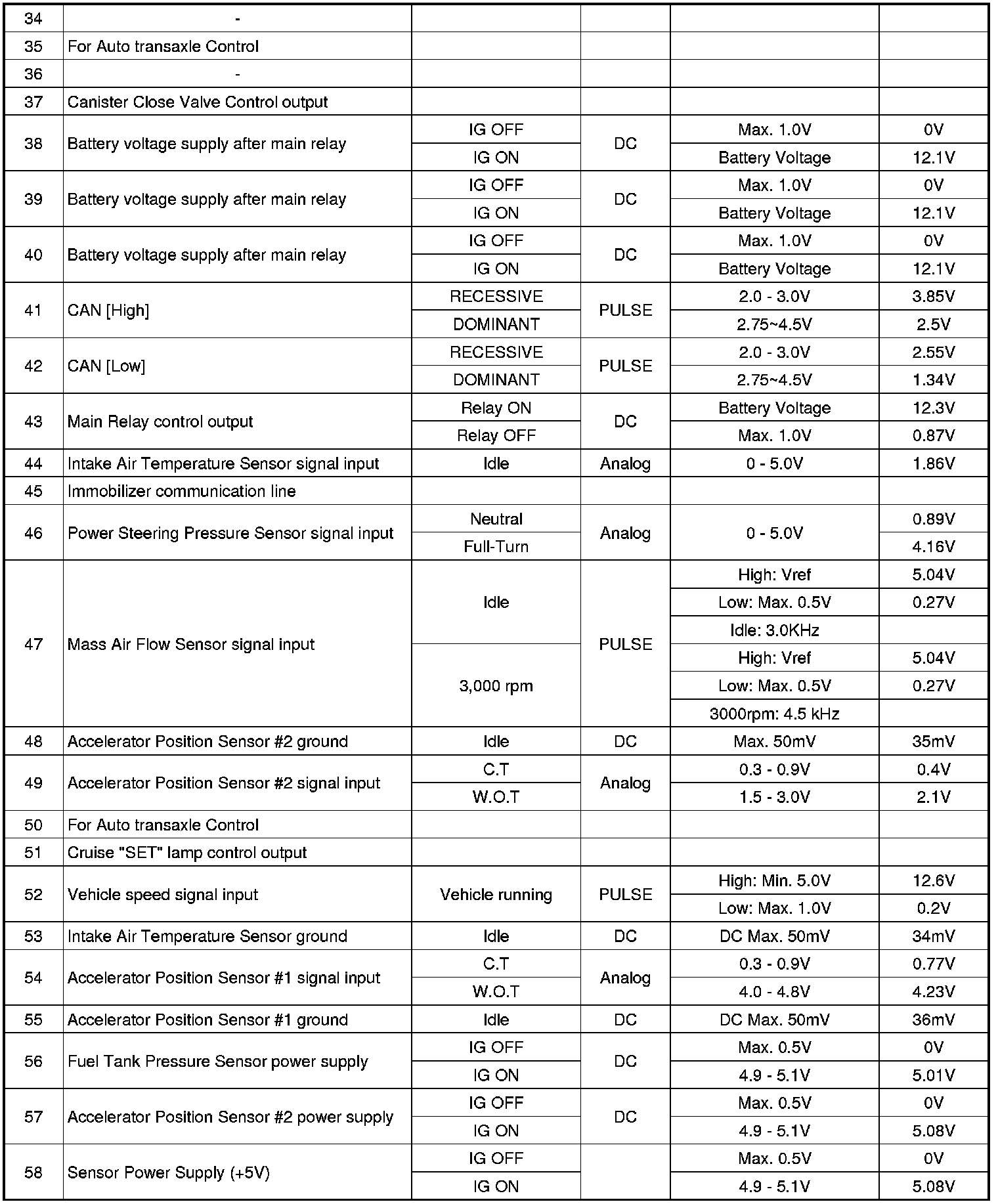

CONNECTOR [C144-B]
