Ball Joint

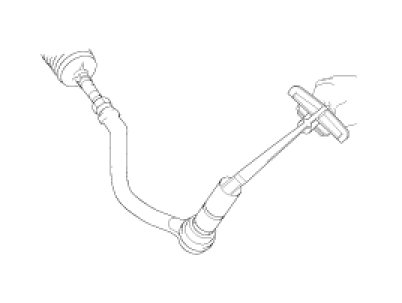

Ball Joint Wear LimitTie rod end
ball joint starting torque
30 kg-cm or less
If the starting torque exceeds the upper limit of the standard value, replace the tie rod end.
Even if the starting torque is below the lower limit of the standard value, check the play of the
ball joint and replace if necessary.
