Disassembly
Disassembly 1.
Remove the

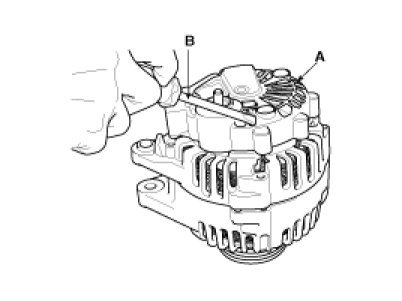

alternator cover(A) using a screw driver(B).
2.
Remove the slip ring guide(A).
3.

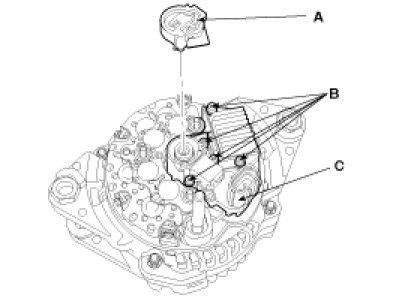

Loosen the mounting bolts(B) and disconnect the brush holder assembly(C).
4.

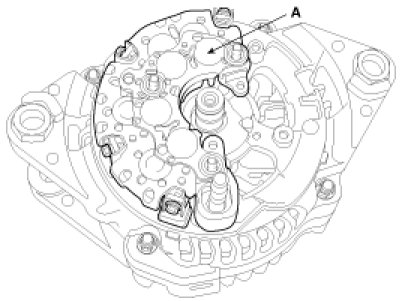

Remove the rectifier(A) with 4 screws.
5.

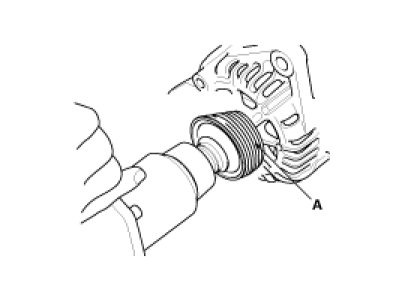

Remove the nut, pulley(A) and spacer.
6.

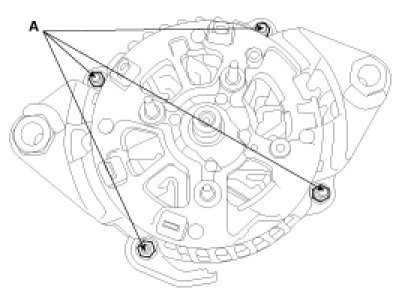

Loosen the 4 nuts(A).
7.

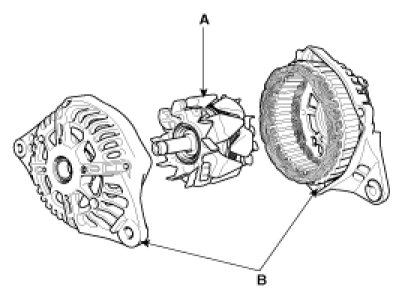

Disconnect the rotor(A) and cover(B).
8.
Reassembly is the reverse order of disassembly.
