Window Shade Switch: Testing and Inspection
Inspection 1.
Disconnect the negative (-) battery terminal.
2.

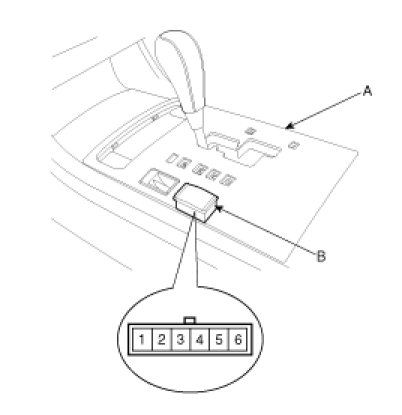

Remove the console upper cover (A) by using the scrapper.
3.
Remove the rear curtain switch (B) from the console upper cover (A) after removing the connector.
4.

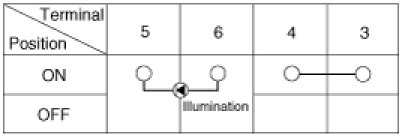

Check for continuity between the terminals. If the continuity is not as specified, replace the rear curtain switch.
