Rear Curtain Unit
Replacement 1.
Disconnect the negative (-) battery terminal.
2.
Remove the center facia panel. ( Refer to the Body group - Crash pad)
3.

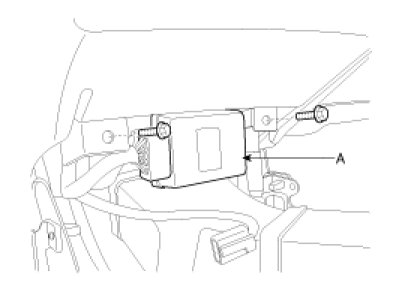

Remove the rear curtain unit (A) after removing mounting 2 nuts and a connector.
4.
Installation is the reverse of removal.
