Repair Procedures





Removal

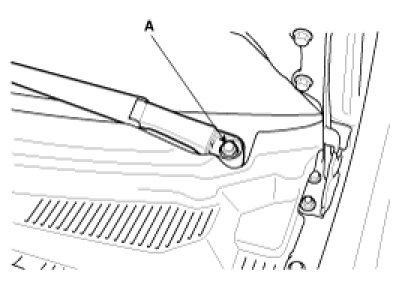

1. Remove the windshield wiper arm and blade after removing a nut (A).

Tightening torque :
22.5 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft)

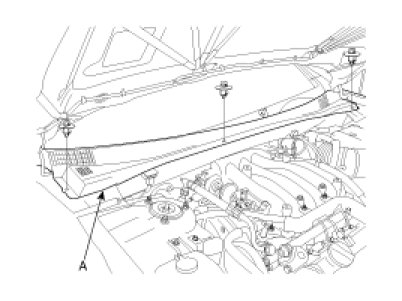

2. Remove the weather strip and the cowl top cover (A) after removing 3 fasteners.

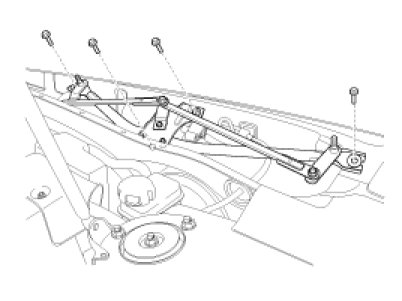

3. Remove the windshield wiper motor and linkage assembly after removing 4 bolts. Disconnect the wiper motor connector and windshield deicer connector from the wiper motor & linkage assembly.

Tightening torque :
7 - 11N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb-ft)




4. Installation is the reverse of removal.

Installation

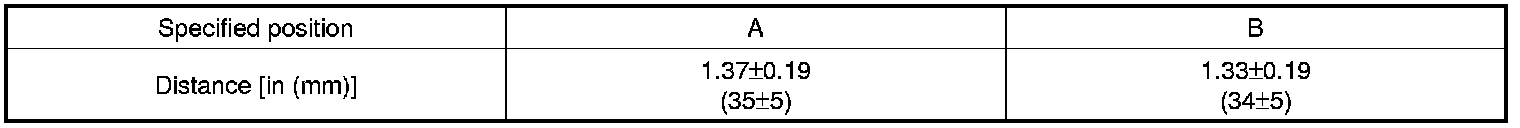

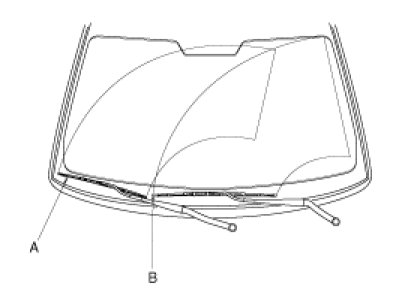

1. Install the wiper arm and blade to the specified position.

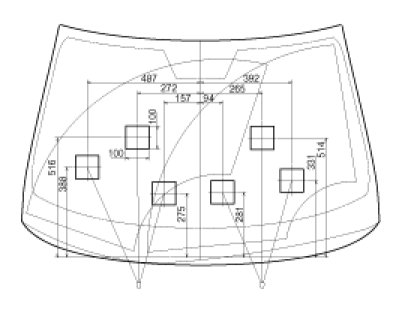

2. Set the washer nozzle on the specified spray position.
