Fluid - M/T: Service and Repair
Service Adjustment ProcedureTransmission Gear Oil LevelInspection 1.

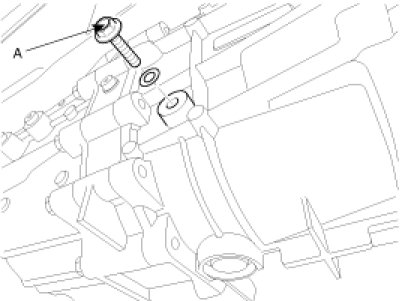

Remove oil filler plug(A).
2.

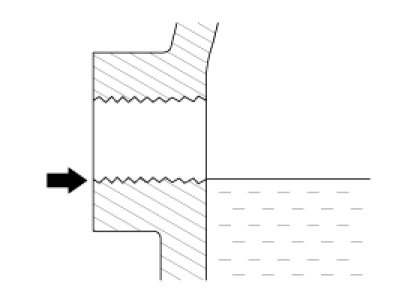

Check level with finger.
Oil level must be up to fill the hole, if not, add oil until it runs over.
3.
Install filler plug with a new gasket.
Tightening torque :
60 - 80 Nm (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)
