Repair Procedures
Replacement 1.
Disconnect the battery negative terminal(A).
2.

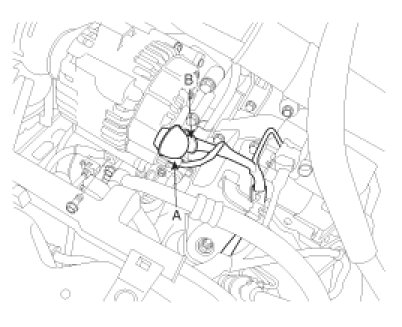

Disconnect the
alternator connector(B) and cable(A).
3.
Remove the drive belt (A) and
alternator (B).
Tightening torque :
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.7 lb-ft) 4.
Installation is the reverse order of removal.
