Repair Procedures

Starter

Removal

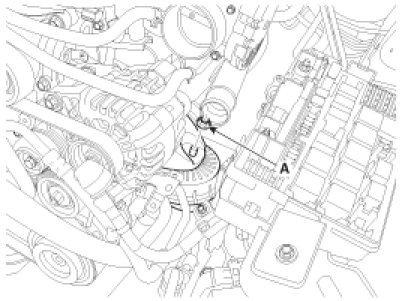

1. Disconnect the battery negative cable(A).




2. Set the jack under the engine oil pan.

NOTE:
Insert the rubber block between engine oil pan and jack to prevent the damage of oil pan.

3. Remove the LH engine mounting bracket nut (A).

Tightening torque :
63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)




4. Lift up the engine assembly slightly by using a jack to get access to the side of engine.

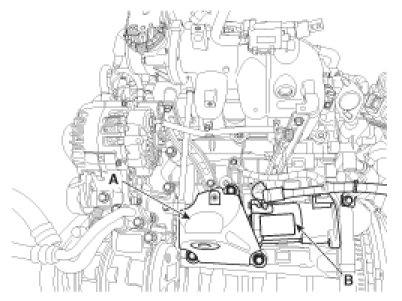

5. Remove the engine support bracket (A). And then remove cable and connector from starter (B).

Tightening torque :
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

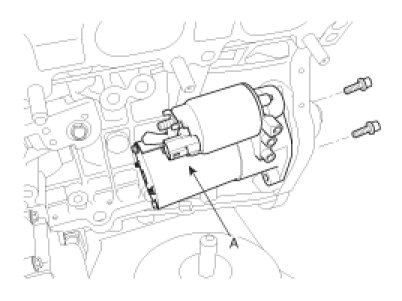

6. Remove the bolts and starter (A).

Tightening torque :
42.1 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.7 lb-ft)




7. Installation is the reverse of removal.
