Accessory Control Display: Service and Repair
ReplacementMulti Display Unit Replacement 1.

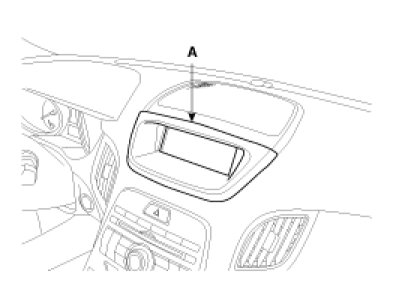

Remove the center fasica upper panel (A).
2.

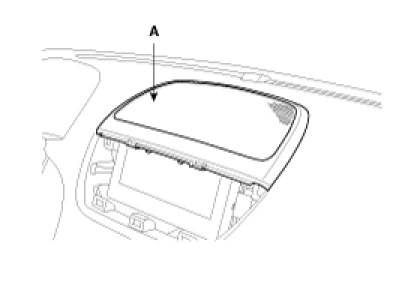

Remove the center speaker grille (A).
3.

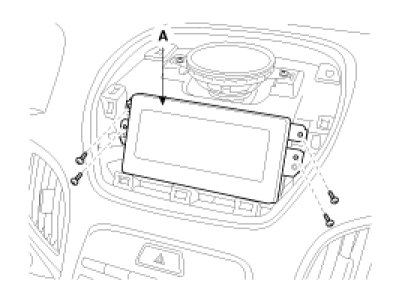

After loosening the mounting screws, remove the multi display unit (A).
4.

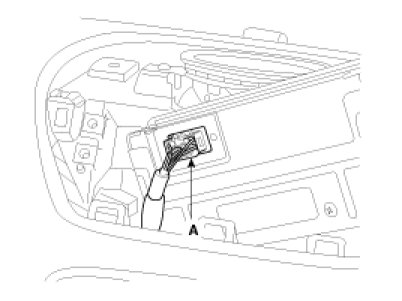

Disconnect the connector (A).
