Replacement

Replacement

Front Brake Pads (General caliper type)

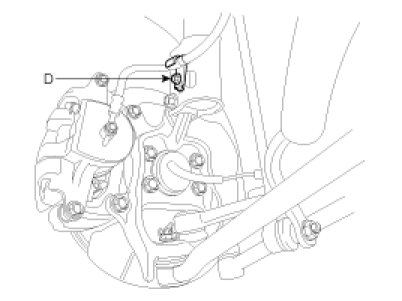

1. Remove the brake hose mounting bracket (knuckle mounting part : D).




2. Loosen the guide rod bolt (B) and remove the caliper body (A).

Tightening torque :
21.6 - 31.4N.m (2.2 - 3.2kgf.m, 15.9 - 23.1lb-ft)

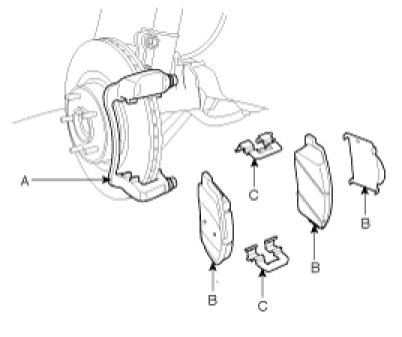

3. Replace pad shim (B), pad retainers (C) and brake pads (B) in the caliper bracket (A).





Front Brake Pads (Brembo caliper type)

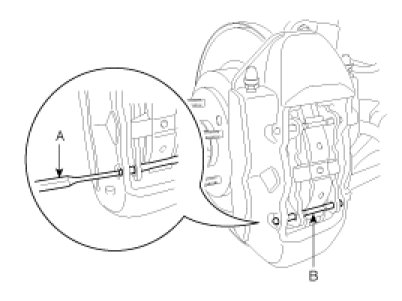

1. Remove the guide pin (B) of the lower part with the pin punch (A).

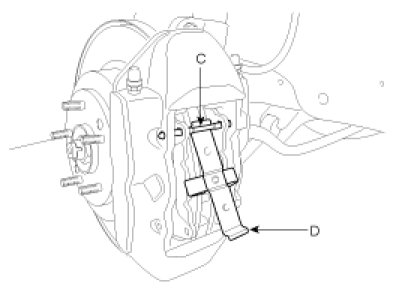

2. Remove the guide pin (C) of the upper part and retraction spring (D).

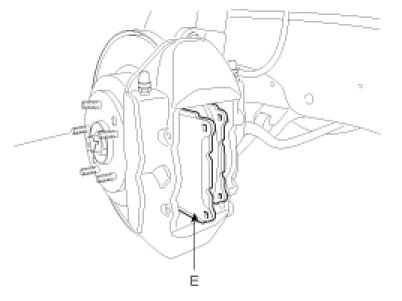

3. Replace brake pads (E) at the caliper body.
