Evaporator Temperature Sensor / Switch: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.

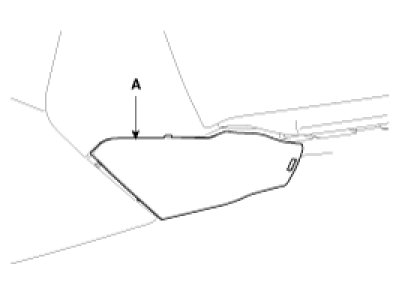

2. Remove the crash pad lower cover (A).

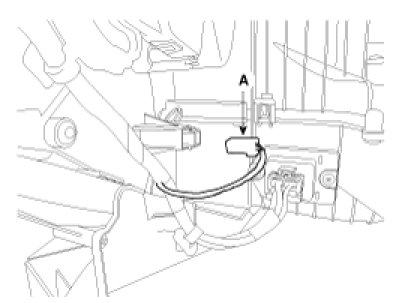

3. Disconnect the evaporator sensor connector (A).

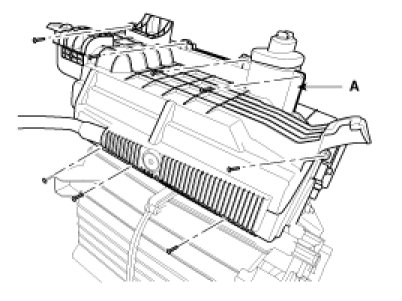

4. Remove the heater unit lower cover (A).

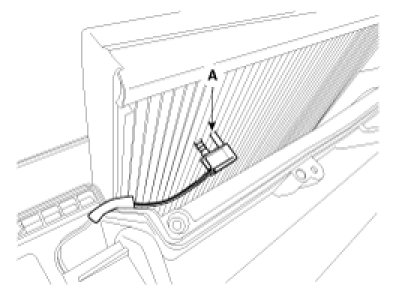

5. Remove the evaporator temperature sensor (A) from evaporator core.

CAUTION:
- Take care that evaporator core pins are not bent.

6. Installation is the reverse order of removal.
