Repair Procedures





Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the steering wheel.

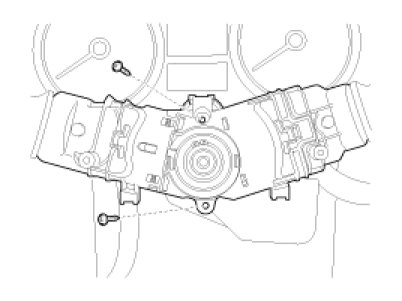

3. Remove the steering column upper and lower shrouds after removing 3 screws.

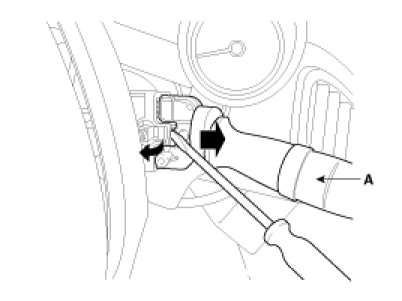

4. If necessary of removing the wiper & washer switch, release the lock of wiper switch using tool without removing the steering wheel.

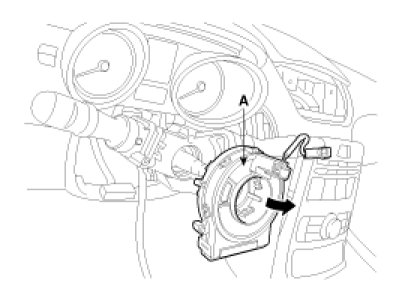

5. Remove the clock spring(A).




6. Loosen the screws from the multifunction switch assembly.

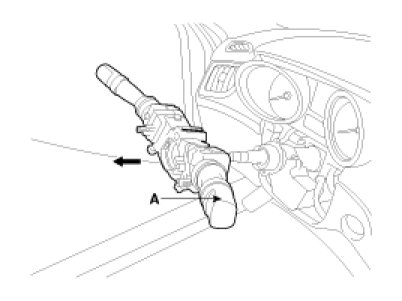

7. Remove the multifunction switch assembly(A) after loosening the connectors.






Installation

1. Install the multifunction switch.
2. Install the clock spring.
3. Install the steering column upper and lower shrouds.
4. Install the steering wheel.

NOTE:
Make sure the multifunction switch connectors are plugged in properly.
