Oil Filter: Service and Repair
RemovalOil Filter Assembly 1.

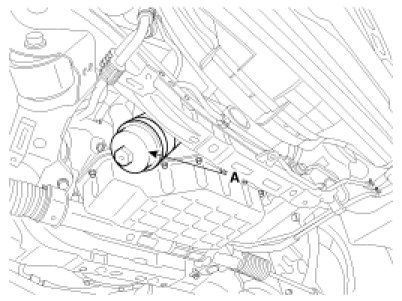

Wait for 5 minutes after loosening the
oil filter cap to drain well the oil in the oil filter.
2.

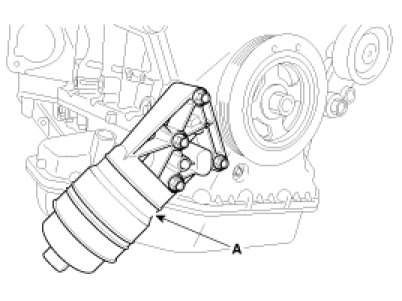

Remove the
oil filter body.
InstallationOil Filter Assembly 1.
Install the
oil filter body.
Tightening torque :
19.6 - 21.6N.m (2.0 - 2.2kgf.m, 14.5 - 15.9lb-ft) CAUTION: -
All rubber gaskets must not be damaged by assembling parts.
-
Always use a new oil seal.
