Repair Procedures





Replacement

Passenger Compartment Junction Box
1. Disconnect the negative(-) battery terminal.
2. Remove the crash pad lower panel(A).

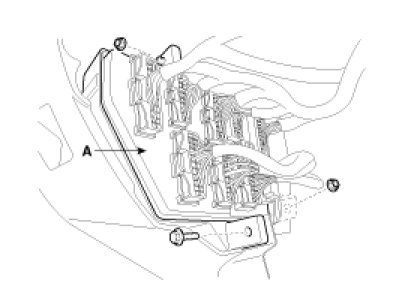

3. Remove the passenger compartment junction box(A) after loosening the mounting nut(2EA) and bolt(1EA) and disconnecting the connectors.




4. Installation is the reverse of removal.
