Repair Procedures

Replacement

1. Disconnect the battery negative cable

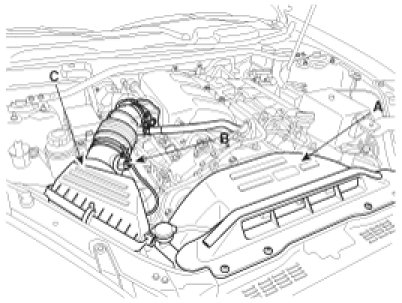

2. Remove the air duct (A).
3. Disconnect air cleaner assembly (C) after removing the AFS connector (B).

Tightening torque
Bolt : 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
Clamp : 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

4. Remove the starter cover (A).

Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

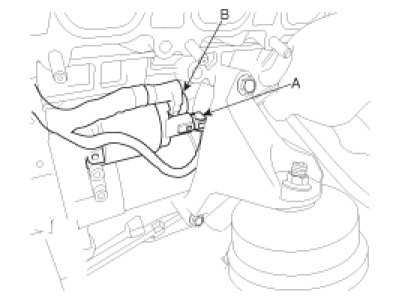

5. Disconnect the startor connector (A) and cable (B) from the 'B' terminal.




6. Set a jack to the oil pan.

NOTE:
Insert a lubber block between jack and oil pan to prevent the oil pan damage.

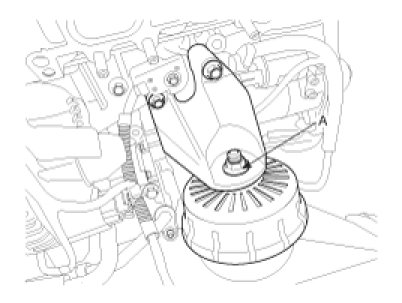

7. Loosen the engine mounting nut (A).

Tightening torque :
63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)





NOTE:
Lift up the engine engine assembly slightly by using a jack to get access to the side of engine.

8. Remove the RH engine support bracket (A).
9. Remove the starter (B).

Tightening torque :
Support bracket bolt : 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)
Starter bolt : 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
Starter nut : 42.1 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.2 - 39.8 lb-ft)
