Heated Glass Element Switch: Service and Repair

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the console upper cover(A).

3. Remove the center fascia lower panel(A).

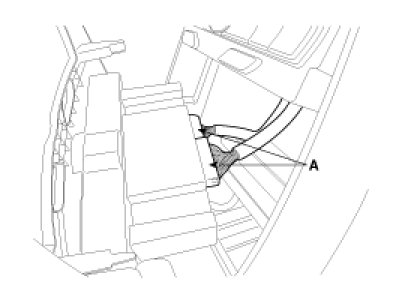

4. Disconnect the heater control unit connector(A).

5. Remove the heater control unit contained the rear window defogger switch from the center fascia panel.

Installation

1. Install the heater control unit.
2. Install the center fascia panel.
3. Install the console upper cover.
