Replacement
ReplacementRear Brake Pads 1.

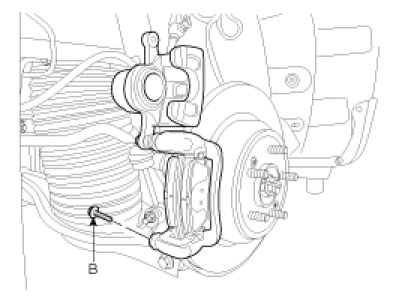

Loosen the guide rod bolt (B) and pivot the caliper up out of the way.
Tightening torque :
21.6 - 31.4N.m (2.2 - 3.2kgf.m, 15.9 - 23.1lb-ft)
2.

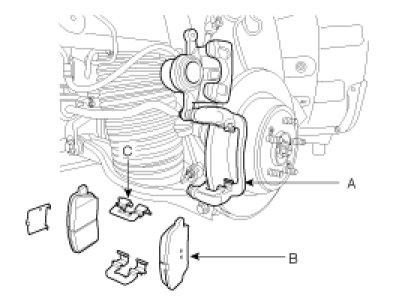

Replace pad shim, pad retainers (C) and
brake pads (B) in the caliper bracket (A).
