Scan Tool Testing and Procedures

Diagnosis With Scan Tool
1. It will be able to diagnose defects of cluster (CLU) with scan tool quickly. Scan tool can operates actuator forcefully, input/output value monitoring and self diagnosis.

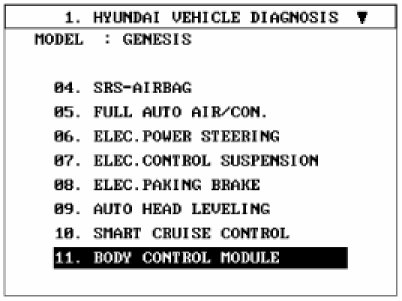

2. Select model and "BCU".

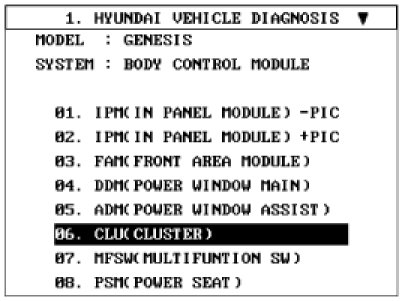

3. Select the "CLU (Cluster)" to check.

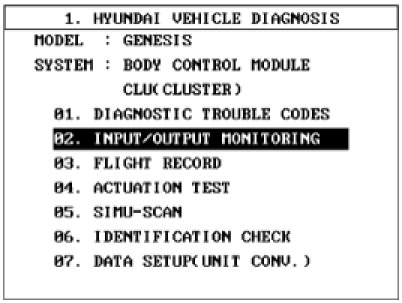

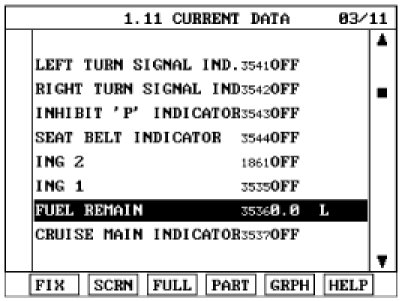

4. Select "Input/output monitoring", if you will check current data of cluster system. It provides input/output status of cluster.

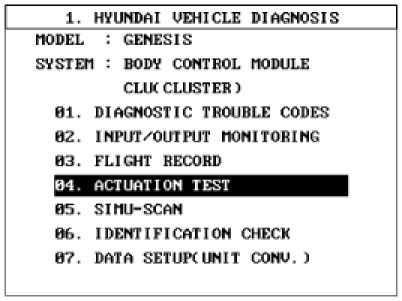

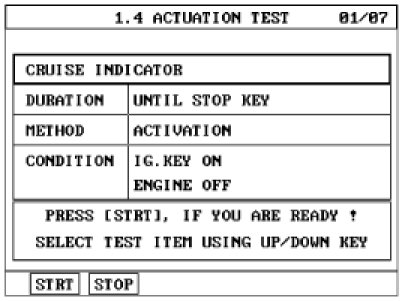

5. If you will check the cluster operation forcefully, select "Actuation test".

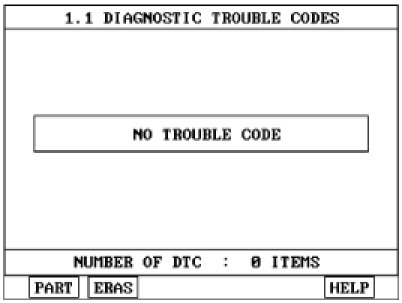

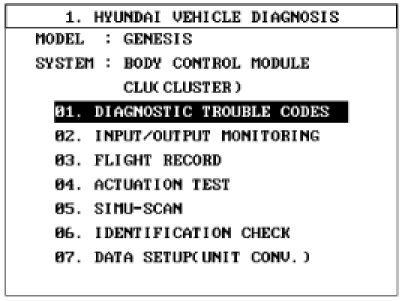

6. To check the DTC of the each module, select "Diagnostic trouble codes"
