Repair Procedures

Replacement

1. Disconnect the battery negative cable

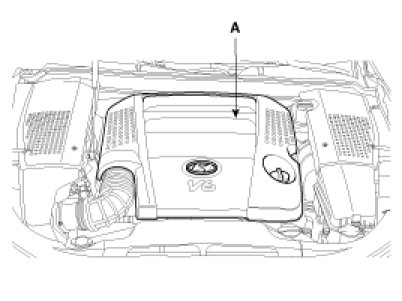

2. Remove the engine cover (A).




3. Remove the oil level gauge tube (A).




4. Disconnect the alternator connector (A) and cable (B) from the 'B' terminal.




5. Remove the drive belt (A).




6. Remove the under cover.
7. Set a jack to the oil pan.

NOTE:
Insert a lubber block between jack and oil pan

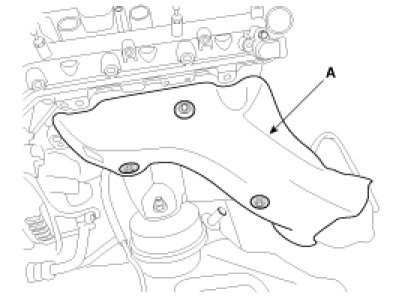

8. Remove the LH exhaust manifold heat protector (A).

Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)





9. Loosen the engine mounting nut (A) and remove the engine mounting bracket (B).

Tightening torque :
(A) : 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)
(B) : 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)





10. Lift up the engine engine assembly slightly by using a jack to get access to the side of engine.
11. Remove the alternator (A).

Tightening torque :
26.5 - 33.3 N.m (2.7 - 3.4 kgf.m, 19.5 - 24.6 lb-ft)

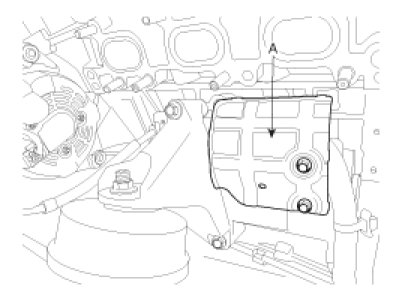

12. Remove the starter cover (A).

Tightening torque :
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

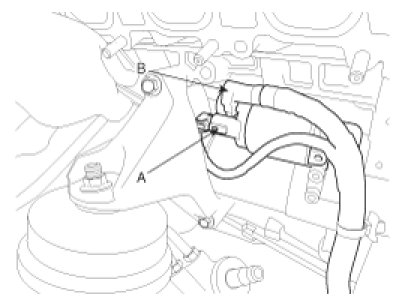

13. Disconnect the startor connector (A) and cable (B) from the 'B' terminal.




14. Remove the starter (A).

Tightening torque :
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)





15. Installation is reverse order of removal.
