Smart Cruise Control Switch
Removal 1.
Disconnect the battery (-) terminal.
2.
Remove the air-bag module from the steering wheel. ( Refer to RT group)
3.
Disconnect the smart cruise control main switch connect.
4.

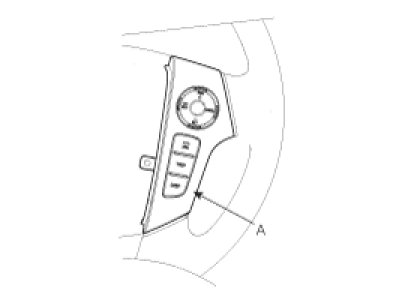

Remove the smart
cruise control switch (A) with three screws.
5.
Installation is the reverse order of removal.
