Data Link Connector

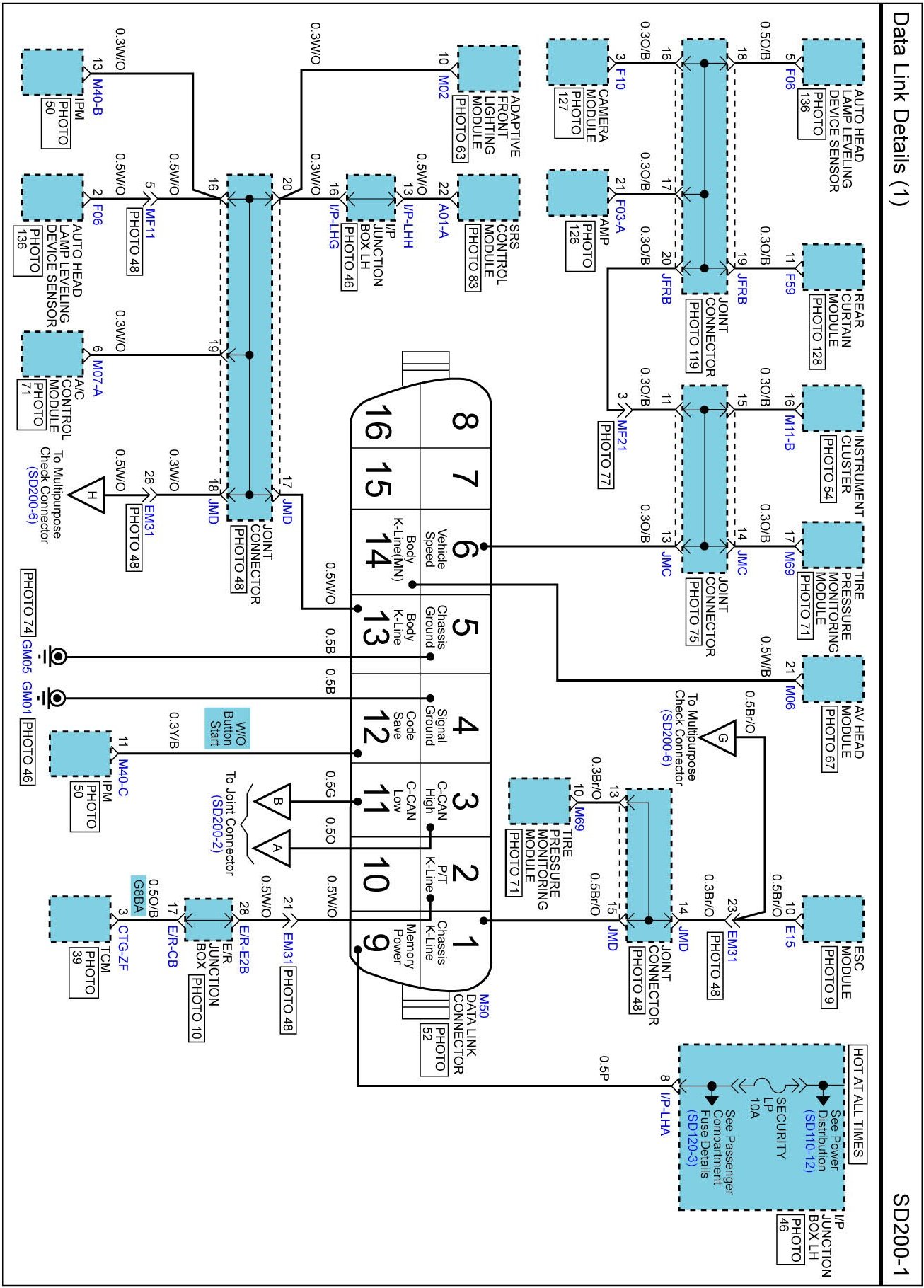

SD200-1 Data Link Details (1):

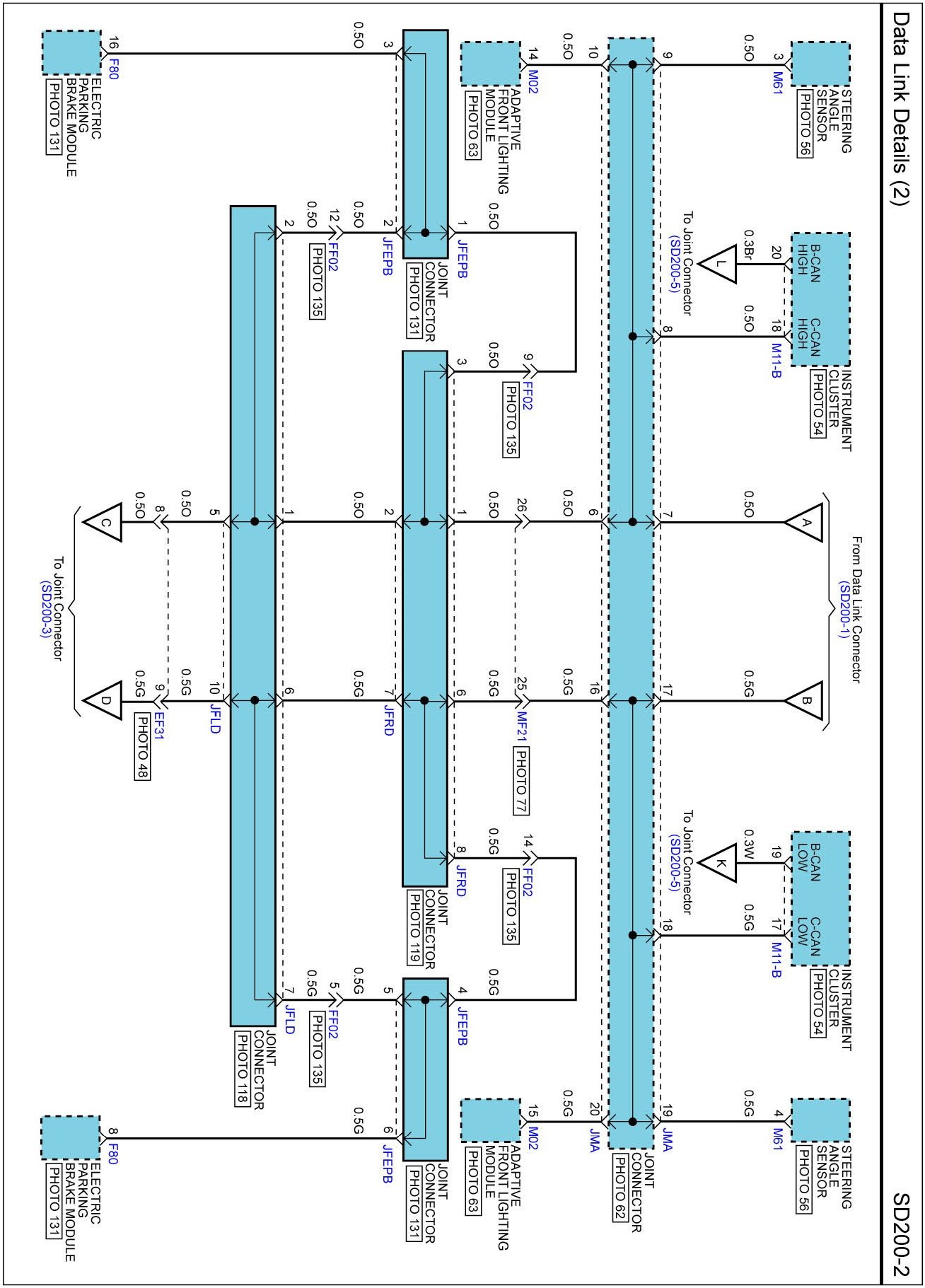

SD200-2 Data Link Details (2):

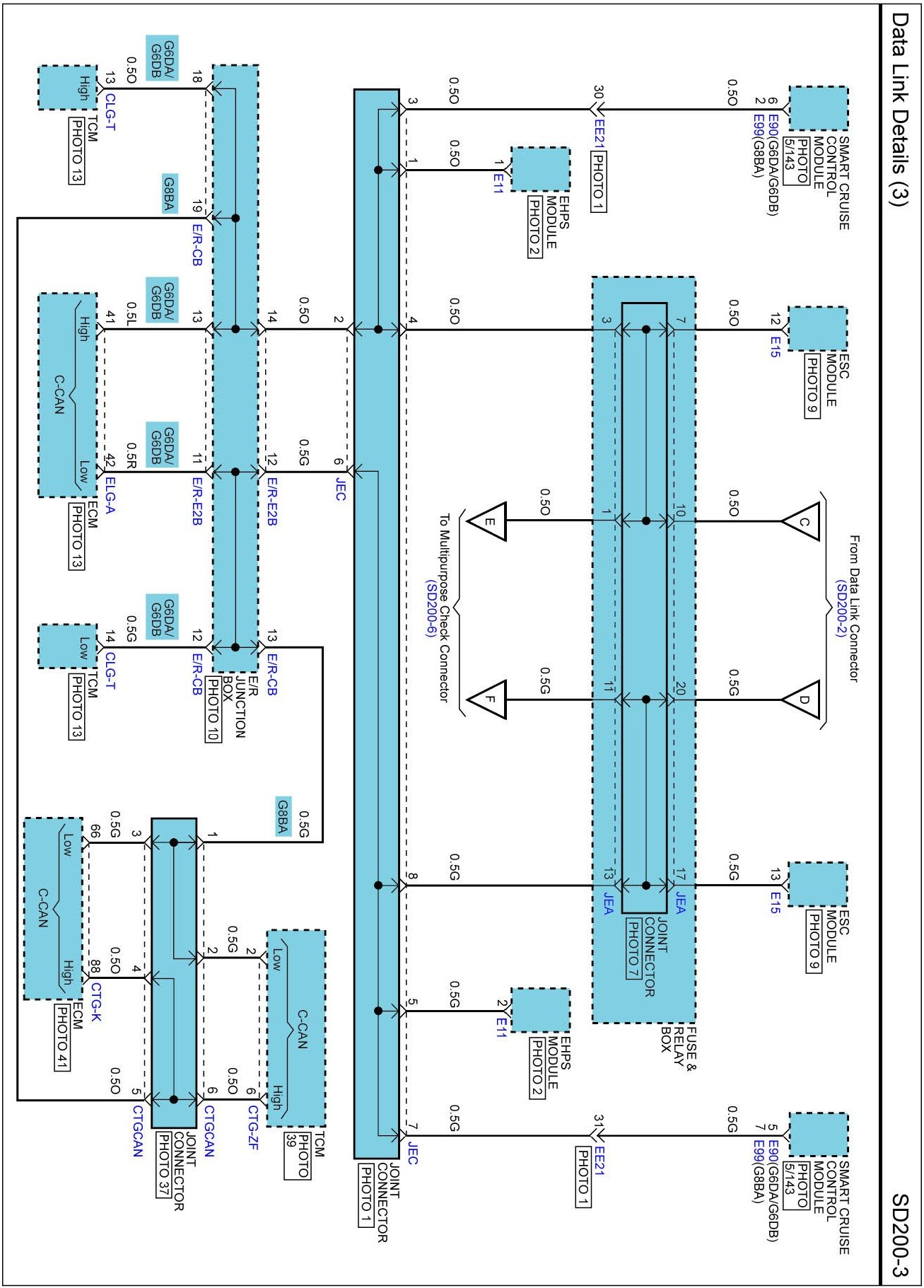

SD200-3 Data Link Details (3):

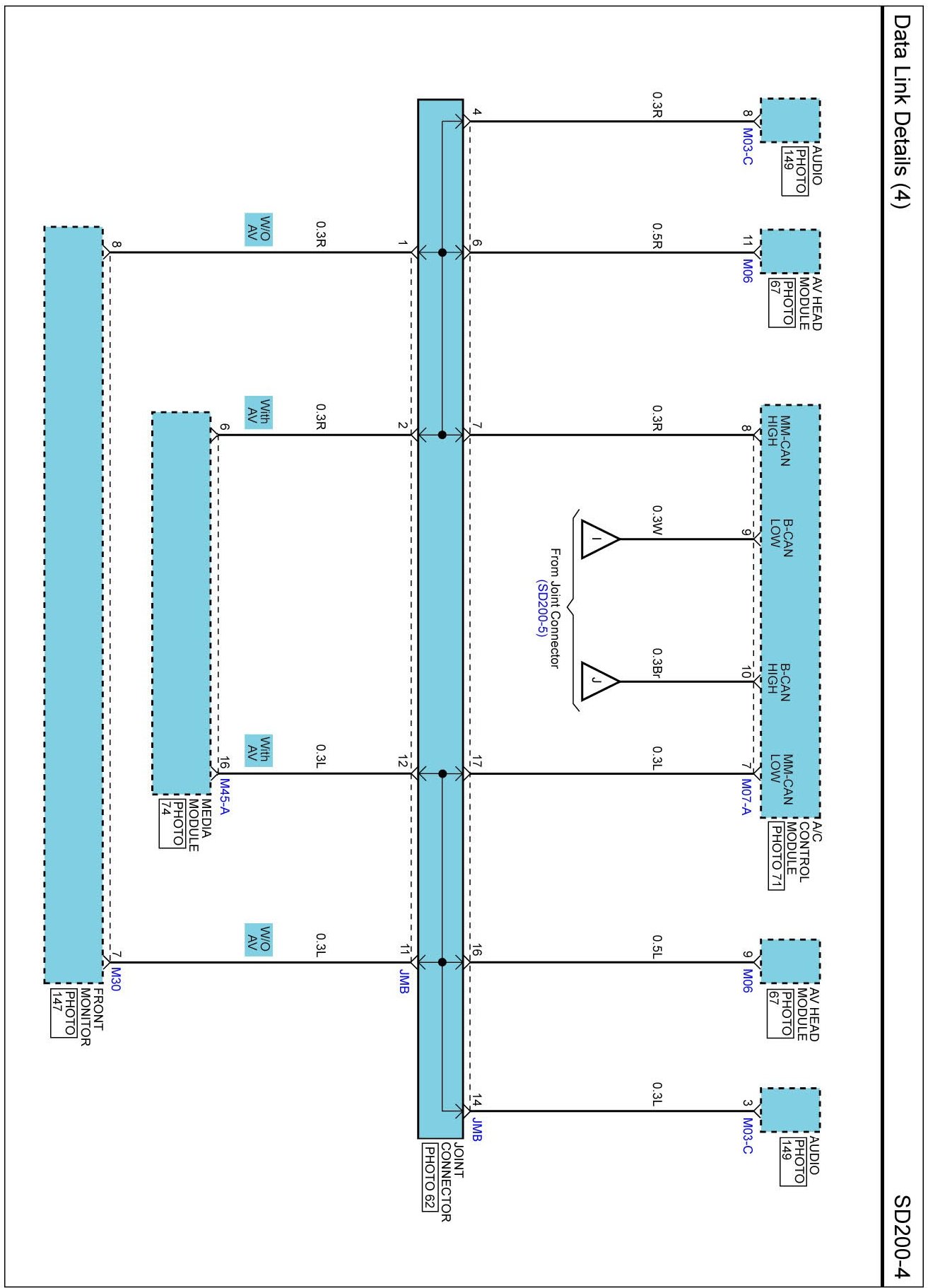

SD200-4 Data Link Details (4):

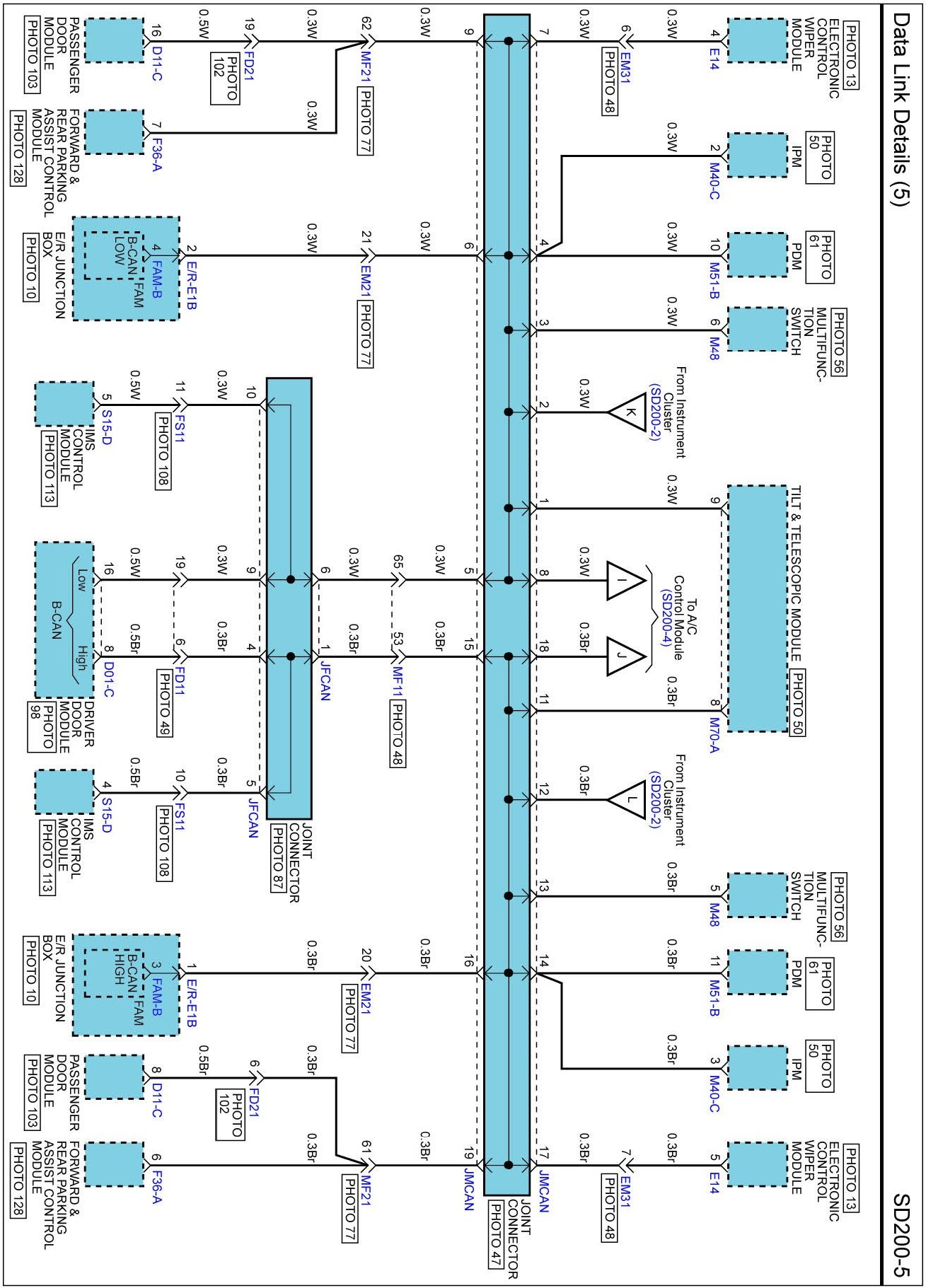

SD200-5 Data Link Details (5):

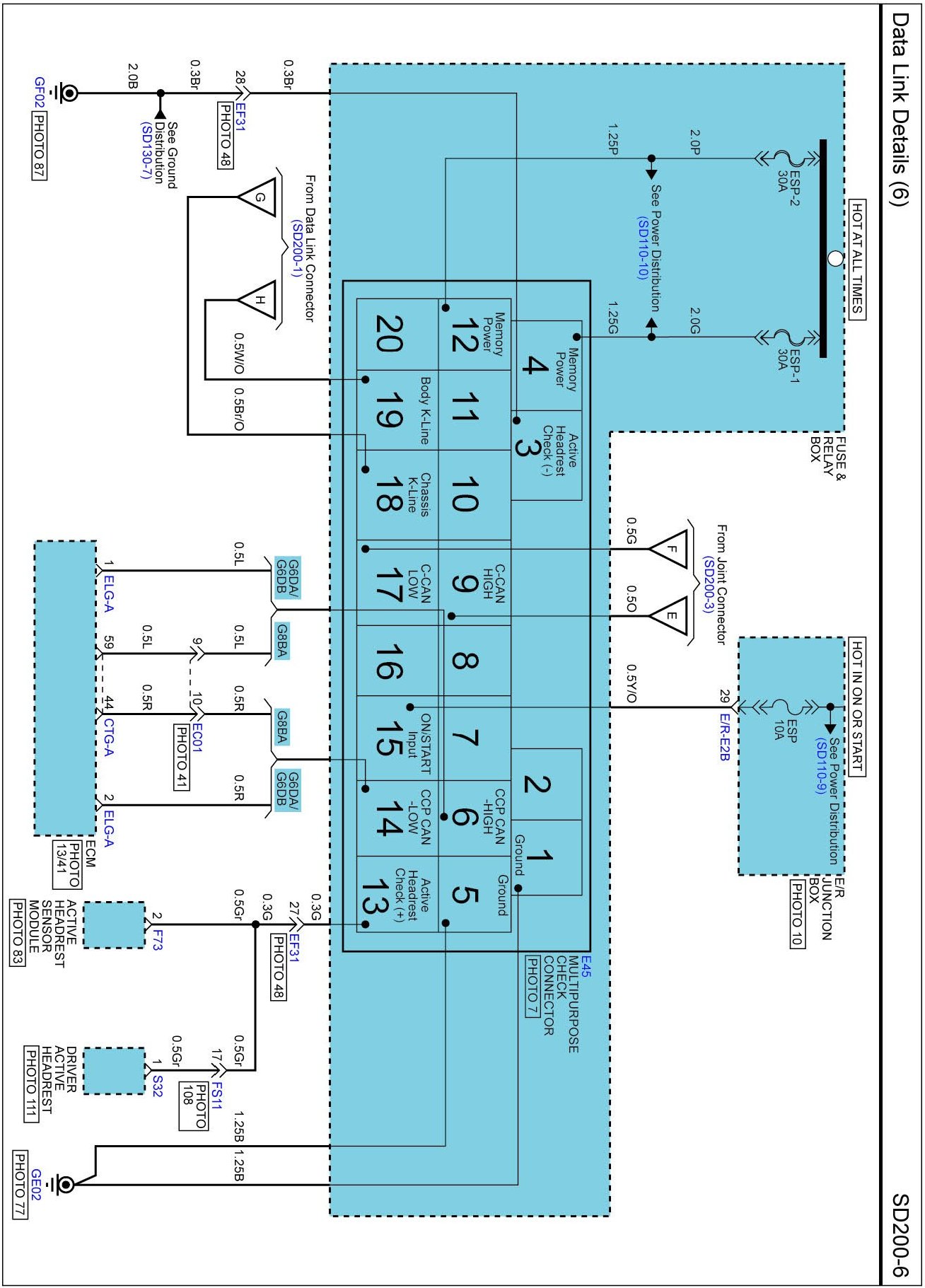

SD200-6 Data Link Details (6):

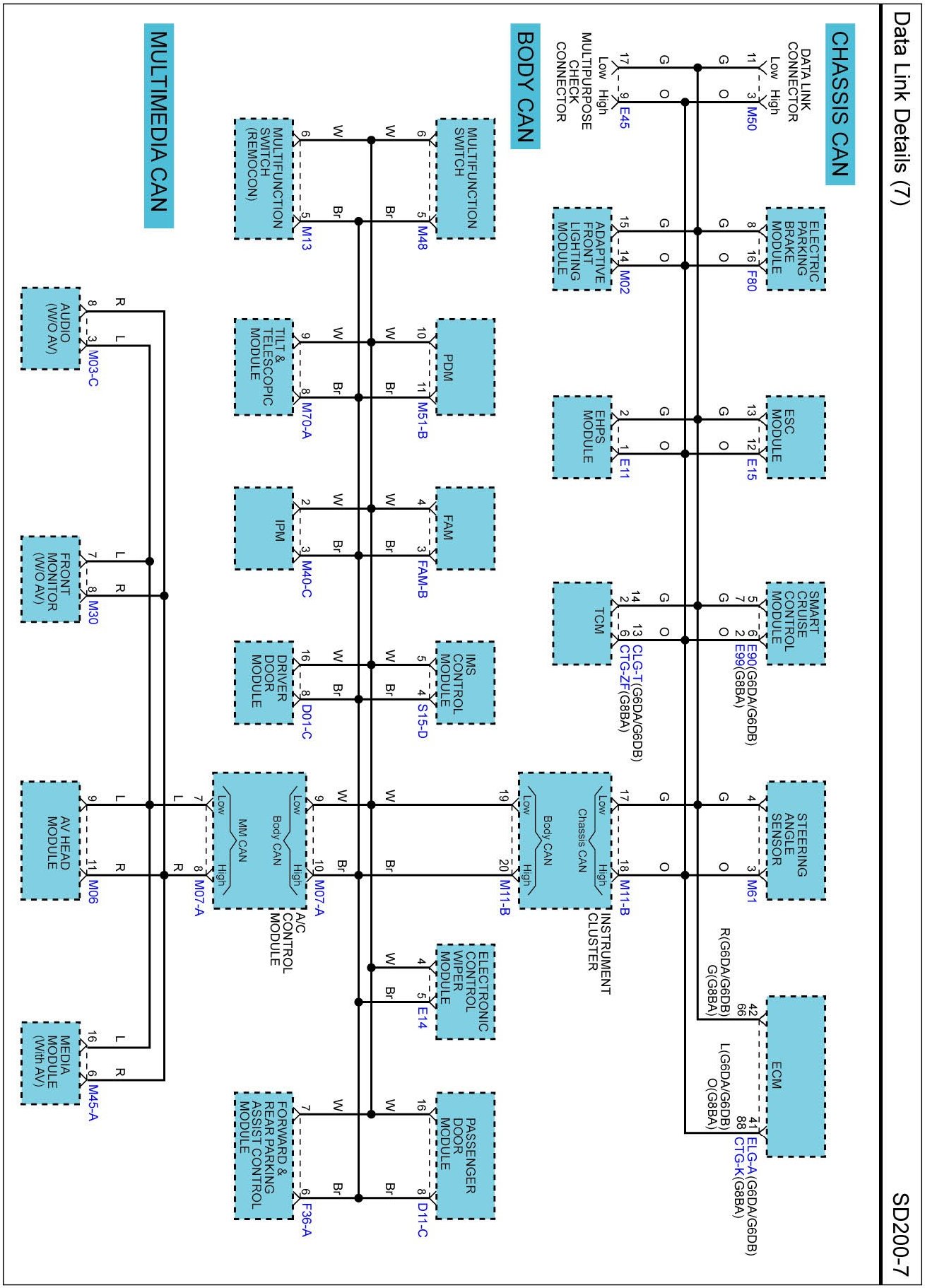

SD200-7 Data Link Details (7):

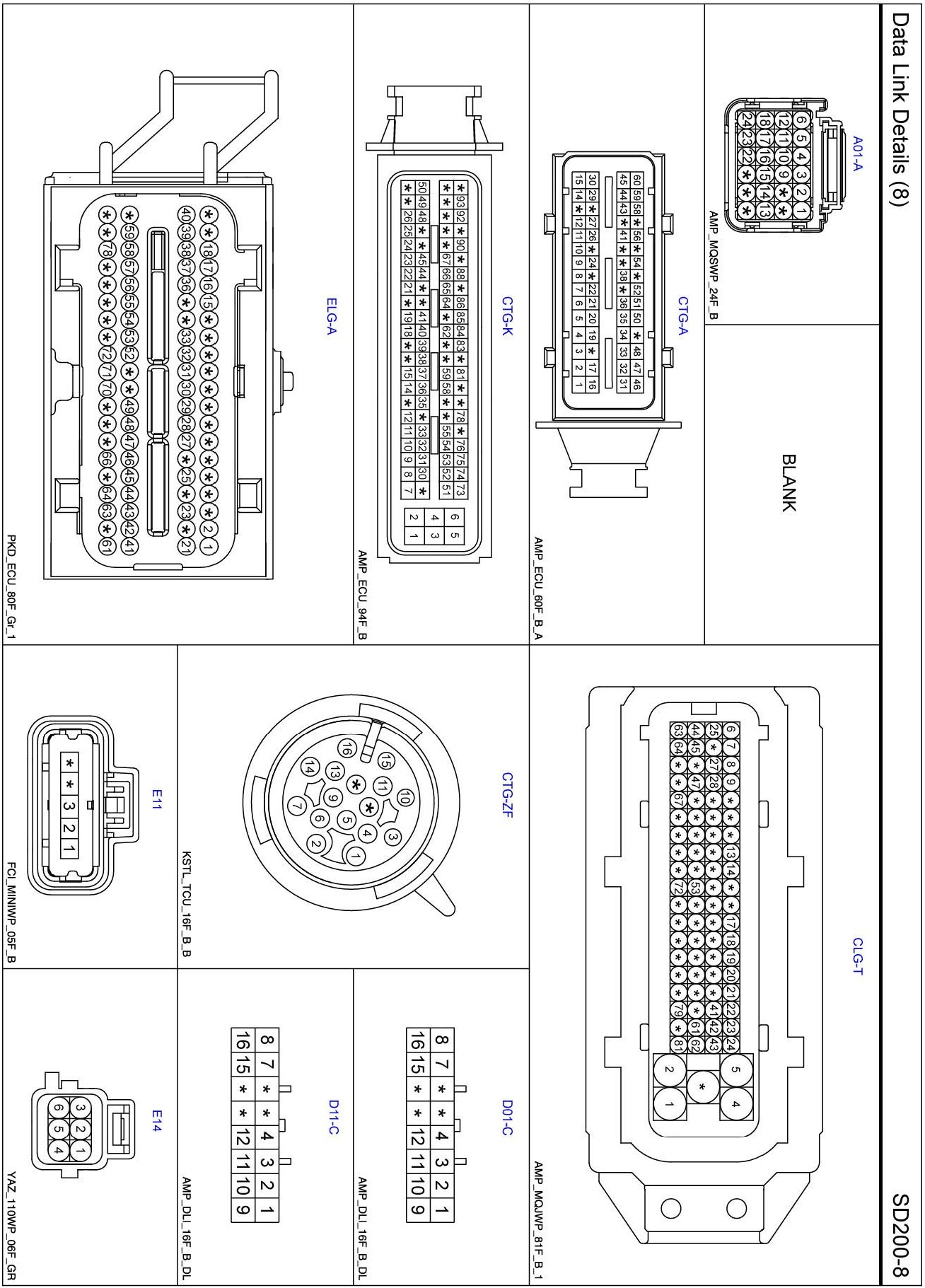

Data Link Details (8) Connector Pin Outs:

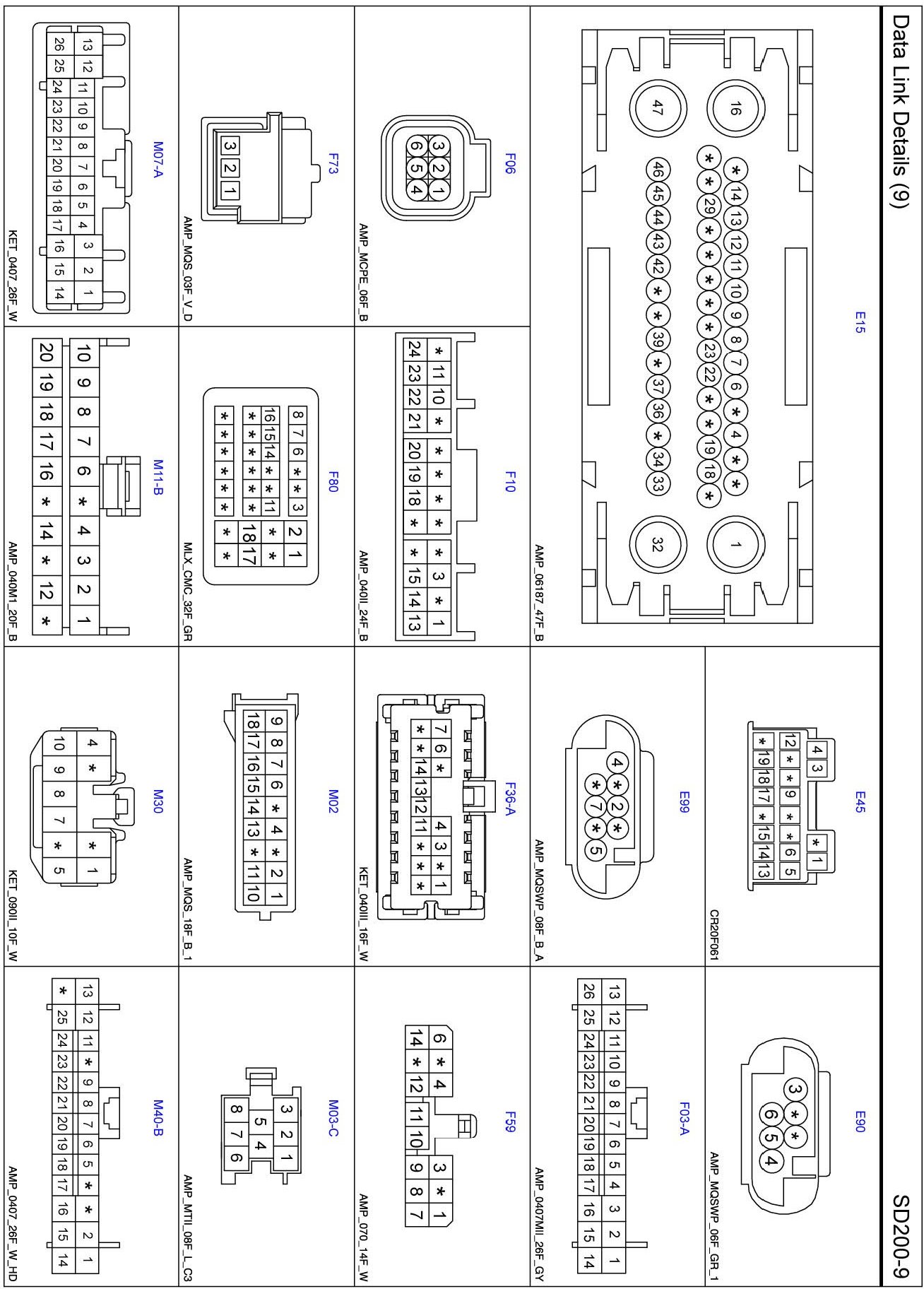

Data Link Details (9) Connector Pin Outs:

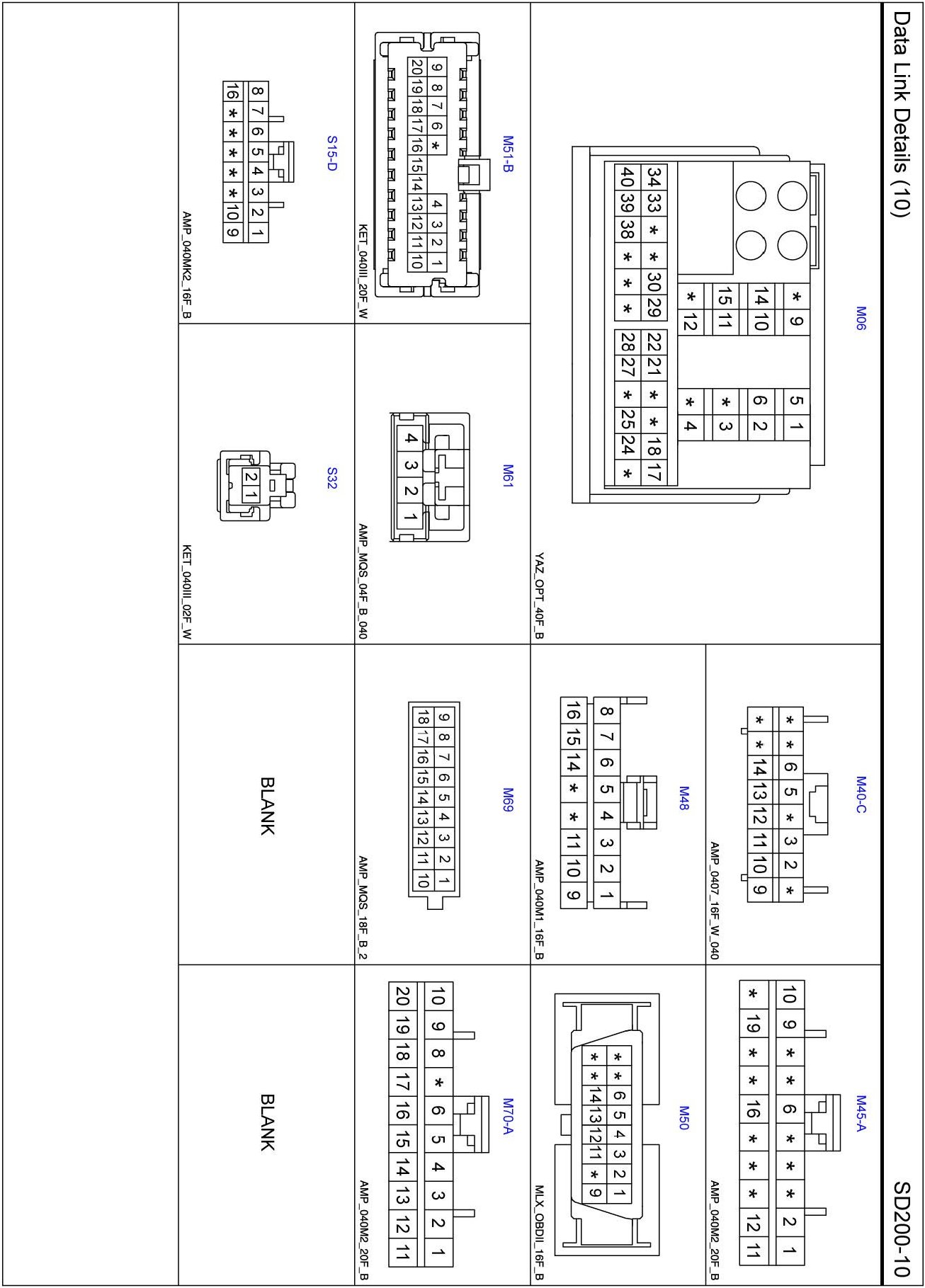

Data Link Details (10) Connector Pin Outs:

Diagrams: Other diagrams referred to by SD number (i.e. SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams by Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that accompany most sets of system diagrams.
