Lighting System

Removal

1. Disconnect the negative (-) battery terminal.

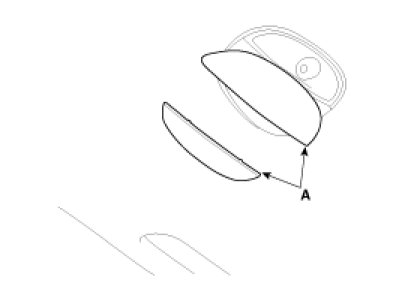

2. Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver.

3. Remove the lamp reflector (A) from the room lamp with a flat-tip screwdriver

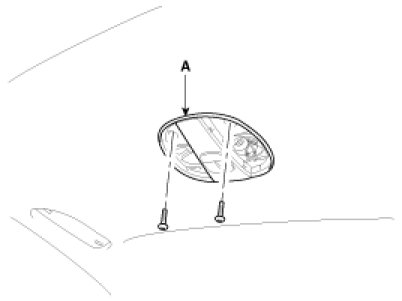

4. Remove the room lamp (A) after removing the screws.

5. Replace the room lamp after removing the connector (A).

Installation

1. Connect the connector and install the room lamp.
2. Install the lamp reflector and lamp lens.
