Ignition Coil: Service and Repair
Ignition coil 1.

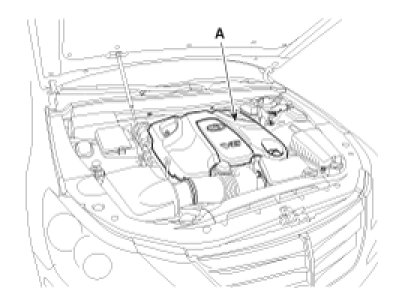

Remove the engine cover (A).
2.

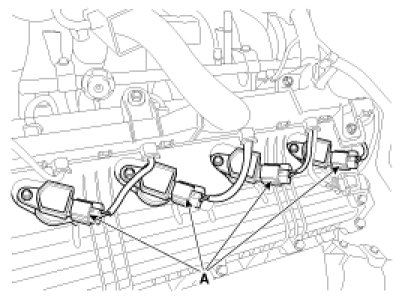

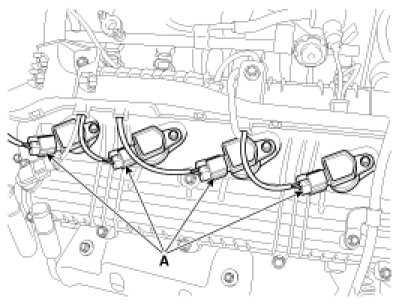

Disconnect the
ignition coil connectors (A).
3.

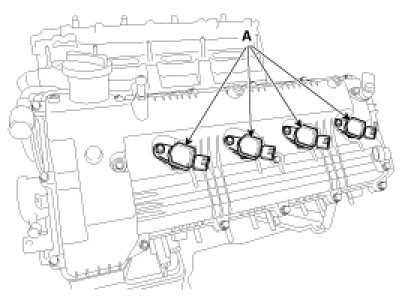

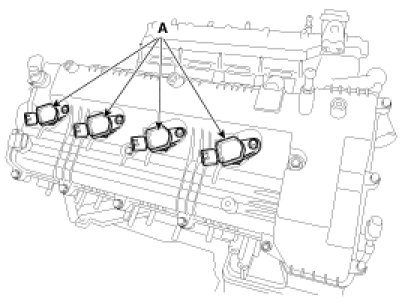

Remove the
ignition coils (A).
Tightening torque :9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
4.
Installation is reverse order of removal.
