Window Shade Motor: Service and Repair
Removal 1.
Disconnect the negative (-) battery terminal.
2.
Remove the right trunk trim.
3.

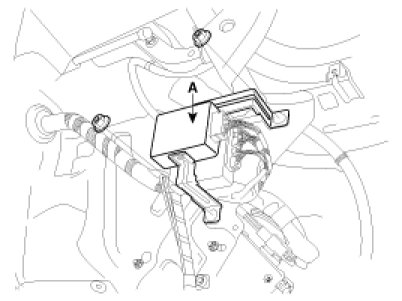

Remove the rear curtain unit (A) after removing nuts (2EA) and connector.
Installation 1.
Install the rear curtain unit and connector.
2.
Install the rear right trunk trim.
3.
Connect the negative (-) battery terminal.
