Transaxle Control Module (TCM)
ReplacementNOTE:In the case of the vehicle equipped with immobilizer or button engine start system, perform "Key Teaching" procedure together .
1.
Turn
ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the air cleaner assembly .
3.

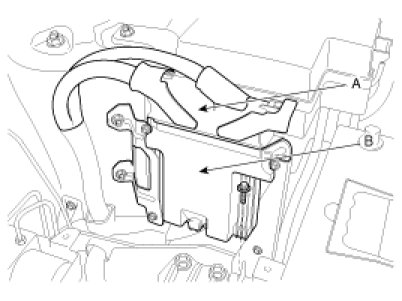

Remove the TCM connector(A) after removing the TCM(B).
TCM installation bolt:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
