Inside Handle Replacement





Replacement

Inside Handle Replacement
1. Remove the front door trim.

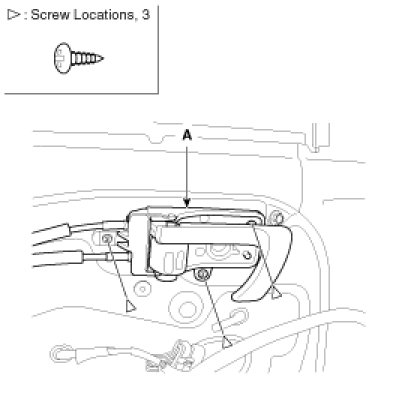

2. Loosen the inside handle (A) mounting screw.

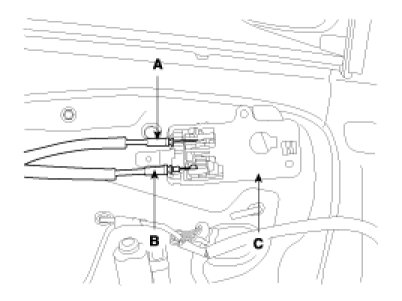

3. Disconnect the lock cable (A) and inside handle cable (B).
4. Remove the inside handle(C).




5. Installation is the reverse of removal.

NOTE:
- Make sure the door locks and open properly.
