Trip Computer: Service and Repair





Replacement

1. Disconnect the negative (-) battery terminal.

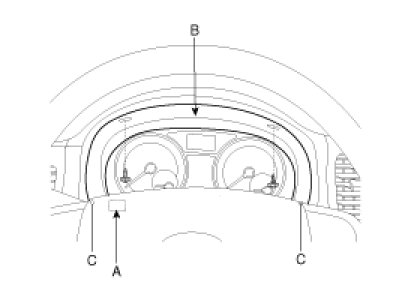

2. Remove the cluster facia panel (B) after disconnecting the connector of trip switch (A) and loosening the 2 screws take care of fixing clips(C).

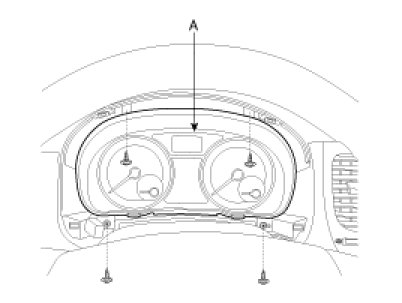

3. Pull out the cluster (A) from the housing after removing 4 screws.

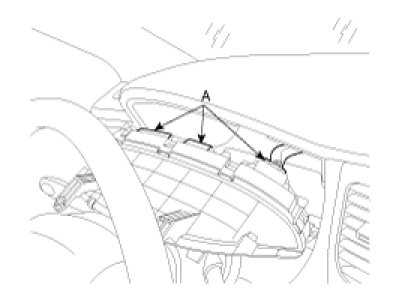

4. Disconnect the cluster connector (A) and then remove the cluster.




5. Installation is the reverse of removal.

Inspection

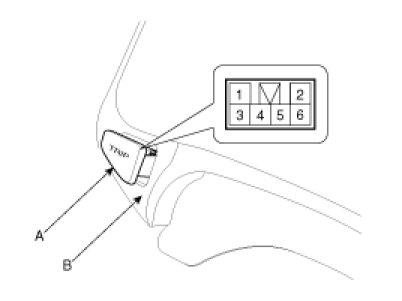

1. Remove the cluster facia panel (B).

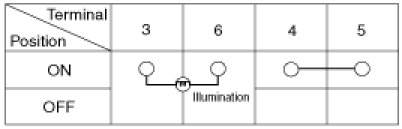

2. Operate the switch (A) and check for continuity between terminals with an ohmmeter.
