Engine Control - P0106 Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance Component Inspection

Component Inspection

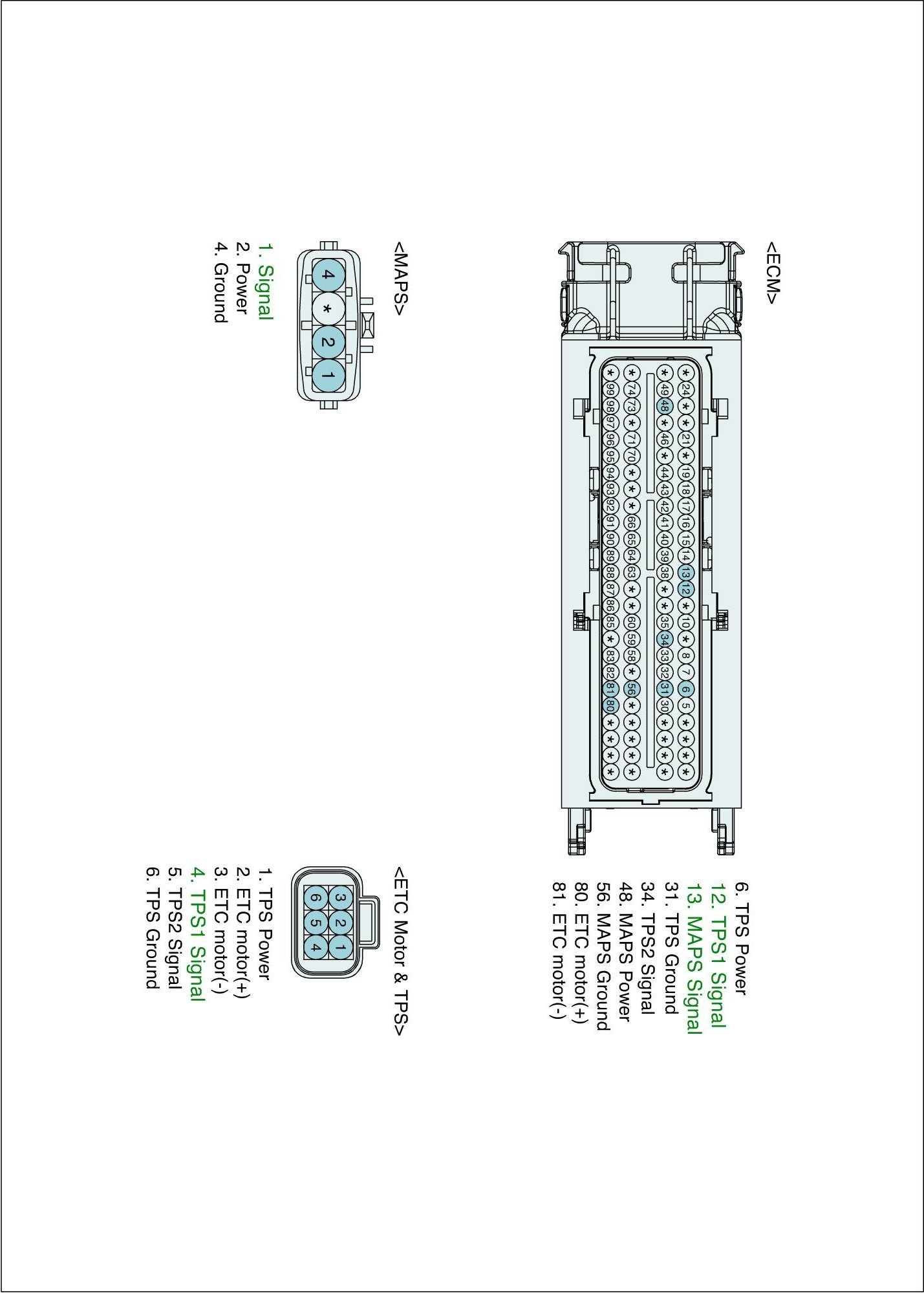

Check MAPS Performance
1. IG "OFF" and install a scantool.

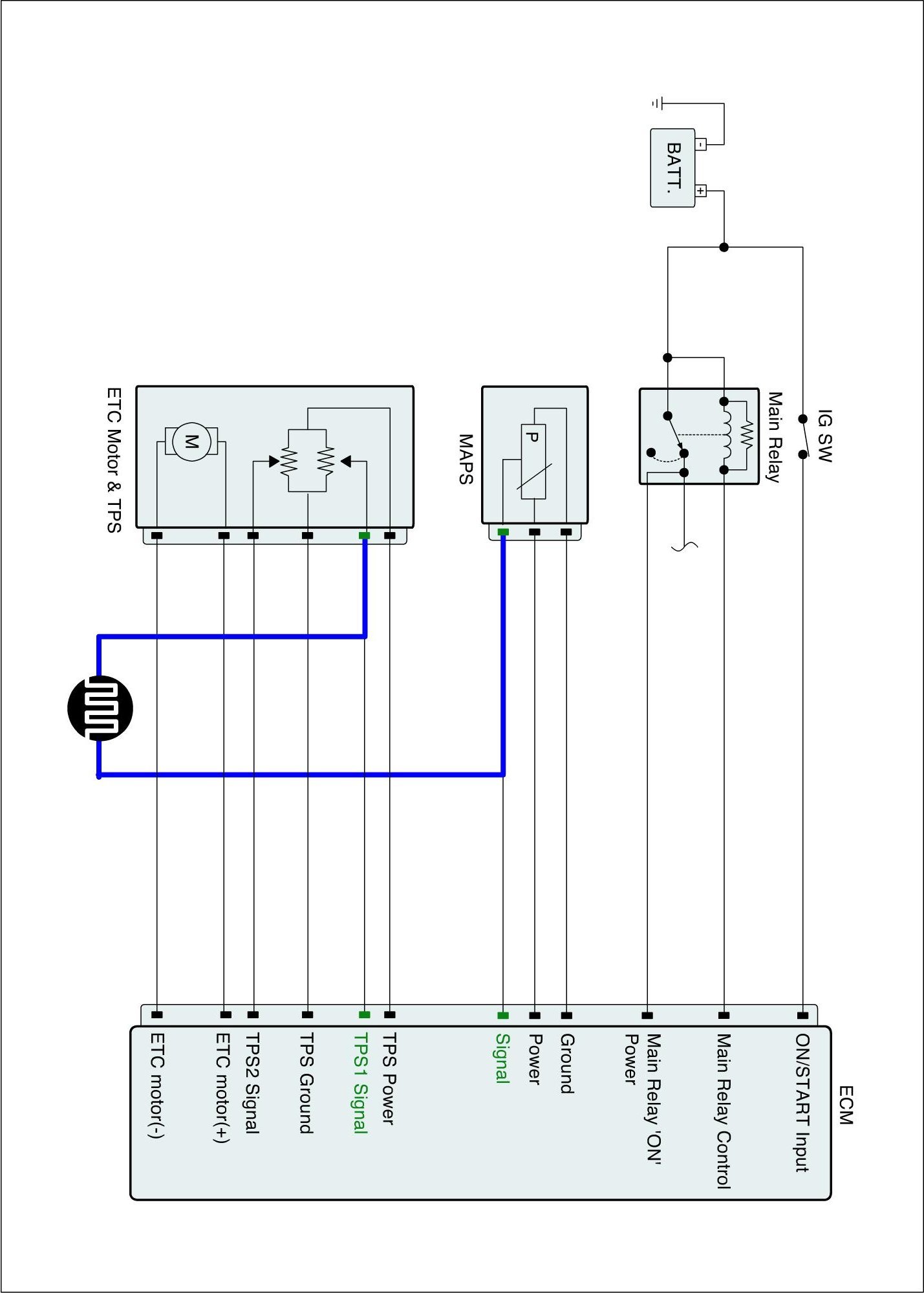

2. Connect probe to MAPS and TPS to check signal waveform by using oscilloscope function.
3. ENG "ON" and monitor signal waveform during acceleration and deceleration.

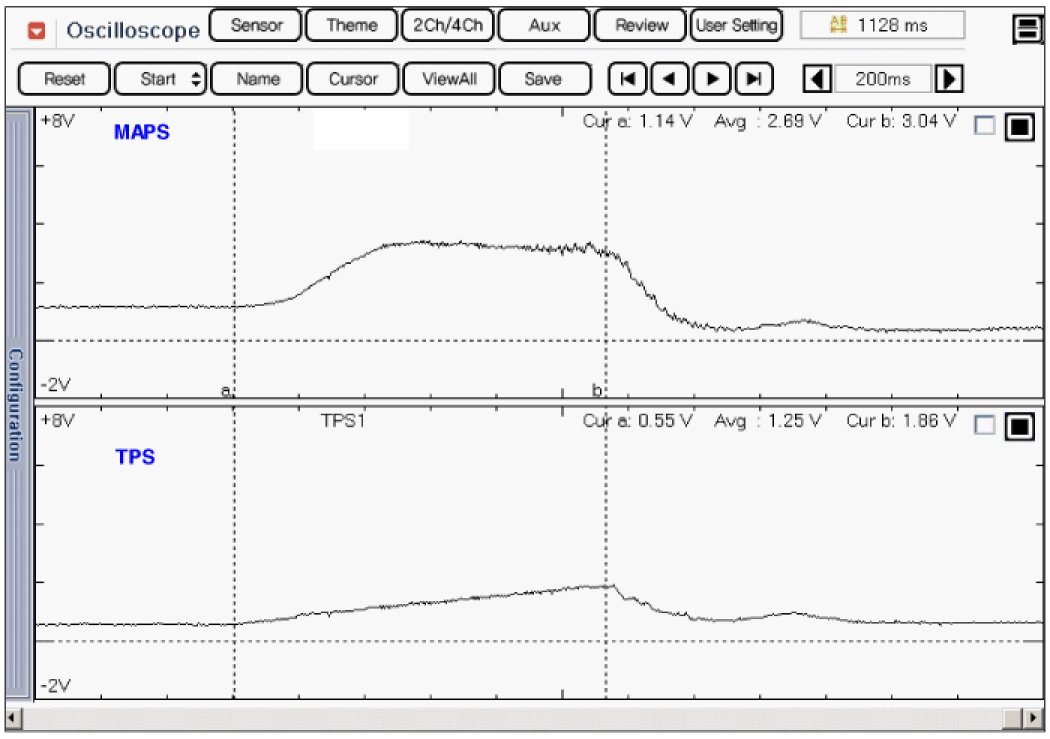

Specification : Signal waveform will be displayed as follows.

















4. Is the relationship between the MAP and the TPS correct?
